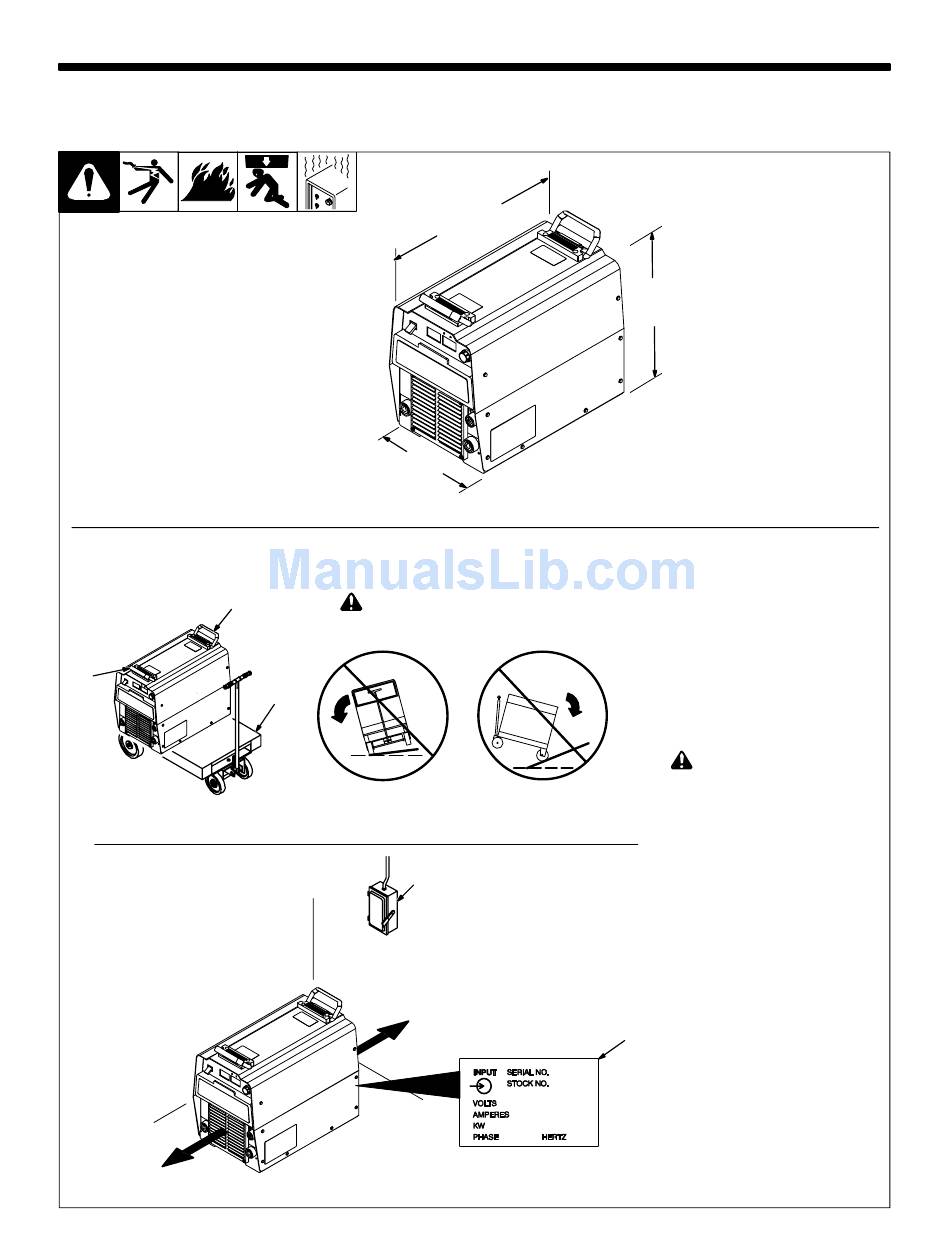

4-1. Selecting A Location
Dimensions And Weight
76 lb (34.6 kg)
Movement
1
1
Location
18 in
(460 mm)
SECTION 4 − INSTALLATION
12-1/2 in
(318 mm)
!
Do not move or operate unit
where it could tip.
2
4
18 in
(460 mm)
24 in
(610 mm)
17 in
(432 mm)
1
Lifting Handles
Use handles to lift unit.
2
Hand Cart
Use cart or similar device to move
unit.
3
Rating Label
Use rating label to determine input
power needs.
4
Line Disconnect Device
Locate unit near correct input
power supply.
!
Special installation may be
required where gasoline or
volatile liquids are present −
see NEC Article 511 or CEC
Section 20.
3
loc_2 3/96 - Ref. ST-151 556 / ST-802 167
OM-188 304 Page 13
