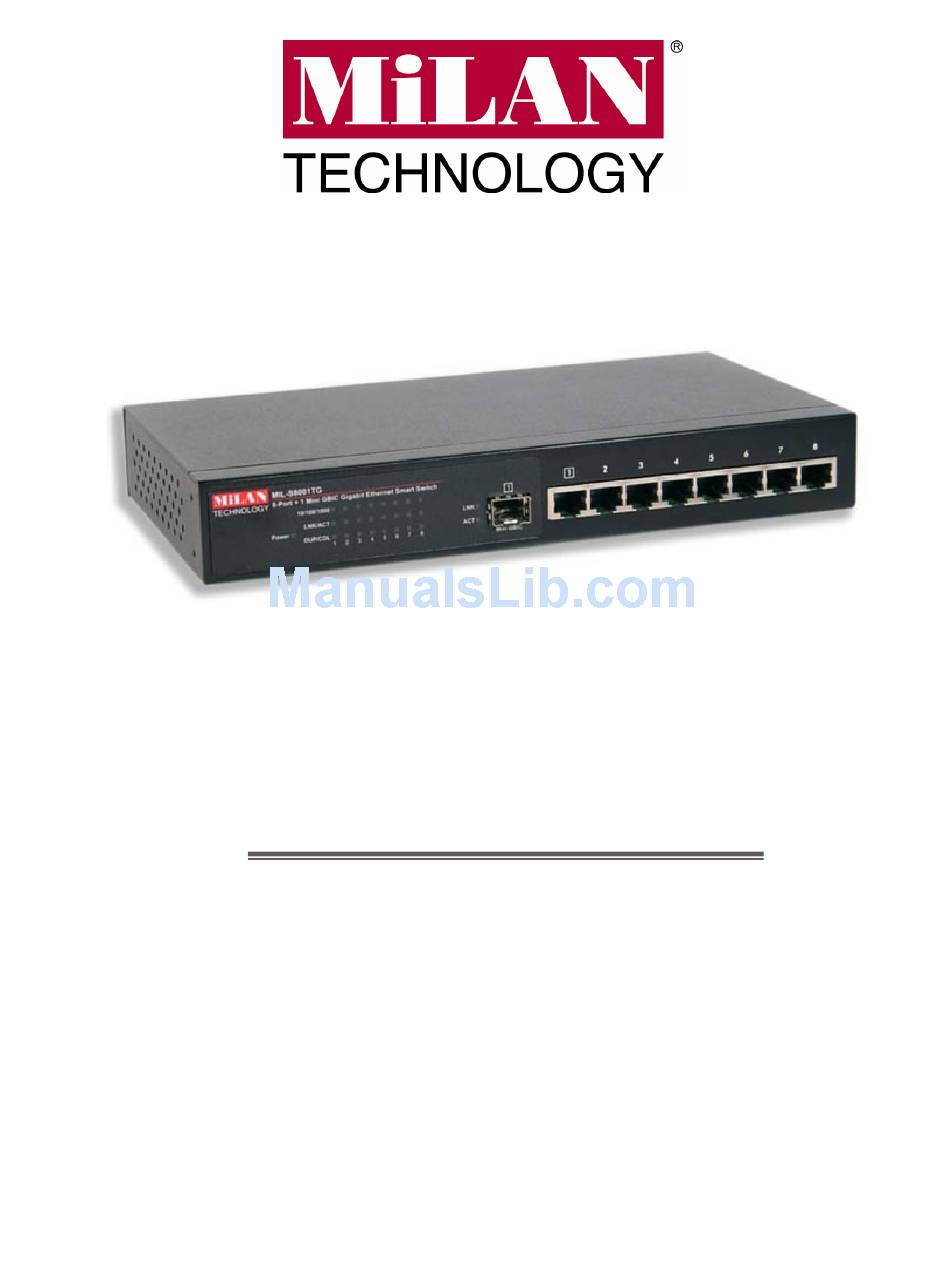

8-Port 10/100/1000 + 1 MiniGBIC Gigabit
Ethernet Smart Workgroup Switch
MIL-S8001TG

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIL-S8001TG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MiLAN MIL-S8001TG

Summary of Contents for MiLAN MIL-S8001TG

  • Page 1: User Guide

    8-Port 10/100/1000 + 1 MiniGBIC Gigabit Ethernet Smart Workgroup Switch MIL-S8001TG User Guide...
  • Page 2 In no event shall MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction Features Software Features Package Contents Ethernet Switching Technology Management Methods 2. Hardware Description Front Panel LED Indicators Rear Panel Desktop Installation Attaching Rubber Feet Power On 3. Network Application Small Workgroup Segment Bridge 4. Console Management Connecting a Terminal or PC to the Console Port 4-1.
  • Page 4 4-4. Broadcast Storm Suppression 4-5. Restore to Default 4-6. Reset System 5. Troubleshooting 6. Technical Specifications...

  • Page 5: Introduction

    Introduction The MIL-S8001TG switch is a multi-port switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high-speed networking. The switch is targeted at workgroup, department or backbone computing environments.

  • Page 6: Features

    Features Conforms to IEEE 802.3 10BASE-T,IEEE 802.3u 100BASE-TX,IEEE 802.3ab 1000BASE-T,IEEE 802.3z gigabit fiber and IEEE 802.3x 8 x 10/100/1000 Base-TX RJ-45 ports 1 MINI GBIC socket for MINI GBIC Fiber transceiver Auto-MDIX on all ports and N-Way Auto-Negotiation 16 Gbps back-plane Quality of service (QoS) supported IEEE802.3x Flow control Back pressure half duplex (10/100Mbps)

  • Page 7: Software Features

    VLAN Priority Queue Broadcast Storm filter Package Contents Unpack the contents of the package and verify them against the checklist below. MIL-S8001TG Switch Power Cord Four Rubber Feet RS-232 cable User Guide Warranty Card If any item is missing or damaged, please contact your local dealer for service.

  • Page 8: Ethernet Switching Technology

    This revolutionized networking. First, by allowing two-way, simultaneous transmissions over the same port (Full-duplex), which essentially doubled the bandwidth. Second, by reducing the collision domain to a single switch-port, which eliminated the need for carrier sensing. Third, by using the store-and-forward technology’s approach of inspecting each packet to intercept...

  • Page 9: Management Methods

    Management Methods The MIL-S8001TG switch series supports Console Management methods Console Management is done through the RS-232 Console Port. Managing the switch in this method requires a direct connection between a PC and the switch.

  • Page 10: Hardware Description

    Hardware Description Front Panel The Front Panel of the MIL-S8001TG switch consists of eight 10/100/1000Base-TX RJ-45 ports, one MINI GBIC slot, one LED-Indicator for Power, three LED-Indicators (100/1000, LNK/ACT, FDX/COL) for each UTP port, and two LED-Indicators (LNK/ACT) for the Mini-GBIC slot.

  • Page 12: Led Indicators

    LED Indicators The LED Indicators give real-time information of systematic operation status. The following table provides descriptions of LED statuses and their meaning. Status Power 100/1000 LNK /ACT Blinks Figure 2-2. LED Indicators Color Description Green Power On The port is operating at the speed of Green 1000Mbps.
  • Page 13 Blinks FDX /COL LNK (MINI GBIC) ACT (MINI Blinks GBIC) Table 2-1. Description of LED Indicators The port is operating in Full-duplex Orange mode. Collision of Packets is occurring in Orange the port. The port is operating in Half-duplex mode or no device attached. The port is successfully connecting Green with the device.

  • Page 14: Rear Panel

    Rear Panel The 3-pronged power plug and console port are located at the rear panel of the MIL-S8001TG as shown in Figure 2-3. The switch will work with AC in the range 100-240V AC, 50-60Hz. Figure 2-3. The Rear Panel of MIL-S8001TG switch Desktop Installation Set the switch on a sufficiently large flat space with a power outlet nearby.

  • Page 15: Power On

    Power On Connect the power cord to the power socket on the rear panel of the switch. Connect the other end of the cord to an appropriate power outlet. The internal power supply in the switch works with AC in the voltage range of 100-240VAC and frequency 50~60Hz.

  • Page 16: Network Application

    220 or 550 meters (multi-mode fiber) or 60 kilometers (single-mode fiber). Small Workgroup The MIL-S8001TG switch can be used as a standalone switch to which personal computers, servers, and printer servers are directly connected to form a small workgroup.

  • Page 17: Segment Bridge

    Segment Bridge For enterprise networks where large data broadcasts are constantly processed, this switch is an ideal solution for department users to connect to the corporate backbone. In the illustration below, two Ethernet switches with PCs, print server, and local server attached, are both connect to the switch.

  • Page 18: Console Management

    Console Management Connecting a Terminal or PC to the Console Port Console management involves the administration of the switch via a direct connection to the RS-232 console port. This port is a female DB-9 connector. From the main menu of the console program, the user has access to manage the functions of the switch.
  • Page 19 After the connection between the Switch and PC is finished, turn on the PC and run a terminal emulation program or Hyper Terminal and configure its communication parameters to match the following default characteristics of the console port: Baud Rate: 9600 bps...

  • Page 20: Main Menu

    4-1. Main Menu There are five items for selection as follows. VLAN Mode: Configure the VLAN function. QOS Control: Configure the QoS function. Broadcast Storm Suppression: Enable or disable Broadcast Storm filtering function. Restore to Default: Set the system to the default value settings. Reset System: Restart the system.

  • Page 21: Vlan Mode

    4-2. VLAN Mode Select VLAN Mode to access the VLAN configuration menu. The system supports two VLAN modes – 802.1Q and Port-Based VLAN. At the Main Menu command prompt, type “v” or “V” to enter the VLAN Mode configuration interface. Previous Menu: Enter “q”...

  • Page 22: 802.1Q Vlan Configuration

    4-2-1. 802.1Q VLAN Configuration After selecting VLAN mode from the Main Menu, enter the 802.1Q VLAN configuration interface by entering "8" at the command prompt. Previous Menu: Enter “q” or “Q” and the command prompt to exit the current interface.

  • Page 23: Enabling 802.1Q Vlan

    4-2-1-1. Enabling 802.1Q VLAN Prior to configuring 802.1Q VLAN, the 802.1Q VLAN function must be enabled. Enter “e” or “E” at the 802.1Q VLAN menu command prompt to enable the 802.1Q VLAN function. To disable the 802.1Q VLAN function, enter “d” or “D” at the command prompt.

  • Page 24: Vlan Configuration

    4-2-1-2. VLAN Configuration The Port VID can be configured for each port. Enter “v” or “V” at the 802.1Q VLAN command prompt to the access the VLAN configuration interface. Enter the port number to be configured. Next, enter the PVID number to be assigned to the selected port.

  • Page 25: Create Vlan Group

    4-2-1-3. Create VLAN Group Enter “c” or “C” at the command prompt to access the Create VLAN Group configuration interface. VLAN group ID: Enter the VLAN Group ID at the prompt. Add VLAN group member: Enter “m” or “M” at the command prompt to add the port to the VLAN group, use the command “+port number”...
  • Page 26 Tag/Untagged Setting: Enter “t” or “T” at the VLAN Configure command prompt to enter Tag/Untagged Setting configuration interface. Use the command “+port number” to set the port as the Tagged status. Use the command “-port number” to set the port to the Untagged status. After configuration, enter command “q”...

  • Page 27: Vlan Status

    4-2-1-4. VLAN Status VLAN Group Information can be viewed by entering “s” or “S” at the 802.1Q VLAN menu command prompt to access the VLAN Status interface. Enter the VLAN group ID to display the VLAN status. Previous Menu: Enter “q” or “Q” and the command prompt to exit the current interface.

  • Page 28: Port-Based Vlan Configuration

    4-2-2. Port-Based VLAN Configuration At the VLAN mode menu interface, enter “p” or “P” at the command prompt to access the Port-Based VLAN mode configuration interface. Previous Menu: Enter “q” or “Q” and the command prompt to exit the current interface.

  • Page 29: Port-Based Vlan Group Configuration

    4-2-2-1. Port-Based VLAN Group Configuration A maximum of 8 VLAN groups can be configured. The default VLAN group is VLAN 1. 1. Enter the group number to configure a VLAN group. For example: enter “1” for VLAN group 1. 2. To add a port to a VLAN group, use the command “+port number” to add the port or enter “+A”...

  • Page 30: Qos Control

    4-3. QoS Control Select QoS Control to access the QoS configuration menu. The system supports two methods of QoS control – Port-Based and 802.1P/TOS. From the Main Menu, enter "q" or "Q" to select QoS Control to enable or disable the Qos function and set the high/low queue priority ratio. Port-Based Enable: Enter “p”...
  • Page 31 Priority ID Map: To configure the QoS control high/low weight setting, enter “m” or “M” at the command prompt. Next, enter the selection number, for port priority setting. There are four-priority levels – High, Middle, Low, and Lowest priority level. High Priority: Enter "h"...
  • Page 32 Priority ID Map Status: To display the current priority level setting for each port, enter “s” or “S” at the command propmt. If the priority level is not configured, the priority IP mapping will be undefined. Restore to Default: Enter “r” or “R” at the command prompt to return the QoS control values back to their defaults.

  • Page 33: Broadcast Storm Suppression

    4-4. Broadcast Storm Suppression Enable or disable the Broadcast storm function. In the main menu command prompt, enter command ”b” or “B” to enter the Broadcast Storm Suppression configuration interface. In the command prompt sign, enter command “e” or “E” to enable the broadcast storm function.

  • Page 34: Restore To Default

    4-5. Restore to Default Enter “d” or “D” at the main menu command prompt to return the system to the default values. 4-6. Reset System Enter “r” or “R” at the main menu command prompt to restart the system. Note: The current configuration will remain after the system has been restarted.

  • Page 35: Incorrect Connections

    MIL-S8001TG switch. Incorrect connections The switch port can auto detect straight or crossover cable when you link switch with other Ethernet device. For the RJ-45 connector should use correct UTP or STP cable, 10/100Mbps port use 2 pairs twisted cable and Gigabit 1000T port use 4 pairs twisted cable.

  • Page 36: Improper Network Topologies

    If the power indicator does turn on when the power cord is plugged in, you may have a problem with the power outlet or power cord. However, if the switch powers off after running for a while check for loose power connections, power losses or surges at power outlet.

  • Page 37: Technical Specifications

    Technical Specifications This section provides the specifications of the MIL-S8001TG switch product. Standard Protocol Technology Transfer Rate LED Indicators Connector IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Copper IEEE 802.3z Gigabit fiber IEEE802.3x Flow Control and Back-pressure IEEE802.1p Quality of Service...
  • Page 38 MINI GBIC: 3.3V MINI GBIC slot shared with port #1 Back-plane 16Gbps MAC address 4K Mac with Auto Learning Memory 1.5Mbits for packet buffer Dimensions 250mm x 132mm x 37mm (L x W x H) Input: AC 100-240V, 50/60Hz Power Supply Output: 5V/4A (internal) Power 22 Watt (maximum)
  • Page 39 Rev A...
