8-Port Gigabit Switch MIL-S8000G User Guide Eight Auto-negotiation 10/100/1000Mbps Gigabit Ethernet RJ-45 Ports. Each port with Auto MDI/MDIX. - Page 2 - EN60950 (IEC950) - Product Safety MiLAN Technology warrants to the original consumer or purchaser that each of its product and component thereof, will be free from defects in material and/or workmanship for a period of five years from the original factory shipment date.
-
Page 3: Table Of Contents
4. Network Application Backbone Switch 5. Network Configuration Login to the Console Interface 5.1 Port Status 5.2 Port Configuration 5.3 Mirror Configuration 5.4 VLAN Configuration 5.5 VLAN Setup 5.6 Trunk Configuration 5.7 Miscellaneous Configuration 6. Troubleshooting 7. MIL-S8000G Technical Specifications... -
Page 4: Introduction
The MIL-S8000G, an 8-Port Gigabit switch, is an ideal solution for solving traffic block at the core of the network. It offers eight auto-negotiation 10/100/1000Base-T Gigabit Ethernet ports that can significantly improve your network’s backbone performance. -
Page 5: Package Contents
MIL-S8000G 8 port Gigabit switch Power Cord Four Adhesive Rubber Feet User’s Manual Warranty Card Compare the contents of your MIL-S8000G package with the standard checklist above. If any item is missing or damaged, please contact your local dealer for service. -
Page 6: Hardware Description

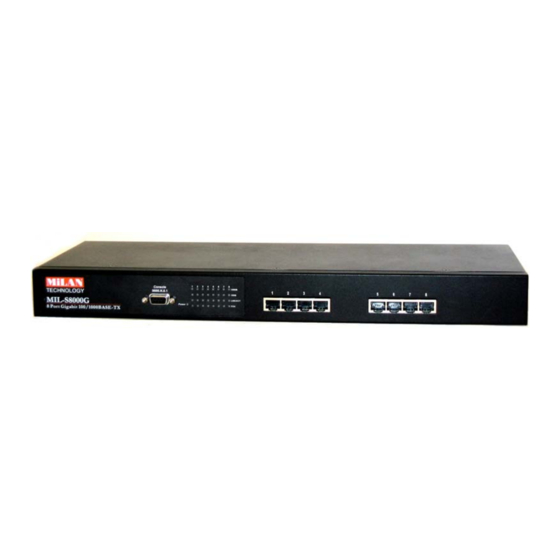

2. Hardware Description Front Panel The Front Panel of the 8-Port Gigabit Switch consists of eight auto- negotiation 10/100/1000Mbps Ethernet RJ-45 connectors, supporting automatic MDI/MDIX, and four LED-indicators (1000M, 100M, LK/ACT, FUL/COL) for each Gigabit port. Console Port Figure 2-1. The Front Panel of the 8-Port Gigabit Switch RJ-45 Ports ( Auto MDI/MDIX ): Eight auto-negotiation 10/100/1000Mbps Ethernet RJ-45 connectors. -
Page 7: Status Description
The 3-pronged power plug and ventilation fan are located at the rear panel. The switch will work with AC in the range 100-240V AC, 50-60Hz. The rear panel of the MIL-S8000G Gigabit switch is shown below. Figure 2-3. The Rear Panel of the MIL-S8000G Switch... -
Page 8: Attaching Rubber Feet
C. Apply the rubber feet to each corner on the bottom of the switch. These footpads can prevent the switch from shock/vibration. Rack-mounted Installation The MIL-S8000G includes a rack-mounted kit that allows it to be mounted in an EIA standard size, 19-inch Rack. Perform the following steps to rack mount the switch: A. -
Page 9: Power On
Secure the switch to the rack with a screwdriver and the rack-mounting screws. Figure 3-3. Mounting the MIL-S8000G in an EIA standard 19-inch Rack Note: For proper ventilation, allow at least 4 inches (10 cm) of clearance on the front and 3.4 inches (8 cm) on the back of the switch. -
Page 10: Network Application
Backbone Switch The MIL-S8000G Switch is an ideal solution for enterprise networks where large data broadcasts are constantly processed. All ports can be connected to departmental switches, and the departmental switches can be connected to the MIL-S8000G Switch. - Page 11 Workgroup A Workgroup B Figure 4-1. An example of a network connection, with the MIL-S8000G Switch acting as the core switch. This switch is an ideal solution for backbone connectivity. In the above example, servers, department switches, and workstations are directly...
-
Page 12: Network Configuration
5. Network Configuration The Console port is a female DB-9 connector that enables a connection to a PC or terminal for monitoring and configuring the MIL-S8000G Switch. Use the supplied RS-232 cable with a male DB-9 connector to connect a terminal or PC to the Console port. -
Page 13: Login To The Console Interface
Login to the Console Interface When the connection between Switch and PC is finished, turn on the PC and run a terminal emulation program or Hyper Terminal. Configure the communication parameters to match the following default characteristics of the console port:... -
Page 14: Port Configuration
5.2 Port Configuration Figure 5-4. The Port Configuration menu Select each port to change the status, toggle the Enable / Disable field and enter the appropriate value in the Flow Control field. -
Page 15: Mirror Configuration
5.3 Mirror Configuration Figure 5-5. The Device Configuration Setup menu Figure 5-6. The Device Configuration Setup menu By enabling port mirroring, the source port will be forwarded to the target port. Select either Enable or Disable by using the <Backspace> key. -
Page 16: Vlan Configuration
5.4 VLAN Configuration Figure 5-7. The VLAN Configuration menu Assigning physical ports within a work group is a simple and common method of defining a virtual work group – VLAN. It delivers the benefit of broadcast control and simplifies configuration for the network manager. One advantage of the Port-Based VLAN is its simplicity and ease of configuration. -
Page 17: Vlan Setup
5.5 VLAN Setup Figure 5-8. The VLAN Setup menu Select the VLAN entry to Enable or Disable the VLAN group. Use the <Backspace> key to Enable (add) or Disable (remove) ports in the VLAN group. 5.6 Trunk Configuration Figure 5-9. The Trunk Configuration menu Multiple links between switches can be grouped or trunked to work as one virtual, aggregate link. -
Page 18: Miscellaneous Configuration
5.7 Miscellaneous Configuration Figure 5-10. The Misc. Configuration menu Select each port to change the status, toggle the Enable / Disable field and enter the appropriate value in the Aging Time field. -
Page 19: Troubleshooting
6. Troubleshooting This troubleshooting section is intended to help solve many common problems that might occur when installing the MIL-S8000G. The switch can be easily monitored through panel indicators to assist in identifying problems. Power If the power indicator does not light up when the power cord is plugged in, you may have a problem with the power outlet or power cord. -
Page 20: Mil-S8000G Technical Specifications
7. MIL-S8000G Technical Specifications Standards IEEE 802.3 10Base-T Ethernet Compliance IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet ANSI/IEEE 802.3 Auto-negotiation Protocol CSMA/CD Max Forwarding and 14,880 pps per Ethernet port 148,800 pps per Fast Ethernet port Max Filtering Rate... - Page 22 Part No. 90000404_A...
