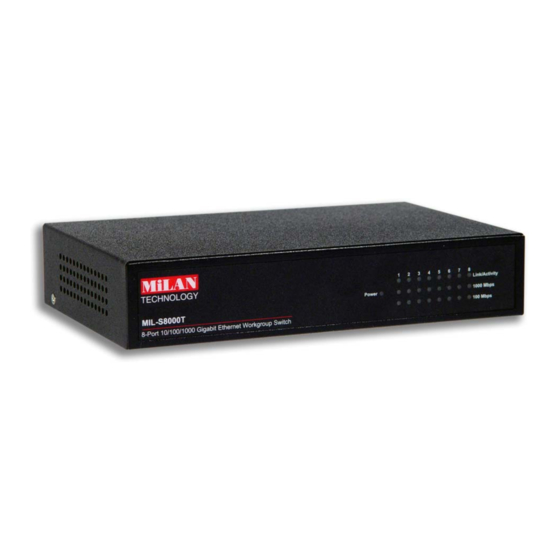

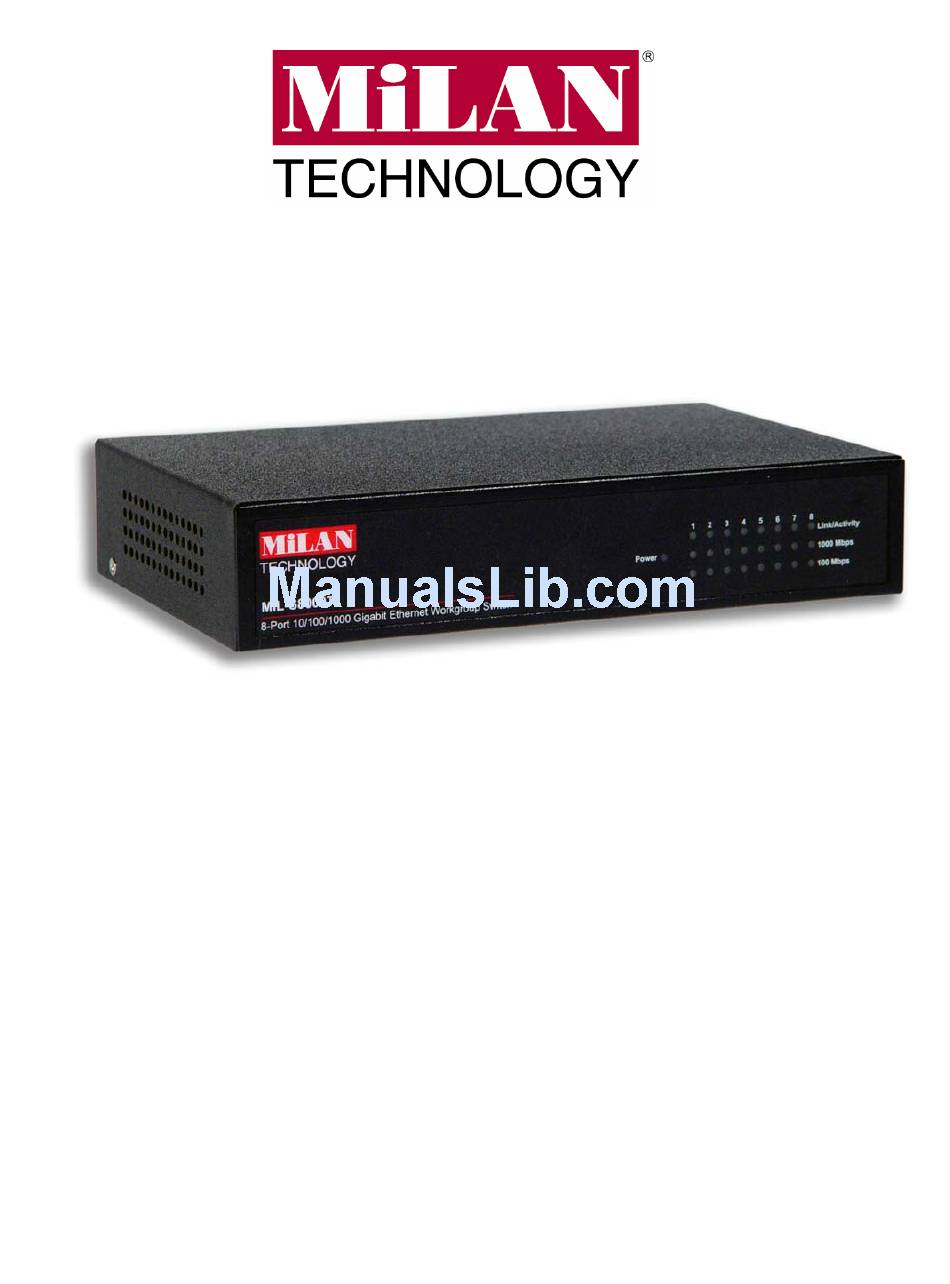

- Page 1 MIL-S8000T 8-Port 1000BASE-T Gigabit Ethernet Switch USER GUIDE...
- Page 2 In no event shall MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction Gigabit Ethernet Technology Switching Technology Features Package Contents 2. Hardware Description Front Panel Rear Panel LED Indicators 3. Hardware Installation Desktop Installation Power On 4. Technical Specifications General Specifications Physical and Environmental Specifications Performance Specifications Appendix A: Regulatory Information... -
Page 4: Introduction
Introduction Gigabit Ethernet Technology Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet structure, format, and support for CSMA/CD protocol, full duplex, flow control, and management objects, but with a tenfold increase in theoretical throughput over 100-Mbps Fast Ethernet and a hundredfold increase over 10-Mbps Ethernet. -
Page 5: Features
to users on a local area network. A switch increases capacity and decreases network loading by making it possible for a local area network to be divided into different segments which do not compete with each other for network transmission capacity, giving a decreased load on each. -
Page 6: Package Contents
Package Contents Unpack the contents of the package and verify them against the checklist below. MIL-S8000T Gigabit Ethernet Switch External Power Adapter Four Adhesive Rubber Feet User's Guide Warranty Card If any item is missing or damaged, please contact your local dealer for service. -
Page 7: Hardware Description
Hardware Description Front Panel The front panel of the Gigabit Ethernet Switch consists of LED Indicators, which display the conditions of the Gigabit Ethernet Switch and the status of the network. Figure 2-1. Front Panel view of the MIL-S8000T Gigabit Ethernet Switch Rear Panel The rear panel of the Gigabit Ethernet Switch consists of eight Gigabit Ethernet ports with 10/100/1000Mbps Auto-Negotiation and the DC power connecter. -
Page 8: Led Indicators
LED Indicators The LED indicators of the Gigabit Ethernet Switch provide a real-time indication of system operating statuses. There are three LED-indicators for each Gigabit Ethernet port and one Power LED for the Unit. POWER The Power LED indicator is solid green when the Gigabit Ethernet Switch is receiving power. -
Page 9: Hardware Installation
Hardware Installation Desktop Installation Install the MIL-S8000T Gigabit Ethernet Switch in a location that conforms to the acceptable operation temperature and humidity ranges (see Technical Specifications). It is recommended that the site be free from strong electromagnetic source, vibration, dust, and direct sunlight. A minimum of 10cm of space on the left and right hand side of the Switch is required for ventilation purposes. -
Page 10: Technical Specifications
Technical Specifications General Specifications Standards: IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3 10BASE-T IEEE 802.3x Flow Control Protocol: CSMA/CD Data Transfer Rate: Ethernet: 10Mbps (Half-duplex) 20Mbps (Full-duplex) Fast Ethernet: 100Mbps (Half-duplex) 200Mbps (Full-duplex) G igabit Ethernet: 2000Mbps (Full-duplex) Topology: Star Network Cables: Ethernet:... -
Page 11: Performance Specifications
Performance Specifications Transmission Store-and-forward Method: RAM Buffer: 256K Bytes per device Filtering Address 8K MAC address per device Table: Packet Filtering/Forwarding Full wire speed Rate: MAC Address Self-learning, auto-aging Learning:... -
Page 12: Appendix A: Regulatory Information
Appendix A: Regulatory Information FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 13 90000426 Rev A...
