Summary of Contents for MiLAN MIL-S3570

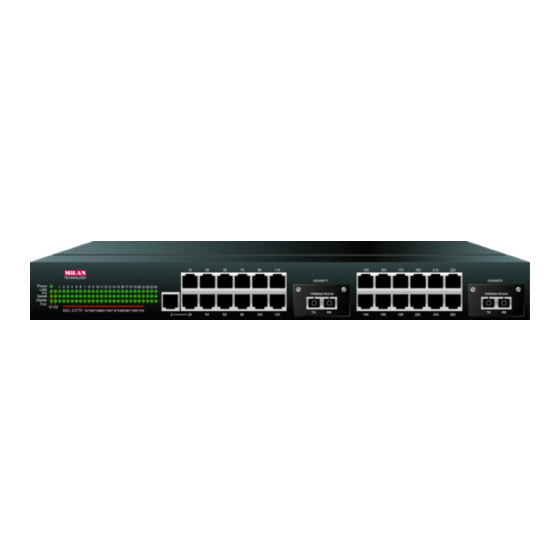

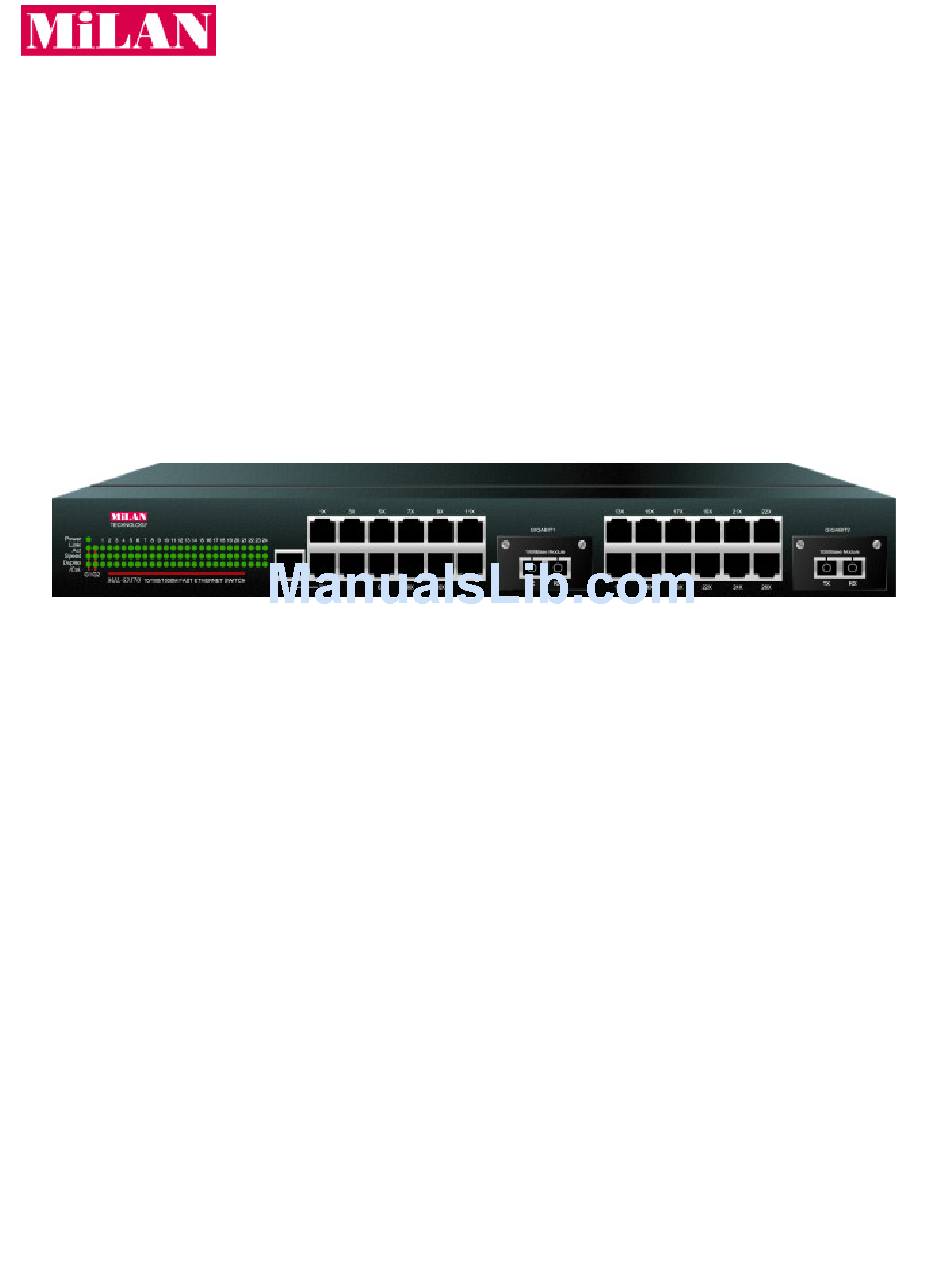

- Page 1 TECHNOLOGY MIL-S3570 24-Port Fast Ethernet Switch with Gigabit Uplinks INSTALLATION GUIDE...
- Page 2 - EN61000-X - Electromagnetic Immunity - EN60950 (IEC950) - Product Safety MiLAN Technology warrants to the original consumer or purchaser that each of it's products, and all components thereof, will be free from defects in material and/or workmanship for a period of five years from the original factory shipment date.
-
Page 3: Table Of Contents
1. Introduction 1.1 Features 1.2 Specifications 2. Installing the Switch 2.1 Packing List 2.2 Panels 2.3 Mounting the Switches 3. Making Network Connections 3.1 Network Switched Ports 3.2 10/100BASE-TX Fast Ethernet Ports 3.3 Gigabit Ethernet Slots 3.4 Making Trunk Connections 3.5 Virtual LAN (VLAN) -
Page 4: Introduction
Ethernet and Fast Ethernet network. The switch comes with 24 10/100 Fast Ethernet switched ports, each capable of transferring information simultaneously at full wire speed to control and allocate the net work bandwidth. -
Page 5: Features
1.1 Features Designed for resolving congestion problems caused by bandwidth-hungry devices and bandwidth-intensive applications as well as a high number of users, the switches not only adhere to the IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, and IEEE 802.3z 1000BASE-X standards, but also feature: High port-count of 10/100BASE-TX auto-negotiation switched ports for flexible connections to desk •... -
Page 6: Specifications
1.2 Specifications Standard Network ports Console port Cables Unit LED TP Port LED Filtering rate Forwarding rate Filtering address MAC addresses RAM buffer Environment Power IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-X IEEE 802.3ad Port trunking IEEE 802.3x Full duplex flow control IEEE 802.1D Spanning tree IEEE 802.1Q Tagged VLAN IEEE 802.1P/Q GARP/GVRP... -
Page 7: Installing The Switch
It also features an auto-select 100-240V, 50/60Hz power supply unit, which works in most countries around the world. Before connecting the supplied power cord into the switch, check to see that the cord voltage and current rating conform to the standards of the country of operation. -
Page 8: Mounting The Switches
Rack Mounting For mounting the switch into a 19-inch rack, a pair of mounting brackets is included in the pack. Install the switch into a 19-inch rack as illustrated in the following figure:... -
Page 9: Making Network Connections
3. Making Network Connections 3.1 Network Switched Ports The following figure illustrates the switched ports provided on the front panel. The switch comes with 24 10/100BASE-TX Fast Ethernet switched ports and two Gigabit Ethernet slots for Gigabit Ethernet modules. The following table lists the connectors provided on each network ports:... -
Page 10: 10/100Base-Tx Fast Ethernet Ports
3.2 10/100BASE-TX Fast Ethernet Ports The switch can support connections to the following devices: • 10BASE-T or 10/100BASE-TX network cards • 10BASE-T hub ports • 100BASE-TX hub ports • 10/100BASE-TX dual speed hub ports • 10/100BASE-TX switch ports Auto-negotiation Capable The ports support auto-negotiation function when establishing a link connection with any auto-negotiation capable device. - Page 11 UTP Cable Connections When making a connection to another device using straight-through UTP cable, make sure MDI-X to MDI connection rule is followed. The following figure illustrates the pin assignments of a straight-through UTP and a crossover UTP cable: It is suggested to use straight-through UTP cables for all UTP connections. The maximum length and UTP cable categories used for the connections to a 10BASE-T device and 100BASE-TX device are: CONNECTED DEVICE 10BASE-T device...
-
Page 12: Gigabit Ethernet Slots
3.3 Gigabit Ethernet Slots Each Gigabit Ethernet slot can accommodate one optional Gigabit Ethernet module for your Gigabit connection. The following modules are available for selection: Module Wavelength MIL-L3573SX 850 nm MIL-L3574SX 850 nm Module Outline The following figure illustrates two examples of Gigabit modules. Different types of modules are mounted with different fiber connectors Connector type MT-RJ... - Page 13 MM 50/125 micron meters, 62.5/125micron meters recommended Fiber cable Module Installation 1. Turn off the power to the switch unit. 2. Open the cover of Gigabit slot. 3. Insert the module into slot until it is seated properly. 4. Screw the module onto the chassis securely.
-
Page 14: Making Trunk Connections
The following figure illustrates an example of 4-port trunk connection between switch A and switch B. The Port 3, 4, 5 and 6 of switch A are configured as trunking ports and compose one trunk. The Port 5, 6, 7, and 8 of switch B are configured as trunking ports and compose one trunk. The aggregated band width of the trunk is 800Mbps. - Page 15 The following figure illustrates a typical example of trunk connections between more than two switch units. Each trunk is a 2-port trunk. There are four trunks existing in this example. Each has 400Mbps bandwidth. The top switch is con- figured to have four trunks and is cascaded to four lower switch units.
-
Page 16: Virtual Lan (Vlan)
3.5 Virtual LAN (VLAN) Each port of the switch unit connects to one individual LAN segment. There can be many Ethernet nodes located on each segment. The switch performs network data forwarding between different LAN segments. It allows Ethernet nodes located on different segments to communicate with each other. Basically, all Ethernet nodes are in one single LAN. -
Page 17: Led Indicators
4. LED Indicators 4.1 LED Panels The switch provides comprehensive LED indicators for diagnosing and monitoring the operation of the unit as illustrated below: 4.2 Interpretation Power LED: indicates the status of the power supplied to the switch. Link/Act. LED: indicates the port cable link and traffic activity. -
Page 18: Performing Network Management
5. Performing Network Management 5.1 Management Support The switch is featured with management functions and can be managed by using the following methods: · Direct console connection over an RS232 cable · Web browser software from Internet or Intranet over TCP/IP network ·... -
Page 19: Management Objects
5.2 Management objects The following table lists the management objects supported by the system: Login Basic Management Activities General Management Configuration • - system parameters LAN Port Configuration • - speed, link type, duplex, flow control Console Port Configuration • - console baud rate, flow control, modem control Advanced Management Activities Switching Database Configuration... -
Page 20: Setting Ip Address
5.3.2 Console Login When you log on to the switch console port for the first time, a sign-on string appears and you are prompted for a console login name and password. The factory default login name is admin and password is 123456. -
Page 21: Web Management
Note: The TFTP protocol is used to download updated software to the switch. A VLAN with the proper IP address and routing path to the TFTP server must be configured for the switch to access the specified TFTP server. TFTP is an embedded function supported in the DOS window of any Windows NT system. -
Page 22: Support
The detailed operation guides for all management functions are available in the software operation manual in the supplied CD-ROM. However, more features may be included into future new software upgrade. Contact the dealer where you purchased the switch for the availability of new software and/or technical support. - Page 23 TECHNOLOGY A Division of Digi International...
