O N E - W A Y F M A U T O M A T I C / M A N U A L
T R A N S M I S S I O N R E M O T E S T A R T E R
PS-3655EFM
INDUSTRY CANADA USER NOTICE:
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to
this equipment. Such modifications could void the user's authority to operate the equipment
Doc#: 110912
Rev:1.1
User Guide
It is the responsibility of the vehicle operator to ensure their vehicle
is parked in a safe and responsible manner.
1. a) Manual transmission: When leaving the vehicle, it is the user's
responsibility to ensure that the gearshift lever is in the NEUTRAL
position and the parking brake is engaged in order to avoid accidents
upon remote starting.
b) Automatic transmission: When leaving the vehicle, it is the user's
responsibility to ensure that the gearshift lever is in "Park" in order to
avoid accidents upon remote starting.
(Note: Make sure that the automatic vehicle cannot start in "Drive".)
2. It is the user's responsibility to ensure that the remote starter is
disabled or put into valet mode before servicing.
Designed & engineered in Canada
© 2011
WARNING!
- PS-3655EFM -
- FcN -
Canada
Advertisement
Table of Contents
Related Manuals for Directed PS-3655EFM
Summary of Contents for Directed PS-3655EFM
- Page 1 NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment Doc#: 110912 Rev:1.1 © 2011 - PS-3655EFM - - FcN - Canada...
-
Page 2: Table Of Contents
Table of Contents Government regulations ........................4 Introduction with SmartStart™ ..................... 4 Using the Remote Control ....................... 5 Vehicle Presets ..........................5 Heater ............................5 Windshield Wipers & Radio & Headlights ..................5 Arming and disarming the starter kill (if installed) ............... 5 ... - Page 3 What is EncryptR™ Technology? EncryptR™ employs proprietary encryption software that sends unique codes from the remote starter to the ADS-TB or ADS-AL-CA bypass module that cannot be replicated or reversed with hi-tech equipment. The EncryptR™ communication exchanged between the remote starter and the ADS bypass module is best described as a “secret handshake”...
-
Page 4: Government Regulations
. Note: SmartStart™ must be professionally installed. For more information, see your nearest authorised Directed Canada dealer. With many advanced functions, this product will satisfy any one of your expectations from high-end commodity and security systems, without neglecting any standard feature commonly offered by entry-level starters. -
Page 5: Using The Remote Control

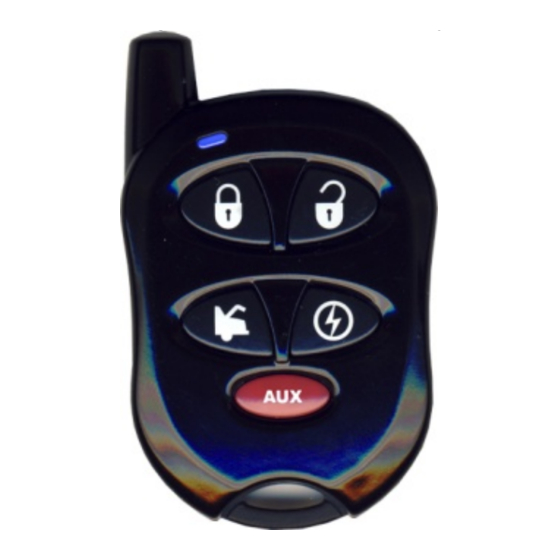

Using the Remote Control Your Remote Car Starter is equipped with a 5-button multi-channel remote control. It can operate two independent vehicles equipped with a Remote Car Starter (see Multi-Car Operation page 13, later in this Guide, for second-car transmitter functions). The functions of the transmitter are as follows: LOCK: Locks the DOORS and arms the STARTER KILL (if installed).. -
Page 6: Remote-Starting Your Vehicle
Note: If the Starter Kill is installed, the vehicle will benefit from a protection against starter motor damage that could occur after remote-starting the engine should the user, by force of habit, turn the ignition key to the CRANK position. The Starter Kill (if installed) can be configured by the installer either to Passive Mode (so as to arm automatically) or Active Mode (so as to require the user’s intervention for arming). -
Page 7: Remote-Starting
Once the system is set to Ready Mode, the vehicle can be remote started and stopped at any time. The system will exit Ready Mode if a door, the hood or the trunk is opened, if the brake pedal is pressed, if the parking brake is disengaged or if the ignition key is turned to the IGNITION ON (RUN) position. -
Page 8: Remote Starter Features
Turn the ignition key to the IGNITION ON (RUN) position. (Do not turn the key to the CRANK position while the engine is running. This would cause the starter motor to re-engage.) Press the brake pedal to disengage the remote starter unit. You are now ready to drive off. -
Page 9: Valet Mode
If your vehicle has a manual transmission, Idle Mode can be activated through the same routine as that used for Ready Mode (page-6); at the last step, press button to lock the doors, arm the system and leave the engine running. NEW FEATURE –... -
Page 10: Panic Mode
Using the TRANSMITTER (Remote Valet Mode): Press the buttons simultaneously until the parking lights flash twice. The LED on the antenna will flash rapidly, indicating that the vehicle is now out of Valet mode. If someone attempted to remote-start the vehicle while in Valet Mode; the parking lights will turn ON, then OFF, then will flash twice. -
Page 11: Extended Run Time
To verify whether the system is in Cold Weather Mode: • (Automatic transmissions only) Press the brake pedal: If the vehicle is in Cold Weather mode, the parking lights will remain ON while the brake pedal is pressed. Extended Run Time With the vehicle running under a remote start, pressing and holding the button for more than 3 seconds will reset the run time counter to zero and restart the run time cycle from the beginning. -
Page 12: Secure Lock
Secure Lock (Disabled by default.) Before your vehicle can be remote-started, the factory security system must first be disarmed. The Secure Lock feature may be required on certain vehicle models with factory security systems that automatically unlock the doors when the security system is disarmed. To keep your vehicle protected when the factory security system is disarmed for a remote start, Secure Lock will relock your doors as soon as the vehicle is started. -
Page 13: Home Valet Tm " Mode
“Home Valet ” Mode If configured at installation, this feature will remotely set the vehicle to a no-remote-start mode: if the vehicle is parked indoors there is no danger of it starting accidentally by remote control. If the vehicle has a manual transmission, it should be set into ready mode before activating the Home Valet™. -
Page 14: Aux 2
Press AUX 2X QUICK START/STOP: ....STOP Press AUX 2X QUICK TRUNK: ......TRUNK NOTE: Pressing the AUX button 2x quickly causes the LED to flash slowly and to shift to level 1 (AUX 2, configurable by your installer). Pressing the AUX button 3x quickly causes the LED to flash fast and to shift to level 2 (second car operation). -
Page 15: Troubleshooting Poor Transmitting Range
Troubleshooting Poor Transmitting Range Many factors may affect the operating range of the transmitter. Some of these are: • The condition of the battery in the transmitter. • The operating environment (for example: downtown radio-frequency noise, airports, cellular phone towers…) • Metal: any type of metal will affect operating range. This includes the metal in the car. •...
