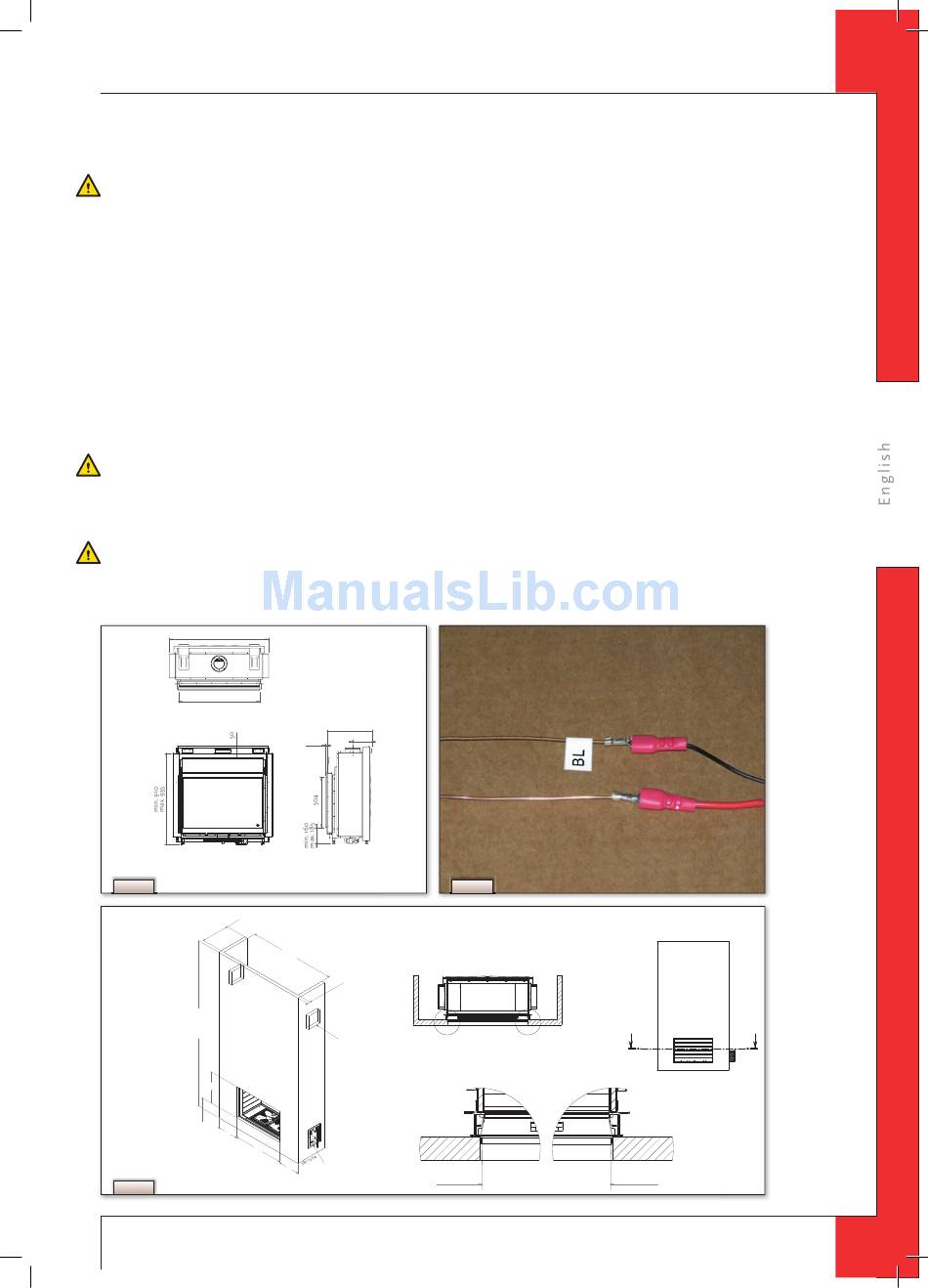

6.4 Positioning the appliance
Positionthefi  reasfollows:
- Keep combustible objects and/or materials at a minimum distance of 500 mm from the appliance.
N.B.
- Do not adjust the appliance in any way.
Determine the position of the appliance;
➠
Create a gas connection in the appropriate position; see section 6.3 for details;
➠
Create a duct for the fl ue / combustion air supply system, with the diameter shown below; see section 6.5 for details;
➠
Ø160 mm for a wall duct of incombustible material;
➠
Ø 250 mm for a wall duct of combustible material;
➠
Ø160 mm for a roof duct of incombustible material;
➠
Ø 250 mm for a roof duct of combustible material.
➠
- Allow for the depth of the appliance (see
!N.B.
- Allow for the build-in height; this will depend on the height of the adjustable feet (see
Move the appliance into its intended position.
➠
Thegascontrolblockismountedontotheburnerplateatthebottomoftheappliance.Thisshouldberemovedand
placedinthecontrolboxlater.Seesection6.7forinformationonhowtofi  tthegascontrolblock.
Commenceasfollows:
Disconnect the hoses from the gas control block (fl exible gas hose, aluminium pilot pipe and thermocouple 1);
➠
Caution The red wire of thermocouple 2 must remain connected to the gas control.
to the thermocouple.
Unscrew the self-tapping screw in the burner plate and remove the gas control block.
➠
Carefully unwind the red and black wires of thermocouple 2.
➠
Lay the gas control together with the wires of thermocouple 2 in the direction of the control box.
➠
- Avoid dirt in the hoses;
N.B.
- Avoid kinks in the hoses.
Unroll the hoses towards the control box;
➠
Unroll the ignition wire towards the control box.
➠
995
813
Top view
Front view
Apollo 80
Fig. 1a
min 450 mm inside
min 1450 mm inside
min
1350 mm
inside
508
min
=
150 mm
817
Fig. 2
) (The minimum depth at the Apollo is 450 mm);
Fig. 2
448
192
15
Side view
Fig. 1b
max 100 mm
b
Total
ventilation
2
200 cm
Control box b
=
Maximal
plaster line
).
Fig. 1a
shows how the wires are connected
Fig. 1b
A
c
A-A
Maximal
plaster line
A
c
