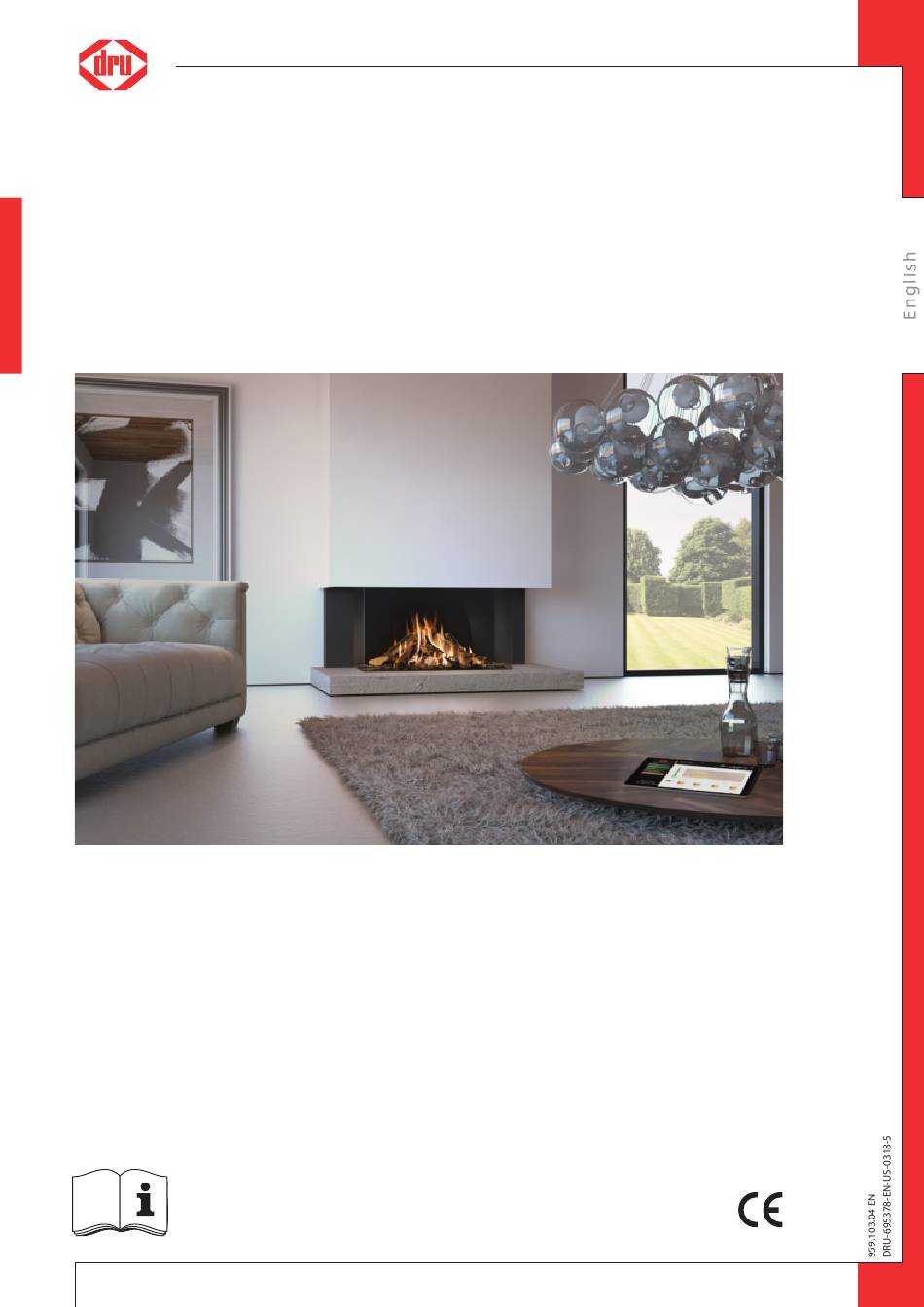

  • Page 1 Maestro 105/2 RCH Maestro 105/3 RCH G20/G25/G25.3 (Natural gas) G31 (Propane) Installation manual Store this document in a safe place...

  • Page 2: Table Of Contents

    I N S T A L LA T I O N M A N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4.

  • Page 3: Introduction

    The figures are at the back of this installation manual, in the appendix. Fully and carefully read and use this installation manual, before installing the appliance. When using the DRU Powervent system® or DRU CM system®, the accompanying installation manual should also be read completely and carefully, before installation work is started.

  • Page 4: Safety

    This has to do with the temperature development in the chimney breast. Ø Only use the flue gas discharge / combustion air supply system supplied by DRU. Ø When installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text.

  • Page 5: Principle Of Ignition Cycle

    IN S T A LLA TION M A NU A L 3.4 Principle of ignition cycle Below you will find a brief description of how this appliance is ignited. The receiver in the appliance will get a signal from the remote control to start the ignition process. The receiver will get the signal to start the ignition process.

  • Page 6: Installation

    It is possible to operate one or more lamps (in case of several lamps, a maximum of 0.5A/250VAC/30VDC) via the remote control of the appliance. You could think of the lamps of Dru's lux elements. For this, you can use switch contact B on the receiver (see appendix 3, fig 36).

  • Page 7: Placing A Built-In Appliance

    (if applicable) Not all built in DRU appliances are supplied with a control hatch. Built in appliances must be installed with the DRU control hatch. This is necessary to ensure a durable, safe and !Caution proper operation. The DRU control hatch can be ordered separately. Exceptions are: Appliances with supplied DRU guard cabinet.

  • Page 8: Placing The Control Hatch

    !Tip You should preferably apply the ventilation holes (outgoing) on both sides of the chimney breast. Use the DRU ventilation elements. Check the following issues, before the chimney breast is fully closed: •...
  • Page 9 IN S T A LLA TION M A NU A L Ø Attach the bracket with gas control to the inner frame (A). Proceed as follows: • Unwind the cables. This will, amongst other things, prevent a poor operation of the ignition. •...

  • Page 10: Concentric System

    5.8 Concentric system 5.8.1 General The appliance is connected to a flue gas discharge / combustion air supply system delivered by DRU, hereafter referred to as the concentric system. The diameter for this connection is indicated in appendix 2, table 2. The passage to the outside can be created with a wall terminal (C11) or a roof terminal (C31).

  • Page 11: Connection To An Existing Chimney (C91)

    The following requirements apply when connecting to an existing chimney: • Only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery. •...

  • Page 12: Additional Instructions

    I N S T A L LA T I O N M A N U A L 5.10 Additional instructions Ø Attach the appliance to the wall by means of wall brackets (A) (see appendix 3, fig.1). !Caution Ensure that the lower decorative strip or the plateau that connects to the glass can be removed for possible service purposes.

  • Page 13: Back Wall On The Glass Of The Side Pane

    IN S T A LLA TION M A NU A L 5.12.3 Back wall on the glass of the side pane (see appendix 3, fig. 2d and 2e): When installing the wall up to the side pane, as shown in situation E, proceed as follows: Ø...

  • Page 14: Setting The Appliance

    I N S T A L LA T I O N M A N U A L 5.14 Setting the appliance The appliance has to be set in such a way that it works correctly in combination with the concentric system. For that purpose, a restrictor slide is placed, the middle plate in the top is removed and/or an air inlet guide is placed.

  • Page 15: Wood Set

    IN S T A LLA TION M A NU A L 5.15.1 Wood set The wood set consists of a number of logs (see appendix 3, fig. 11), vermiculite (see appendix 3, fig. 12), chips (see appendix 3, fig. 13), glow material (see appendix 3, fig. 14) and ash (see appendix 3, fig. 15). Ø...

  • Page 16: Control

    IN S TA LLA TION M A N U AL 6. Control The appliance is supplied with a wireless black remote control for the user (see appendix 3, fig. 35 (B)). As an option, an orange remote control can be supplied for the installer (see appendix 3, fig. 35 (O). Controlling the flame height, igniting and switching off take place through the black remote control controlling the receiver.
  • Page 17 6.2.2.2 Control via application Also when operating the appliance via a tablet provided with the DRU Control App (iOS or Android), you will need a communication module. This module can be ordered from DRU. In order to control the fire via an application, proceed as follows: Ø...

  • Page 18: Final Inspection

    I N S T A L LA T I O N M A N U A L 7. Final inspection In order to check whether the appliance is working properly and safely, you must perform the following inspections before the appliance is put into operation. 7.1 Gastightness All connections must be gastight.

  • Page 19: Flame Picture

    IN S T A LLA TION M A NU A L !Tip When checking whether the main burner continuous to burn, it is possible that it switches off after 15 seconds. In that case, this will be caused by the fact that there is no ionization detection and because the glass window has not been placed.

  • Page 20: Parts

    I N S T A L LA T I O N M A N U A L Ø Perform the inspection as described in chapter 7. 8.1 Parts Components that have to be replaced are available at the supplier. Delivery You must explain to the user how to operate the appliance.

  • Page 21: Appendix 1 Malfunctions

    IN S T A LLA TION M A NU A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy Communication loss Communication cable does Make sure the connectors of between receiver and not make contact the communication cable burner device make proper contact Communication cable...
  • Page 22 I N S T A L LA T I ON M A N U A L Error messages Error code Problem Possible cause Remedy Ionization pin Replace the ionization (follow-up) defective (measure ionization current when 0) ESYS is not released ESYS is in hard-lock Wait half hour until ESYS resets itself.

  • Page 23: Appendix 2 Tables

    IN S T A LLA TION M A NU A L Appendix 2 Tables Table 1: Parts included with the delivery Part Number Installation manual User manual Wood set Glow material Restrictor slide Air inlet guide Remote control Mains lead NL and UK Control hatch Wall bracket Assembly set platform...
  • Page 24 2ELL Concentric appliance connection 200/130 Applicable concentric systems DRU LAS ES-I 200/130, DRU LAS ES-E 200/150/100, DRU LAS ES-I 150/100, DRU LAS AG-I 150/100, DRU PV-I 100/60 Flame protection version Separated ignition / ionization plugs Atmosphere safety Explosion hatch Ventilation hole chimney breast 200 cm²...
  • Page 25 IN S T A LLA TION M A NU A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25/G25.3/G31...
  • Page 26 I N S T A L LA T I ON M A N U A L Table 5: Determining permissibility concentric system with roof terminal G20/G25/G25.3/ Total number of meters Total no. of meters vertical and/or sloping pipe length horiz. pipe length no bends 2 bends...

  • Page 27: Appendix 3 Figures

    IN S T A LLA TION M A NU A L Appendix 3 Figures 1135 1171 1050 38c-2326 /1 Maestro 105-3 RCH 1085 1149 1039 38c-2327 /1 Maestro 105-2 R RCH...
  • Page 28 I N S T A L LA T I O N M A N U A L Tot. min. Tot. min. 200 cm 200 cm min. min. Maestro 105-2 RCH Maestro 105-3 RCH min. 230 max. max. PowerVent min. 280 38C-2329/0...
  • Page 29 IN S T A LLA TION M A NU A L 1139 1063 1151 38c-2330 /0 1087 1049 1095 38c-2331 /0 0-30mm 38c-2332 /1...
  • Page 30 I N S T A L LA T I ON M A N U A L 38C-2333/0 min. 800...
  • Page 31 IN S T A LLA TION M A NU A L 38C-1868 d /0...
  • Page 32 I N S T A L LA T I ON M A N U A L 0 - 6m 0 - 1m 1x90° 1x90° 38C-744ZP 38C-744ZR 1x90° 0 - 3m 1x90° 38C-744ZT 38C-744W 38C-2334/0...
  • Page 33 IN S T A LLA TION M A NU A L 38C-2335/0 38C-2337 /0...
  • Page 34 I N S T A L LA T I ON M A N U A L...
  • Page 35 IN S T A LLA TION M A NU A L 38P-0645 38p-0022 38P-0608 38P-0609 38P-0028 /1...
  • Page 36 I N S T A L LA T I ON M A N U A L 38P-0646/0...
  • Page 37 IN S T A LLA TION M A NU A L 38P-0647/0...
  • Page 38 I N S T A L LA T I ON M A N U A L 38P-0648/0...
  • Page 39 IN S T A LLA TION M A NU A L 38P-0649/0...
  • Page 40 I N S T A L LA T I ON M A N U A L 38P-0652 38P-0651 38P-0650...
  • Page 41 IN S T A LLA TION M A NU A L 0 – 3 V Modbus WiFi 38C-1871 /0 Router PowerVent ® max. 80W 230VAC max. 0,5A / 250VAC / 30VDC 0 - 3V 38P-0790 /0...
  • Page 42 I N S T A L LA T I ON M A N U A L     І     І     І     І     І...
  • Page 43 IN S T A LLA TION M A NU A L Min. 0 mm Min. 0 mm 38C-2311/0 38C-2321/0 Min. 12,5 mm Min. 12,5 mm Min. 60 mm Min. 60 mm Min. 100 mm Min. 100 mm...
  • Page 44 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
