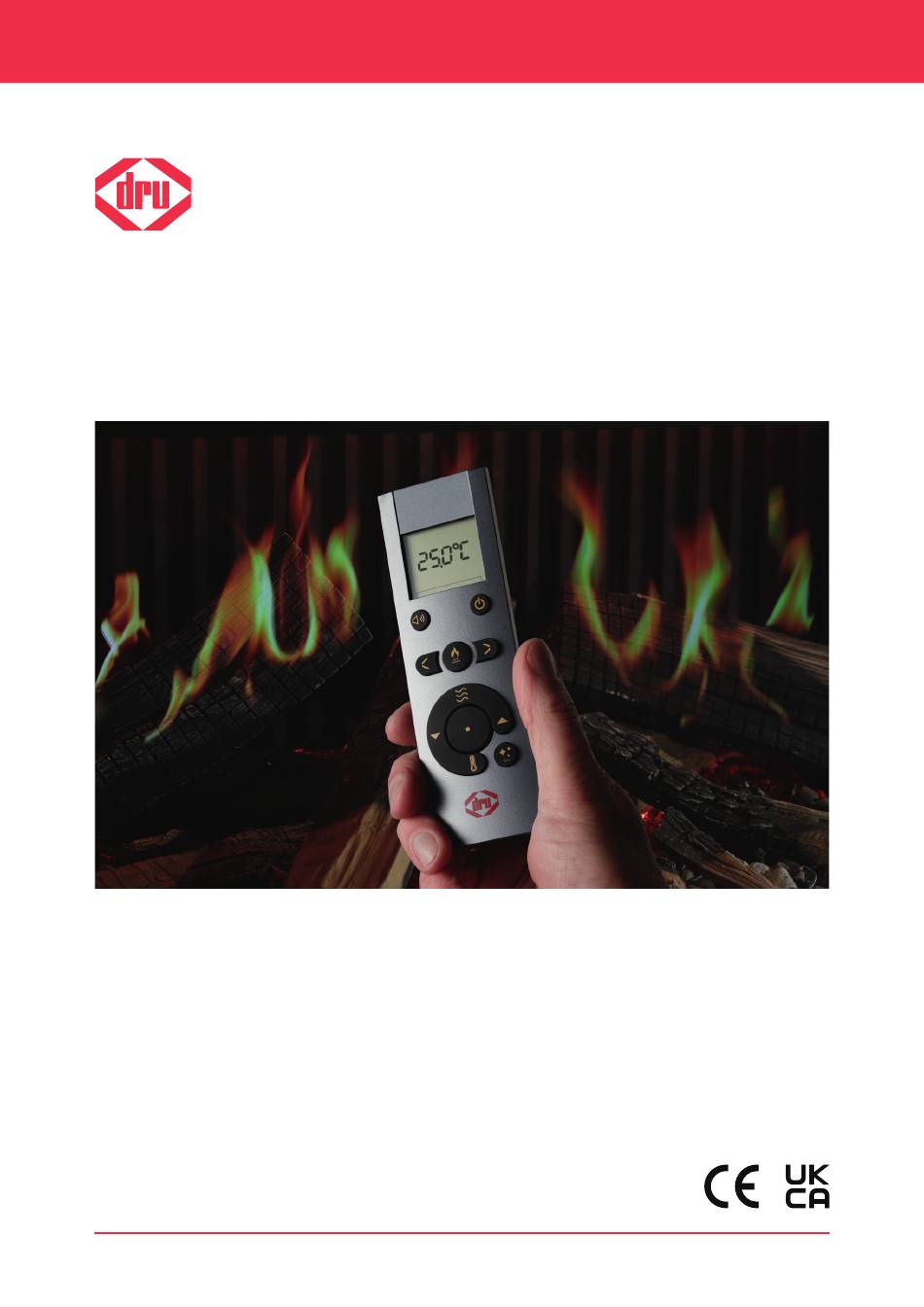

- Page 1 User manual User manual For electrical appliances with a DRU Bluetooth remote control English Store this document in a safe place 958.021.00UK...
- Page 2 User manual 38C-2829 Display Thermostat Sound On/Off Previous No function Next Function button Heating Temp. higher Temp. lower Glow...
- Page 3 User manual Button Display Description Switching the appliance on and off Page 19, section 4.2.5 Sound on/ off Page. 19, section 4.2.9 Switching on heating Page. 20, section 4.2.10 Switching on the thermostat Page 22, section 4.3.11 Glow on/off Page 19, section 4.2.8 Bluetooth pairing mode Page 18, section 4.2.4 (5 sec.)
- Page 4 User Manual Button Display Description Celsius/ Fahrenheit Switch Page 18, section 4.2.4 (3 sec.) Coupling the remote control Page 16, section 4.2.2 (3 sec.)
-
Page 5: Table Of Contents
4.2 Remote control 4.2.1 Placing/replacing the batteries 4.2.2 Coupling the remote control 4.2.3 Uncoupling the remote control 4.2.4 Coupling the DRU Fire App 4.2.5 Switching off the appliance 4.2.6 Switching on the appliance 4.2.7 Selecting the flame picture 4.2.8 Switch glow on/off 4.2.9 Switching the sound on/off... -
Page 6: Introduction
User manual 1. Introduction DRU, a manufacturer of gas-fired and electric stoves, develops and produces products that comply with the highest quality, performance and safety requirements. This appliance has a CE label, which means that it complies with the essential requirements of the European directives. -
Page 7: Safety
User manual User Manual 2. Safety 2.1 Precautions / safety instructions Carefully read this section about safety and accurately observe the measures and instructions in this manual. 2.1.1 Safety of the installation The appliance is powered by 230VAC 50Hz. Do not make any changes to the appliance. In case of malfunctions and/or poor performance, remove the plug from the socket and contact your dealer. -
Page 8: Safety Of People And Animals
Take measures to prevent damage and unsafe situations in such cases. If the DRU Fire App is used, measures should be taken to avoid hacking and thus unintended activation of the appliance. -
Page 9: Safety Through Maintenance
2.2 EU Declaration of Conformity We, DRU Verwarming B.V. hereby declare that the type of radio equipment ‘Remote Control DRU RC BLE’ is in conformity with directive 2014/53/EU. The complete text of the EU Declaration of Conformity can be consulted at the following internet address: druservice.com... -
Page 10: Taking The Appliance In Operation
User manual 3. Taking the appliance in operation 3.1 First use If the chimney breast is made of stone-like materials or has been finished in stucco, it should be left to dry for at least 6 weeks before using the heater to prevent shrinkage cracks. -
Page 11: Main Switch
User manual 3.3 Main switch The appliance is provided with a main switch on the inside of the upper decorative strip (fig. 3-1). This main switch can be used to switch off the entire electrical system of the appliance. - Make sure the main switch is in the on position before using the fire. - The main switch does not make the appliance fully free from voltage. -
Page 12: Operating The Appliance
Several methods can be used to operate the appliance. These are described in the sections below. 4.1 DRU Fire App The free DRU Fire App allows you to operate the appliance via a smartphone or tablet. The DRU Fire App is available for both iOS and Android devices. - Page 13 User manual...
-
Page 14: Remote Control
User manual 4.2 Remote control The appliance is supplied with a remote control. Its functions and possibilities are described in the following subsections. symbol on the display of the remote control shows the current status of the connection with the appliance: - Not visible: No connection with the appliance - Flashing: Looking for connection with the appliance - Visible: Connected with the appliance... - Page 15 User manual 38C-2830...
-
Page 16: Coupling The Remote Control
User manual 4.2.2 Coupling the remote control Before you can use the remote control, it must be coupled with the appliance. The remote control can only be coupled when it is in the (fig. 4-2) mode. Observe the following steps to couple the remote control. The display of the remote control shows the message (fig. -
Page 17: Uncoupling The Remote Control
Observe the steps below for coupling the DRU Fire App with the appliance. Before the appliance can be coupled with the DRU Fire App, the remote control must be coupled with the appliance (section 4.2.2). Download the DRU Fire App (section 4.1) -
Page 18: Switching Off The Appliance
User manual 4.2.5 Switching off the appliance The appliance can be switched off by pressing the button The appliance will switch off immediately. 4.2.6 Switching on the appliance Observe the step below to start up the appliance. - Press the button . -
Page 19: Manual Operation Of The Heater
User manual 4.2.10 Manual operation of the heating The heating element can be manually operated in 2 positions. Observe the following steps to adjust the heating: Press the button to switch on the appliance. Press the button to activate manual operation. The symbol is shown on the display (fig. - Page 20 User manual...
-
Page 21: Thermostat
User manual 4.2.11 Thermostat By means of the thermostat function, the heating element is switched on based on the required room temperature. Switch on the thermostat by pressing the button (fig. 4-10). Use buttons to select the required temperature. The temperature can be set between 5.0 and 35.0 °C. For a few seconds, the programmed temperature remains visible on the display (fig. -
Page 22: Time Schedule
User manual 4.2.12 Time schedule The time schedule must be set by means of the DRU Fire App. If a time schedule is active, the symbol is shown on the display of the remote control. It is possible to switch the set time schedule on and off manually, by means of the remote control. -
Page 23: Temperature Display In Celsius Or Fahrenheit
User manual 4.2.13 Temperature display in Celsius or Fahrenheit The standard temperature display is in degrees Celsius. It is possible to change the temperature display between Celsius and Fahrenheit. Observe the following steps to do this: Hold down button and for 3 seconds. The display shows the currently selected temperature unit. -
Page 24: Updating The Remote Control
4.2.14 Updating the remote control It is possible to provide the remote control with a software update, if such an update is available. To be able to perform this update, use of the DRU Fire App is required (section 4.1). -
Page 25: Fault
User manual 5. Fault 5.1 Error message The remote control has lost its connection with the appliance. This could have several causes: - The remote control is too far removed from the appliance. Bring the remote control nearer to the appliance. - The appliance is free from voltage. -
Page 26: Measuring The Strength Of The Signal
User manual 5.2 Measuring the strength of the signal It is possible to measure the received signal strength from the appliance on the remote control. A good signal strength is between −20dB and −70dB, a poor signal strength is below −70dB. Proceed as follows to check the signal strength: Hold down buttons for 5 seconds. -
Page 27: Factory Reset
User manual 5.3 Factory reset If the appliance repeatedly enters into a fault or is unable to get out of a fault, it is possible to perform a factory reset. In case of a factory reset, all your preferred settings and downloaded flame pictures will be lost. -
Page 28: Maintenance
User manual 6. Maintenance At least once per year, the appliance should be checked for proper and safe operation. - Your appliance should only be maintained by a competent installer. - In case of a broken or torn glass pane, do not use the heating element. Have the glass pane replaced immediately. -
Page 29: Cleaning The Glass Pane(S)
User manual 6.1 Cleaning the glass pane(s) For an optimum experience of the appliance, it is recommended to clean the glass pane. The glass pane(s) to be cleaned should be cooled down to room temperature. Avoid damage to the glass pane(s). - Use a damp microfibre cloth. -
Page 30: Environment
Damages to the paint, resulting from objects fallen/placed on or against the appliance are not covered by the warranty. The warranty for your DRU appliance will be provided via your dealer. Contact your dealer in case of questions and/or complaints. - Page 31 User manual Notes...
- Page 32 User manual DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
