Page 1: Quick Start Guide
Excelis HD QUICK START GUIDE 73 Mall Drive, Commack, NY 11725 631-864-1000 (P) • 631-543-8900 info@accu-scope.com • www.accu-scope.com... -
Page 2: What's In The Box

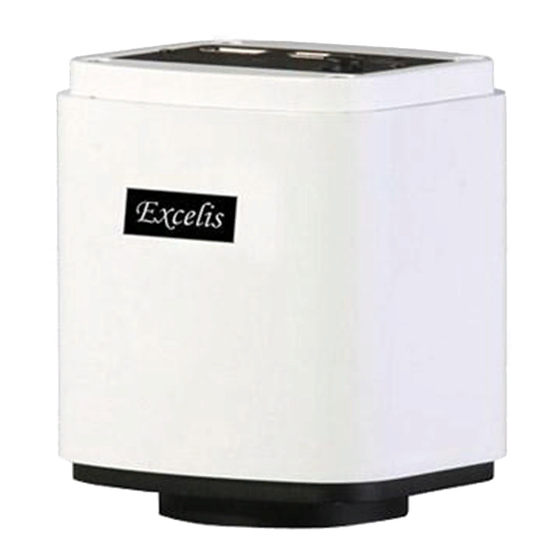

Excelis HD QUICK START GUIDE Congratulations on the purchase of your new Excelis HD microscopy camera. This guide will help you get up and running fast so you may begin using your camera right away. What’s in the Box? ... -
Page 3: Installation
Excelis HD QUICK START GUIDE Using Excelis HD With a Monitor ONLY (PC and MAC Compatible) INSTALLATION 1) INSTALL THE CAMERA: Install the c-mount adapter onto your Excelis HD camera, then mount the camera onto your microscope’s photo port. 2) INSERT SD CARD: the SD card was installed at the factory. - Page 4 Excelis HD QUICK START GUIDE VIEWING & ADJUSTING AN IMAGE 1) CAMERA MENU & SETTINGS: With your camera mouse navigate to the TOP LEFT area of your monitor – as you hover there, a CAMERA ICON and SETTINGS ICON will appear on the display.
-
Page 5: Capturing An Image
Excelis HD QUICK START GUIDE CAPTURING AN IMAGE CAPTURE AN IMAGE: to capture an image, CLICK the CAMERA ICON – the image will be saved to the SD card in JPEG format (.jpg). The camera will revert back to live view. - Page 6 Excelis HD QUICK START GUIDE HORIZONTAL FLIP: Flips a saved image on the SD card on its horizontal axis. VERTICAL FLIP: Flips a saved image on the SD card on its vertical axis. ZOOM IN: Zooms in on an area of the saved image on the SD card.
- Page 7 Excelis HD QUICK START GUIDE COMPARISON BROWSER ICONS The comparison browser allows you to compare saved images on the SD card with the live view. HOME: brings you back to the previous screen. BACK: brings you to the previous page of saved images (if there is one).
- Page 8 Excelis HD QUICK START GUIDE BROWSER ICONS The browser allows you to view, select or delete saved images and video on the SD card. HOME: brings you back to the previous screen. BACK: brings you to the previous page of saved images or video (if there is one).
- Page 9 QUICK START GUIDE Using Excelis HD With a PC You can connect your Excelis HD camera directly to a PC using the USB 2.0 ca- ble female/female cable that is included with your camera. Connect one end of the USB 2.0 cable to the USB port on the top of the camera and the other to a USB 2.0 port on your PC.
-
Page 10: Limited Warranty
All items returned for warranty repair must be sent freight prepaid and insured to ACCU-SCOPE INC., or UNITRON Ltd., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the Continental United States of America.
