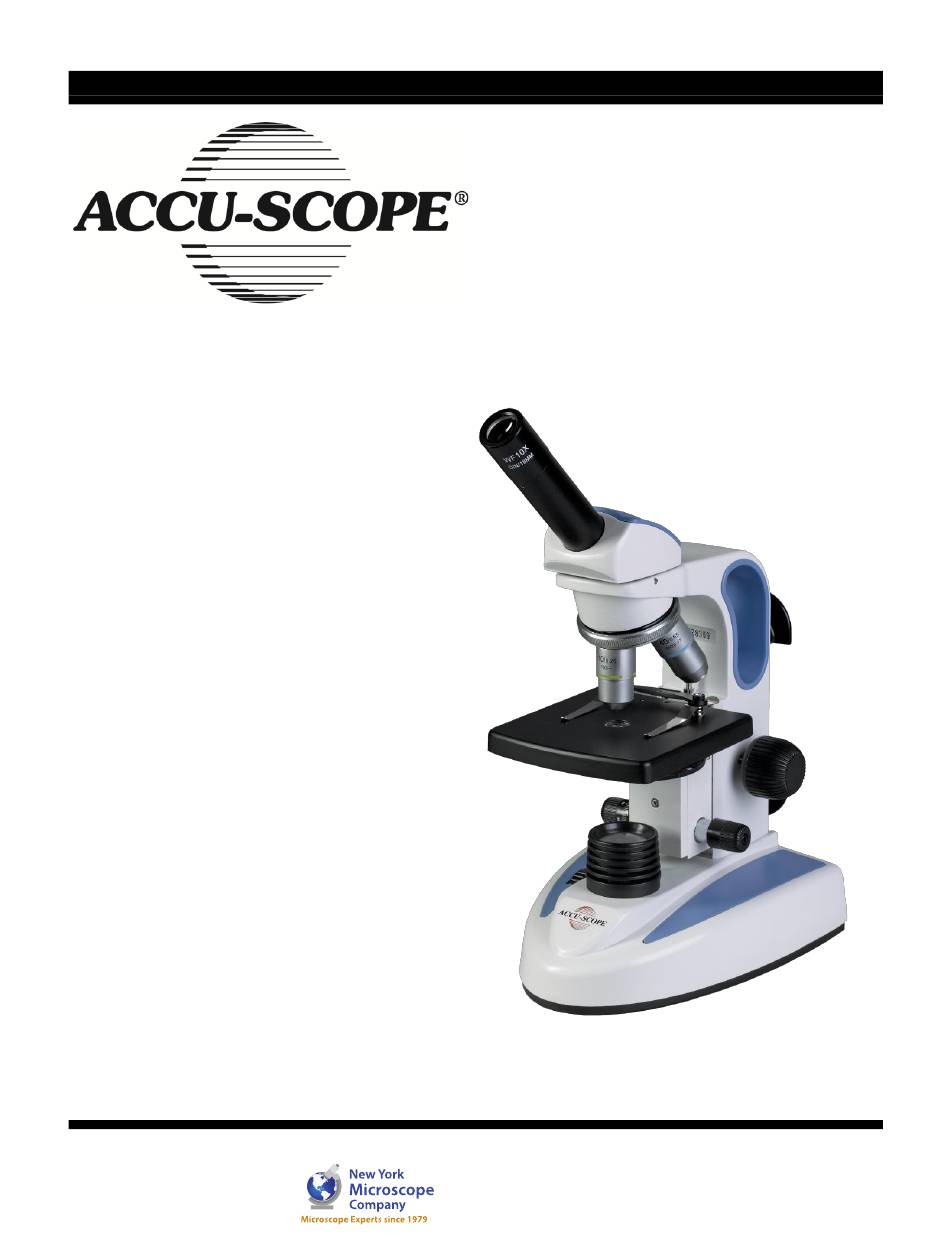

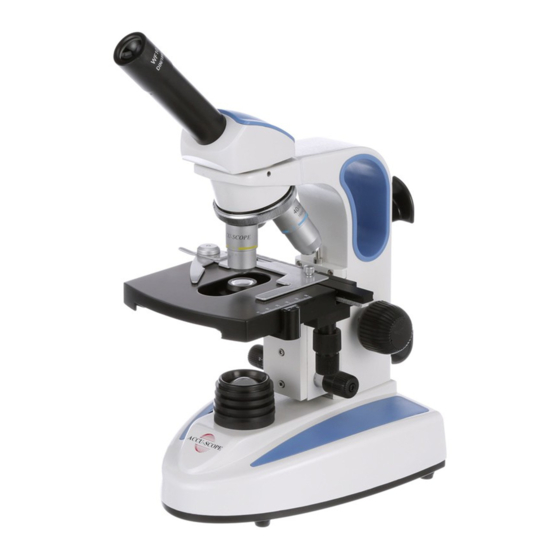

- Page 1 MANUAL EXM-150 MICROSCOPE SERIES 100 Lauman Lane, Suite A, Hicksville, NY 11801 Tel: (877) 877-7274 | Fax: (516) 801-2046 Email: Info@nyscopes.com www.microscopeinternational.com...
-
Page 2: Table Of Contents
....................8 DISC OR IRIS DIAPHRAGM ........................ 8 OIL OBJECTIVE RECHARGING THE MICROSCOPE ................9 FUSE REPLACEMENT ....................9 BATTERY REPLACEMENT ..................10 LED BULB REPLACEMENT ..................10 TROUBLESHOOTING ....................11-13 MAINTENANCE........................14 SERVICE ..........................14 WARRANTY ........................14 ® ACCU-SCOPE... -
Page 3: Safety Notes
4. Store the instrument in a cool, dry environment. Cover the microscope with the dust cover when not in use. ® 5. ACCU-SCOPE microscopes are precision instruments which require periodic preventative maintenance to maintain proper performance and to compensate for normal wear. An annual schedule of preventative maintenance by qualified personnel is highly recommended. -
Page 4: Introduction
Your microscope will ® last a lifetime if used and maintained properly. ACCU-SCOPE microscopes are carefully assembled, inspected and tested by our staff of trained technicians in our New York facility. Careful quality control procedures ensure each microscope is of the highest quality prior to shipment. - Page 5 EXM-150 MICROSCOPE SERIES COMPONENTS DIAGRAM Models Featuring Mechanical Stage & Abbe Condenser Slide Finger Slide Holder Condenser Y-Axis Adjustment (Top) Knob X-Axis Adjustment (Bottom) Knob Other Models Not Shown: EXM-150-MS EXM-151-MST EXM-150-T EXM-151-MS ® ACCU-SCOPE...
-
Page 6: Connecting The Power Cord
With the microscope turned on (I), rotate the light adjustment dial ① until the illumination is comfortable for observation. Rotate the light adjustment knob toward the back of the microscope to increase brightness; rotate toward the front to reduce brightness. ① ® ACCU-SCOPE... -
Page 7: Specimen Slide
Using the 4x objective bring the specimen into focus using the ③ coarse ④ and fine ⑤ focusing controls. Different objectives can be brought into view by rotating the nosepiece and using the fine adjustment knob because the objectives are parfocal. ④ ⑤ ® ACCU-SCOPE... -
Page 8: Disc Or Iris Diaphragm
Cleaning after each use will prevent oil from contaminating the high dry objective (40xR), prevent dust and dirt from accu- mulating on the lens of the objective which will degrade its optical performance, and will keep the slide clean to work with . ® ACCU-SCOPE... -
Page 9: Recharging The Microscope
( — ). Gently pull out the old fuse ② and Install a new fuse into the fuse holder and screw it back into the base. Specification of the fuse: 250V, 1.0A CAT #3277-1 ® ACCU-SCOPE... -
Page 10: Battery Replacement
The LED bulbs are covered by a 1 year manufacturer’s warranty. Should your LED bulbs need replacing, please contact an authorized ACCU-SCOPE service center or call ACCU- SCOPE Inc.’s technical service department at 631-864-1000 for an authorized service center near you. -
Page 11: Troubleshooting
No immersion oil used Use immersion oil with100xR objective Air bubbles in immersion oil Remove bubbles Condenser aperture is closed Open or close properly or open too much Condenser is positioned too Position the condenser slightly lower than the upper limit ® ACCU-SCOPE... - Page 12 Turn the slide over so the slide when changed from low cover glass faces up power objective Cover glass is to thick Use a 0.17mm cover glass Diopter adjustment is not set Readjust the diopter settings properly as outlined in section 4.3 ® ACCU-SCOPE...
- Page 13 Slippage of focus when using Tension adjustment is set too Increase the tension on the the coarse focusing knob focusing knobs Fine focus is ineffective Tension adjustment is set too Loosen the tension on the high focusing knobs ® ACCU-SCOPE...
-
Page 14: Maintenance
SCOPE at (631) 864-1000. This warranty is limited to the continental United States of America. All items returned for warranty repair must be sent freight prepaid and insured to ACCU-SCOPE INC., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the continental United States of America, for all foreign warranty repairs return freight charges are the responsibility of the individual/company who returned the merchandise for repair.
