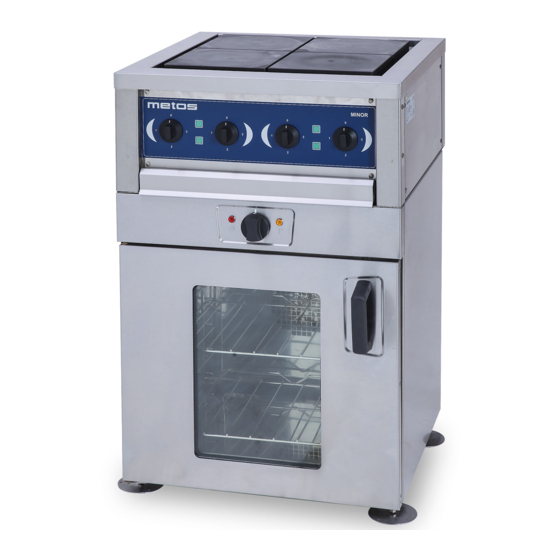

RANGE WITH OVEN
METOS
METOS MINOR 4/LD64
MG3753594MM, 3753594MK, 3753594
Instruction manual
Metos Marine
01.09.2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG3753594MM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metos MG3753594MM

  • Page 1 RANGE WITH OVEN METOS METOS MINOR 4/LD64 MG3753594MM, 3753594MK, 3753594 Instruction manual Metos Marine 01.09.2015...
  • Page 2: Table Of Contents

    Table if Contents General ...............................3 1.1. Symbols used in the manual ........................3 1.2. Symbols used on the appliance ........................3 1.3. Checking the relationship of the appliance and the manual ................3 Safety .................................4 2.1. Safe use of the appliance ..........................4 2.2. Disposal of the appliance ...........................4 Functional description ..........................5 3.1.
  • Page 3: General

    01.09.2015 METOS MINOR 4/LD64 General Carefully read the instructions in this manual as they contain important information regarding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance.
  • Page 4: Safety

    01.09.2015 METOS MINOR 4/LD64 Safety 2.1. Safe use of the appliance Because the range is a heated appliance that has hot surfaces during normal use, the following warnings and instructions must be followed in order to avoid burns. During long-time operation even the frame surrounding the cooking plates gets hot.
  • Page 5: Functional Description

    01.09.2015 METOS MINOR 4/LD64 Functional description 3.1. Intended use of the appliance The Minor range is intended for preparing different kinds of foodstuffs using cookware. The oven LD64 is intended for cooking and browning food, baking and for heating convenience meals and keeping food warm.
  • Page 6: Operation Instructions

    01.09.2015 METOS MINOR 4/LD64 Operation instructions 4.1. Before use The hob The cooking plates are protected with a thin layer of oil for the duration of storage and transportation. When heating up the range for the first time the oil may create some smoke and unpleasant smell.
  • Page 7: Using The Oven

    During the installation, a mains switch may have been fitted near the range, often on a wall nearby. Check that the mains switch is in the ON position. 01.09.2015 METOS MINOR 4/LD64 The range is controlled with power regulators and pilot lights. The hob is controlled with power regulators and pilot lights...
  • Page 8 01.09.2015 METOS MINOR 4/LD64 Switching on Switch on at mains. The red neon will light. Turn thermostat to secured setting. The amber neon will light. When amber neon goes out, the oven has reached the required temperature. Switching off Turn thermostat back fully anti-clockwise.
  • Page 9: Cleaning

    01.09.2015 METOS MINOR 4/LD64 Cleaning Disconnect unit from electrical supply prior to cleaning. STOP Use of a water hose or pressure cleaning jet is strictly forbidden. STOP Never use coarse abrasive to clean exterior surfaces. A soft cloth with a warm water and detergent solu- tion is sufficient.
  • Page 10: Maintenance

    01.09.2015 METOS MINOR 4/LD64 Maintenance 6.1. Oven shelf hangers Lift to withdraw. Replace in reverse order. Ensure hangers locate correctly within the fixings with the narrow section of the keyhole slots at the top. 6.2. Other service measures The appliance does not include any user serviceable parts inside.
  • Page 11: Installation

    01.09.2015 METOS MINOR 4/LD64 Installation 7.1. General The installation of this appliance must be carried out in accordance with the manufacturer’s instructions and following local regulations. This installation manual must be used together with the installation drawing of the appliance.
  • Page 12: Technical Specications

    01.09.2015 METOS MINOR 4/LD64 Technical specications Main and Control circuit AC415-440V, 50-60 Hz T03905 A3 1 Main and Control circuit AC415-440V, 50-60 Hz T03905 A3 2 Main and Control circuit AC380-400V, 50 Hz T04136 A3 1 Main and Control circuit AC220-230V 50 Hz...
  • Page 20 01.09.2015 METOS MINOR 4/LD64 Item Specification Outer dimensions WxDxH 603 x 670 x 885 mm Marine model 603 x 710 x 885 mm Cooking plates Power regulator hob 4 position, pilot light for each plate oven Material Cooking plates of cast iron, external parts of Stainless steel...
  • Page 21 01.09.2015 METOS MINOR 4/LD64...
