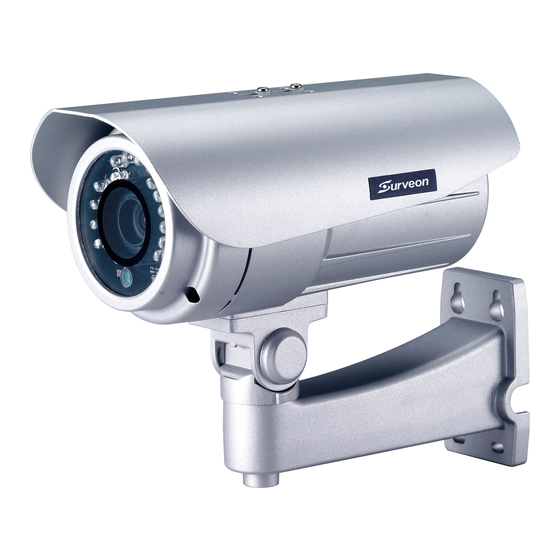

- Page 1 CAM3365 3 Megapixel IR Bullet Outdoor Network Camera Hardware Manual Release 1.0 February, 2011...
- Page 3 Product specifications are also subject to change without notice. Trademarks Surveon and Surveon logo are trademarks of Surveon Technology Inc. All other names, brands, products or services are trademarks or registered trademarks of their respective owners...
-
Page 4: Table Of Contents
Table of Contents Copyright Statement................I Table of Contents ................II Safety Precautions ................III Device Site Recommendations..............III Regulatory Compliance Information ............IV Chapter 1. Product Overview..............1 1.1. Features and Benefits ..............1 Chapter 2. Hardware Overview .............. 2 2.1. Front View ................2 2.2. -
Page 5: Safety Precautions
Safety Precautions Electric Shock Warning This equipment may cause electric shocks if not handled properly. Access to this equipment should only be granted to trained operators and maintenance personnel who have been instructed of, and fully understand the possible hazardous conditions and the consequences of accessing non-field-serviceable units such as the power supplies. -
Page 6: Regulatory Compliance Information
Regulatory Compliance Information Regulatory Compliance Information FCC/CE Class A IEC 60950 Shown below is the location of the compliance statement label. (applies in the U.S. and Canada) FCC Class A Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules (47 CFR, Part 2, Part 15 and CISPR PUB. - Page 7 CCC For Power Supplies’ compatibility to China Compulsory Certification. Surveon is committed to being properly prepared and taking all the necessary steps that will result in our compliance with the new European directive, RoHS (2002/95/EC), on or before the specific dates set forth in those applicable laws and regulations.
-
Page 9: Chapter 1. Product Overview
30m. Outdoor housing design CAM3365 has been designed for use of under harsh environmental conditions. Its IP66 weather-proof housing can withstand rain and dust. The built-in heater and fan ensures the camera will continue working even at temperatures as low as -20℃... -
Page 10: Chapter 2. Hardware Overview
Surveon CAM3365 Hardware Overview Chapter 2. 2.1. Front View www.surveon.com... -
Page 11: Rear View
2.2. Rear View 2.3. Dimensions Surveon Network Camera Hardware Manual... -
Page 12: Cables
Surveon CAM3365 2.4. Cables 2.5. Bracket Sealing We suggest that the bracket be sealed after positioning the camera to ensure the weatherproof characteristics of the camera are maintained. The figures show the positions that should be sealed. www.surveon.com... -
Page 13: Functions
PIRs, door/window contacts, glass break detectors, etc. When a signal is received the state changes and the input becomes active (shown under Event Configuration > Port Status). Auxiliary power and GND Surveon Network Camera Hardware Manual... - Page 14 Surveon CAM3365 Ground Description Electrically connected in Voltage: 12V Auxiliar parallel with the y DC connector for the power Max: 1.2W supply, this pin provides Power an auxiliary connector for (not to main power to the unit. power This pin can also be used...
- Page 15 Flashes every 0.2 sec during firmware upgrade. Amber (On:0.2 sec, Off: 0.2 sec) Note: Startup or reboot may have failed if the status LED shows steady amber for over 1 minute. Unlit No network connection. Surveon Network Camera Hardware Manual...
-
Page 16: Chapter 3. Troubleshooting
Surveon CAM3365 Troubleshooting Chapter 3. 3.1. Checking Firmware Version Connect to the camera through a web browser. Firmware version information will be under System > System Status > Firmware version. 3.2. Upgrading Firmware Upgrading with a firmware file on a PC: Power ON the device. -
Page 17: Resetting To Factory Default Settings
(including the IP address) to be reset. To reset the unit without changing parameters, disconnect and reconnect the power adapter. To check for updated information on your camera, or for any other questions, please refer to http://www.surveontech.com/support/faq.asp or contact technical support at support@surveontech.com. Surveon Network Camera Hardware Manual... -
Page 18: Chapter 4. Technical Specifications
Surveon CAM3365 Technical Specifications Chapter 4. CAM3365 Image sensor 1/2.8” 3 megapixel Sony Low Light CMOS Lens 3-10 mm motorized lens, F1.3 Viewing Diagonal:129° ~ 34° Angle Horizontal:100° ~ 27° Vertical: 73° ~ 20° Day/Night IR LED Yes (30 m) - Page 19 Max. 25 W (w/ Heater, no AUX Power) Dimension 105 x 218.8 x 191.41 mm (3.44" x 7.18" x 6.28") (WxHxD) Net: 1,400g (3.09lb.) Weight Gross: 2,170g (4.8lb.) Safety: LVD Certification EMC: FCC, CE IP66 * Supported in future phases. Surveon Network Camera Hardware Manual...
