9.3.1 Video Format (Video Resolution and Rotate Type) ......... 87 9.3.2 Video Compression ..................89 9.3.3 Video OCX Protocol ..................90 9.3.4 Video Frame Rate ..................90 9.3.5 Audio (Audio Mode and Bit Rate Settings) ............91 Camera ........................93 9.4.1 Exposure ......................
Safety Precautions Electric Shock Warning This equipment may cause electric shocks if not handled properly. Access to this equipment should only be granted to trained operators and maintenance personnel who have been instructed of, and fully understand the possible hazardous conditions and the consequences of accessing non-field-serviceable units such as the power supplies.
Page 8
Device Installation/Site Selection The device should be installed according to specifications. This device should be operated at a site that is: Clean, dry, and free of excessive airborne particles. Well-ventilated and away from heat sources such as direct sunlight and radiators. ...

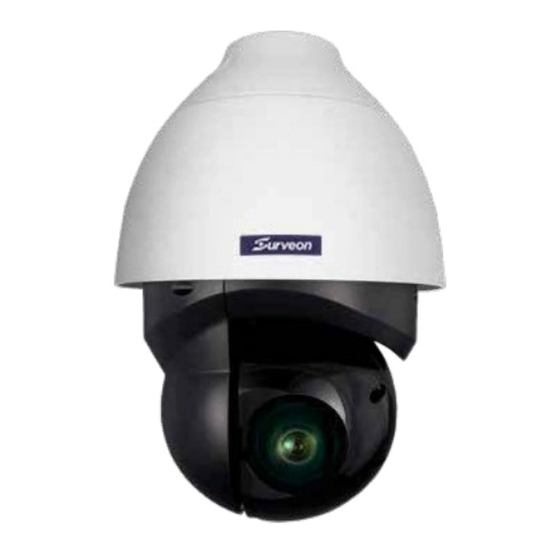

Overview With the latest encoding technology and built-in IR LEDs, Network IR PTZ Camera presents strong HDR and high sensitivity performance. The camera is capable of capturing high resolution images during daylight hours and even in pitch-black darkness. At night, or in any environment where there is low/zero lighting, Network IR PTZ Camera is able to provide effective illumination to the objects up to 200 meters away, and also deliver crystal clear and image with high quality up to 30x optical zoom lens in long distance.
Technical Specification Technical Specification CAM6371LZ CAM6571LZ Image Sensor 1/2.8” Megapixel Sony 1/3” Megapixel Progressive Progressive CMOS CMOS f4.3 – 129mm autofocus lens, F1.6(wide) – F4.7(tele) Lens 50dB High Dynamic Range (120dB) Day/Night ICR IR LED 200M 100M Min. Illumination 0.005lux@F1.6(B/W) 0 lux@F1.6(B/W with IR)
Page 11
RS-485 System Surveon SDK 2.0 Microsoft Windows 7/8 or above Viewing Browser Internet Explorer (10.0+)/Firefox/Safari System Software Surveon BVR v3.4 or above °C~50°C(-40°F~122°F) Temperature Operation:-40 Humidity 10%~90%, No Condensation Power 802.3at PoE+ / AC 24V± 20% Power Max. 44.5W (with IR & Heater on)
Package Contents Please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact the dealer for assistance. Outdoor Network IR PTZ M4 Security Screw with Camera Rubber Quick Guide...
Connectors Refer to the diagrams below for the positions of the reset button and various connectors of the camera. Definition of the reset button and the connectors are given as follow. Connector Definition Audio/Alarm I/O & RS- Audio/Alarm I/O & RS-485 connection Connector * Power Connector DC12V power connection...
Camera Cabling The outdoor models are being IP66-rated to prevent water from entering the camera. However, water might still enter the camera if it is being improperly installed. Please make sure the warnings below are strictly followed when installing the camera. Place all cables and the adaptor in dry and well-waterproofed ...
Connectors To power up the camera, connect the DC12V or AC24V / DC28-48V power adaptor to the power connector of the camera and the power outlet. Refer to the diagram and pin definition below for AC24V / DC28-48V power connection. Definition AC24V N DC28-48V +...
Page 17
Definition Definition Definition Definition Audio In Alarm In 1 Alarm In 3 RS-485 D- Audio Out Alarm Out A1 Alarm Out B1 RS-485 D+ GND (Alarm Alarm In 2 Alarm In 4 I/O & RS-485) Alarm Out A2 Alarm Out B2 (Audio I/O)
System Requirements To perform the camera via web browser, please ensure the PC is in good network connection, and meet the system requirement as described below. Items System Requirement Minimum : ® 1. Intel CoreTM i5-2430M @ 2.4 GHz 2. 2 GB RAM or more Personal Computer Recommended : ®...
Page 19
the IP address of the PC. If so, the IP address of the camera needs to be changed. Right click on the camera and click <Network Setup>. Meanwhile, record the MAC address of the camera, for future identification. Step 5: The <Network Setup> page will come out. Select <DHCP> and click <Apply>...
Page 20
the installation. A security warning window will pop up. Click on <Install> to carry on software installation. The download procedure of DCViewer software is specified as follows. Step 1: In the DCViewer installation window, click on <Next> to start the installation.
Page 21
Once the Viewer is successfully installed, the Home page of the camera will be shown as the figure below. Zoom and Focus Adjustment The live image will be displayed Home page when camera is successfully accessed. If zoom or focus is not at the desired position, please use the function buttons on the Home page for adjustment.
Setup Video Resolution Users can setup video resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default value of the video resolution is as below. H.264- 1920 x 1080 (60/50 fps) + Normal Mode H.264- 720 x 480 (60 fps) / 720 x 576 (50 fps) H.264- 1920 x 1080 (30/25 fps) +...
Page 23
For more details about the combinations of video resolution, please refer to the Network IR PTZ Camera Menu Tree in the supplied CD.
Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera.
Tech Support Information This chapter will introduce how to delete previously-installed DCViewer in the PC and how to setup the Internet security. Deleting the Exisiting DCViewer For users who have installed the DCViewer in the PC previously, please remove the existing DCViewer from the PC before accessing to the IP camera. Deleting the DCViewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>.
Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>.
Menu Tree There are six setting tabs, including <Home>, <System>, <Streaming>, <Camera>, <PTZ> and <Logout> on the Home Page. Home Users can monitor the live video of the targeted area. System Setting The administrator can set host name, system time, root password, network related settings, etc.
Home Page Click on the tab <Home> to access the <Home> Page. There are several function buttons on this page. Detailed information of each item is as described in the following section. 9.1.1 Function Items on Home Page Multiple Languages Support Multiple languages are supported, including German, English, Spanish, French, Italian, Japanese, Portuguese, Russian, Simplified Chinese and Traditional Chinese for the viewer window interface.
Page 29
Focus Adjustment Near / Far Buttons Click on the <MANUAL> button first, and users can adjust focus manually via <NEAR> and <FAR> buttons. Auto Focus (Continuous AF) Click on the <AUTO> button to enable AF mode. In this mode, the camera will keep in focus automatically and continuously regardless of zoom changes or any view changes.
Page 30
Run Preset / Cruise / Sequence After setup the Preset / Cruise / Sequence lines according to the PTZ Settings, select a Preset / Cruise / Sequence line and start it from the drop-down list. Quality Click to show/hide the video quality information including bitrate and compression.
Page 31
Snapshot Button Click on the button and the JPEG snapshots will automatically be saved in the appointed place. The default place of saving snapshots is: C:\. To change the storage location, please refer to section File Location of the next chapter for further details.
Page 32
Pan/Tilt Control Users can implement pan/tilt control by moving the cursor to the live video pane, then left click and drag the pointer in any direction. Optical / Digital Zoom Control In Normal View display mode, users can implement zoom in / out by moving the cursor to the live video pane and scrolling the mouse wheel.
System Under the tab <System>, the categories are shown as the configure page below. NOTE: The <System> configuration page is only accessible by the administrator. 9.2.1 System The System setting can be found under the path: System> System. Host Name The name is for camera identification.
Page 34
Time format Choose a time format (yyyy/mm/dd or dd/mm/yyyy) from the drop-down menu. The format of the date and time displayed above the live video window will be changed according to the selected format. Sync with Computer Time Select the item, and video date and time display will synchronize with the PC’s. NOTE: Users MUST click on the <Save>...
9.2.2 Security The Security setting can be found under this path: System> Security. Click on the <Security> category, there will be a drop-down menu with tabs including <User>, <HTTPS>, <IP Filter>, and <IEEE 802.1X>. 9.2.2.1 User The User setting can be found under this path: System> Security> User. Admin Password This item is for the administrator to reset password.
Page 36
Talk/Listen This item allows the appointed user in the local site (PC site) to communicate with, for instance, the administrator in the remote site. Manage User Delete user Pull down the <User name> drop-down list and select the username that is wished to be deleted.
Page 37
Streaming Authentication Setting This setting provides security against unauthorized users from getting streaming via Real Time Streaming Protocol (RTSP). If the setting is enabled, users will be requested to enter user name and password before viewing the live streams. There are three security modes available: Disable, Basic and Digest. Refer to the descriptions below for more details.
9.2.2.2 HTTPS The HTTPS setting can be found under this path: System> Security> HTTPS. <HTTPS> allows secure connections between the camera and the web browser using <Secure Socket Layer (SSL)> or <Transport Layer Security (TLS)>, which ensure camera settings or Username / Password info from snooping. It is required to install a self-signed certificate or a CA-signed certificate for implementing HTTPS.
Page 39
Provide the Certificate Information To create a Self-signed HTTPS Certificate or a Certificate Request to CA, please enter the information as requested. Create Self Signed Create Certificate Request Certificate Country State or Province Locality Organization Organizational Unit Common Name Valid Days Country ...
9.2.2.3 IP Filter The IP Filter setting can be found under this path: System> Security> IP Filter. With IP Filter, users can allow or deny specific IP addresses from accessing the camera. Enable IP Filter Check the box to enable the IP Filter function. Once enabled, the listed IP addresses (IPv4) in the <Filtered IP Addresses>...
Page 41
a. Convert 192.168.2.80 to binary numbers. The binary numbers are 11000000.10101000.00000010.01010000. The first 30 digits are the same with the binary numbers of 192.168.2.81, thus 192.168.2.80 will be filtered. b. Convert 192.168.2.79 to binary numbers. The binary numbers are 11000000.10101000.00000010.01001111. The first 30 digits are different with the binary numbers of 192.168.2.81, thus 192.168.2.79 will not be filtered.
9.2.2.4 IEEE 802.1X The IEEE 802.1X setting can be found under this path: System> Security> IEEE 802.1X. The camera is allowed to access a network protected by 802.1X/EAPOL (Extensible Authentication Protocol over LAN). Users need to contact with the network administrator for gaining certificates, user IDs and passwords.
9.2.3 Network The Network setting can be found under this path: System> Network. Click on the <Network> category, there will be a drop-down menu with tabs including <Basic>, <QoS>, <SNMP>, and <UPnP>. 9.2.3.1 Basic The Basic setting can be found under this path: System> Network> Basic. This setting page is for setting a new IP address for the camera, configuring other network-related parameters and activating IPv6 address (if the network supports it).
Page 44
Step 1: Double click on the program DeviceSearch.exe. Step 2: After its window appears, click on the <Device Search> button on the top. All the finding IP devices will be listed in the page. Step 3: Find the camera by its MAC address. Step 4: Then double click or right click and select <Browse>...
Page 45
Step 5: A prompt window requesting for the username and the password will appear. Enter the username and the password to login to the camera. IP address This is necessary for network identification. Subnet mask It is used to determine if the destination is in the same subnet. The default value is “255.255.255.0”.
Page 46
Advanced The following introduces the camera’s Web Server port, RTSP port, MJPEG over HTTP port, and HTTPS port. Web Server port The default web server port is 80. With the default web server port ‘80’, users can simply input the IP address of the camera in the URL bar of a web browser to connect the camera.
9.2.3.2 The QoS (Quality of Service) setting can be found under this path: System> Network> QoS. QoS allows providing differentiated service levels for different types of traffic packets, which guarantees delivery of priority services especially when network congestion occurs. Adapting the Differentiated Services (DiffServ) model, traffic flows are classified and marked with DSCP (DiffServ Codepoint) values, and thus receive the corresponding forwarding treatment from DiffServ capable routers.
9.2.3.3 SNMP The SNMP (Simple Network Management Protocol) setting can be found under this path: System> Network> SNMP. With Simple Network Management Protocol (SNMP) support, the camera can be monitored and managed remotely by the network management system. SNMP v1 / v2 Enable SNMP v1 / v2 ...
Page 49
Authentication Password The authentication password must be 8 characters or more. The input characters / numbers will be displayed as dots for security purposes. NOTE: The valid characters are A-Z, a-z, 0-9 and !#$%&’-.@^_~. Encryption Type There are two encryption types available: DES and AES. Select <AES> for a higher security level.
9.2.3.4 UPnP The UPnP setting can be found under this path: System> Network> UPnP. UPnP Setting Enable UPnP When the UPnP is enabled, whenever the camera is presented to the LAN, the icon of the connected cameras will appear in My Network Places to allow for direct access.
9.2.4 DDNS The DDNS setting can be found under this path: System> DDNS. Dynamic Domain Name System (DDNS) allows a host name to be constantly synchronized with a dynamic IP address. In other words, it allows those using a dynamic IP address to be associated to a static domain name so others can connect to it by name.
9.2.6 The FTP setting can be found under this path: System> FTP. The administrator can set the camera to send the alarm messages to a specific File Transfer Protocol (FTP) site when an alarm is triggered. Users can assign alarm message to up to two FTP sites. Enter the FTP details, which include server, server port, username, password and remote folder, in the fields.
9.2.8 Events (Alarm Settings) The Events setting can be found under this path: System> Events. Click on the <Events> category, there will be a drop-down menu with tabs including <Application>, <Motion Detection>, <Network Failure Detection>, <Periodical Event>, <Manual Trigger>, and <Audio Detection>. 9.2.8.1 Application The Application setting can be found under this path: System>...
Page 54
Triggered Action (Multi-option) The administrator can specify alarm actions that will take at an alarm occurrence. All options are listed as follows. Enable Alarm Output 1/2 Select these items to enable alarm relay outputs. Send Message by FTP/E-Mail The administrator can select whether to send an alarm message by FTP and/or E-mail when an alarm is triggered.
Page 55
Upload Image by E-Mail Select this item and the administrator can assign an E-mail address and configure various parameters. When the alarm is triggered, event images will be sent to the appointed E-mail address. <Pre-trigger buffer> function allows users to check what happened to cause the trigger.
Page 56
Record Video Clip Check this item and select a video recording storage type, <SD Card> or <NAS> (Network-Attached Storage). The alarm-triggered recording will be saved into the SD card or the NAS. Pre-trigger buffer recording function allows users to check what happened to cause the trigger.
Page 57
File Name Enter a file name in the File name field, e.g. image.jpg. The uploaded image’s file name format can be set in this section. Please select the one that meets the requirements. Add date/time suffix File name: imageYYMMDD_HHNNSS_XX.jpg Y: Year, M: Month, D: Day H: Hour, N: Minute, S: Second X: Sequence Number...
9.2.8.2 Motion Detection The Motion Detection setting can be found under this path: System> Events> Motion Detection. Motion Detection function allows the camera to detect suspicious motion and trigger alarms when motion volume in the detected area reaches / exceeds the determined sensitivity threshold value.
Page 59
When motion is detected, the signals will be displayed on the Motion window as shown below. Motion is detected by comparing sampling pixels in the detection area of two consecutive live images. Motion Detection In each set of Motion Detection Setting, the default setting for the Motion Detection function is <Off>.
Page 60
Detection level [1-100]: Users can configure detection level for each sampling pixel. Detection level is how much the camera can accept the differences between two sampling pixels. The smaller the value is, the more minor motions it detects. The default level is 10. Sensitivity level [1-100]: ...
Page 61
NOTE: Normally the setting range of the <Pre-trigger buffer> is 1 frame to 20 frames. However, the setting range will change accordingly if the frame rate of MJPEG on the <Video Frame Rate> setting page is 6 or smaller. Check the box <Continue image upload> to upload the triggered images during certain time or keep uploading until the trigger is off.
Page 62
Set the Image frequency as the upload frame rate. The setting range is from 1 frame to 15 frames per second. NOTE: Make sure SMTP configuration has been completed. Refer to section Mail for further details. Send HTTP Notification Check this item, select the destination HTTP address, and specify the parameters for event notifications by <Motion Detection>...
Page 63
File Name Enter a file name in the blank, e.g. image.jpg. The uploaded image’s file name format can be set in this section. Please select the one that meets the requirements. Add date/time suffix File name: imageYYMMDD_HHNNSS_XX.jpg Y: Year, M: Month, D: Day H: Hour, N: Minute, S: Second X: Sequence Number Add sequence number suffix (no maximum value)
9.2.8.3 Network Failure Detection The Network Failure Detection setting can be found under this path: System> Events> Network Failure Detection. Network Failure Detection allows the camera to ping another IP device (e.g. NVR, VSS, Video Server, etc.) within the network periodically and generates some actions in case of network failure occurs, for instance, a Video Server is somehow disconnected.
Page 65
Pre-trigger buffer recording function allows users to check what happened to cause the trigger. The pre-trigger buffer time range is from 1 sec. to 3 sec. Select <Upload for sec> to set the recording duration after alarm is triggered. The setting range is from 1 sec. to 99999 sec. Select <Upload during the trigger active>...
9.2.8.4 Periodical Event The Periodical Event setting can be found under this path: System> Events> Periodical Event. With Periodical Event setting, users can set the camera to upload images periodically to an FTP site or an E-mail address. For example, if the time interval is set to 60 seconds, the camera will upload images to the FTP site or the E-mail address every 60 seconds.
Page 67
Upload Image by E-Mail Select this item and the administrator can assign an E-mail address and configure various parameters. Images will be uploaded to the appointed E-mail address periodically. The <Pre-trigger buffer> function can define how many images to be uploaded before the triggered moment.
Page 68
Overwrite The original image in the FTP site will be overwritten by the new uploaded file with a static filename. Save Click on <Save> to save all the settings mentioned above.
9.2.8.5 Manual Trigger The Manual Trigger setting can be found under this path: System> Events> Manual Trigger. With Manual Trigger setting, the current image(s) or video can be uploaded to the appointed destination, such as an FTP site or an E-mail address. The administrator can specify the triggered actions that will take when the users switch the Manual Trigger button to ON.
Page 70
Check the box <Continue image upload> to upload the triggered images during certain time or keep uploading until the trigger is off. Select <Upload for sec> and enter the duration in the blank. The images of the duration will be uploaded to FTP when the alarm input is triggered.
Page 71
PTZ Function Assign a camera function: Preset, Sequence, Autopan or Cruise, and specify a Preset Point / Sequence Line / Autopan Path / Cruise Line for the camera to perform at an alarm occurrence. NOTE: Please refer to the sections through Preset Programming to Sequence Line Programming for details of Preset Point /...
Page 72
Select <Upload during the trigger active> to record the triggered video until the trigger is off. NOTE: Please make sure the local recording (with SD / SDHC card) or the remote recording (with NAS) is activated so that this function can be implemented. Refer to section Recording further details.
9.2.8.6 Audio Detection The Audio Detection setting can be found under this path: System> Events> Audio Detection. Audio Detection function allows the camera to detect audio and trigger alarms when audio volume in the detected area reaches / exceeds the determined sensitivity threshold value.
Page 74
Upload Image by FTP Select this item and the administrator can assign an FTP site and configure various parameters. When audio is detected, event images will be uploaded to the appointed FTP site. <Pre-trigger buffer> function allows users to check what happened to cause the trigger.
Page 75
Check the box <Continue image upload> to upload the triggered images during certain time or keep uploading until the trigger is off. Select <Upload for sec> and enter the duration in the blank. The images of the duration will be uploading by E-mail when the audio event occurs.
Page 76
File Name Enter a file name in the blank, e.g. image.jpg. The uploaded image’s file name format can be set in this section. Please select the one that meets the requirements. Add date/time suffix File name: imageYYMMDD_HHNNSS_XX.jpg Y: Year, M: Month, D: Day H: Hour, N: Minute, S: Second X: Sequence Number Add sequence number suffix (no maximum value)
9.2.9 Storage Management The Storage Management setting can be found under this path: System> Storage Management. Click on the <Storage Management> category, there will be a drop-down menu with tabs including <SD Card> and <Network Share>. 9.2.9.1 SD Card The SD Card setting can be found under this path: System> Storage Management>...
Page 78
Disk Cleanup Setting Users can enable automatic recordings cleanup by specifying the time <1~999 day(s) or 1~142 week(s)> and storage limits <1~99% full>. Recording List Each video file on the SD card will be listed in the Recording list. The maximum file size is 60 MB/per file.
9.2.9.2 Network Share (NAS) The Network Share setting can be found under this path: System> Storage Management> Network Share. Users can store the recording videos to a network share folder, or NAS (Network-Attached Storage). A NAS device is used for data storage and data sharing via network.
Page 80
Recording List Each video file on the Network Share will be listed in the Recording list. The maximum file size is 60 MB/per file. When the recording mode is set as <Always> (consecutive recording) and the NAS recording is also allowed to be enabled by events triggered, once events occur, the system will immediately implement events recording to the memory card.
9.2.10 Recording The Recording setting can be found under this path: System> Recording. In the <Recording> setting page, users can specify the recording schedule that fits the present surveillance requirement. Recording Storage Select a recording storage type, <SD Card> or <Network Share>. Activating the Recording Schedule Two types of schedule mode are offered: <Always>...
9.2.11 Schedule The Schedule setting can be found under this path: System> Schedule. This function allows users to setup schedules for features including: <Alarm Switch>, <Motion Detection> and <Network Failure Detection>. The function supports up to 10 sets of time frames in the time frame list. Setting Schedules Step 1.
9.2.12 File Location (Snapshots and Web Recording) The File Location setting can be found under this path: System> File Location. Users can specify a storage location on the PC or in the hard drive for the snapshots and the live video recordings. The default setting is: C:\. Once the setting is confirmed, click on <Save>, and all the snapshots and the web recordings will be saved in the designate location.
9.2.13.2 User Information The User Information function can be found under this path: System> View Information> User Information. The administrator can view the login information and privileges of each added user (refer to section Security). Get User Information All users in the network will be listed in the <User information> zone as shown below.
9.2.14 Factory Default The Factory Default setting can be found under this path: System> Factory Default. Users can follow the instructions on this page to reset the camera to factory default settings if needed. Full Restore Click on <Full Restore> to recall the factory default settings. The camera system will restart in 30 seconds.
9.2.16 Software Upgrade The Software Upgrade setting can be found under this path: System> Software Upgrade. NOTE: Make sure the upgrade software file is available before carrying out software upgrade. The procedure of software upgrade is as below. Step 1: Click on <Browse> and locate the upgrade file, for example, “ulmage_userland”.
9.2.17 Maintenance The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading the configuration file to the camera. Export Users can save the system settings by exporting a configuration file (.bin) to a specified location for future use.
Streaming Under the tab <Streaming>, there are categories including: <Video Format>, <Video Compression>, <Video OCX Protocol>, <Video Frame Rate>, and <Audio>. In the Streaming submenu, the administrator can configure specific video resolution, video compression mode, video protocol, audio transmission mode, etc.
9.3.1 Video Format (Video Resolution and Rotate Type) The Video Format setting can be found under this path: Streaming> Video Format. Video Resolution Under Video Resolution section, the available video resolution formats include MJPEG and H.264. Please refer to Appendix D: Video Resolution for more combination details.
Page 90
Video Rotate Type Users can change video display type if necessary. Selectable video rotate types include Normal video, Flip video, Mirror video, 90 degree clockwise, 180 degree rotate, and 90 degree counterclockwise. Refer to the following descriptions for the different video rotate type. Flip video ...
9.3.2 Video Compression The Video Compression setting can be found under this path: Streaming> Video Compression. This setting page allows the administrator to adjust the bit rate of MJPEG and H.264-1 / H.264-2 / H.264-3 / H.264-4. Higher value implies higher bit rate and higher visual quality.
9.3.3 Video OCX Protocol The Video OCX Protocol setting can be found under this path: Streaming> Video OCX Protocol. In the <Video OCX protocol> setting page, the administrator can select RTP over UDP, RTP over RTSP(TCP), RTSP over HTTP or MJPEG over HTTP, for streaming media over the network.
9.3.5 Audio (Audio Mode and Bit Rate Settings) The Audio Mode setting can be found under this path: Streaming> Audio. In this page, the administrator can adjust the sound transmission mode, the audio gain levels and the audio bit rate. Setting for enabling sound recording to the SD card is also available.
Page 94
Bit Rate Selectable audio transmission bit rate include 16 kbps, 24 kbps, 32 kbps, 40 kbps, uLAW (64 kbps), ALAW (64 kbps), AAC (128 kbps), PCM (128 kbps), PCM (256 kbps), PCM (384 kbps), and PCM (768 kbps). Higher bit rate will let higher audio quality and require bigger bandwidth.
Camera Under the tab <Camera>, there are categories including: <Exposure>, <White Balance>, <Picture Adjustment>, <IR Function>, <Noise Reduction>, <Profile>, <Backlight>, <Digital Zoom>, <WDR Function>, <Stabilizer>, and <TV System>.
9.4.1 Exposure The Exposure setting can be found under this path: Camera> Exposure. In the <Camera-Exposure> setting page, users can select either the <Full Auto> mode or adjust the parameter of the P-Iris Priority / Iris Priority / Shutter Priority mode for optimized video output in accordance with the operating environment.
Auto Shutter Mode In this mode, the camera will automatically adjust the shutter speed and the iris size according to the light intensity. The minimum shutter speed can be set from 1/500 to 1 sec.(NTSC) or 1/425 to 1/1.5 sec.(PAL). Shutter Priority Mode ...
Page 98
ATW Mode (Auto Tracing White Balance) With Auto Tracking White Balance function, the white balance in a scene will be automatically adjusted while temperature color is changing. The ATW Mode is suitable for environments with light source having color temperature in the range roughly from 2500K to 10000K.
9.4.3 Picture Adjustment The Picture Adjustment setting can be found under this path: Camera> Picture Adjustment. Brightness The brightness level of the images is adjustable from -12 to +13. Sharpness The sharpness level of the images is adjustable from +0 to +15. The edge of the objects is enhanced as the sharpness level increases.
9.4.4 IR Function The IR Function setting can be found under this path: Camera> IR Function. Day/Night Function This item is for users to define the action of the IR cut filter and IR LED lights. Refer to the descriptions of each option below to select a suitable mode. Auto Mode ...
Page 101
Day/Night Threshold This item is for users to set when the camera should switch from day mode to night mode or vice versa. The camera will sense the surrounding brightness, and the threshold value stands for the level of the light. Once the camera detects the light level reaches the set threshold, the camera will automatically switch to Day/Night Mode.
9.4.5 Noise Reduction The Noise Reduction setting can be found under this path: Camera> Noise Reduction. The camera provides multiple <Noise Reduction> options for delivering optimized image quality especially in extra low-light conditions. 3DNR With the 3D Noise Reduction function, the processor analyzes the differences between successive frames to adjust pixels and improve image quality.
9.4.6 Profile The Profile setting can be found under this path: Camera> Profile. Camera Profile allows users to setup the desired image parameters for specific environments with different time schedules. Users can setup at most 10 sets of camera parameter configuration under the Camera tab. To enable this function, users must setup the schedules in advance.
9.4.7 Backlight The Backlight setting can be found under this path: Camera> Backlight. The Backlight Compensation function prevents the center object from being too dark in surroundings where excessive light is behind the center object. Select <On> to enable the Backlight function; otherwise, select <Off> to turn off the function.
TV System as “60fps / 50fps” WDR function is designed to solve contrast or changing light issues and to enhance the video display quality. Different level options for WDR function include Low, Mid and Hi. The higher the level, the wider the dynamic range is. Thus, the camera can catch a greater scale of brightness.
9.4.11 TV System Select the video format that matches the present TV system. The following table shows the available video formats of the Network IR PTZ Camera. Video Format 60 fps WDR 2 Shutter NTSC WDR 3 Shutter 50 fps WDR 2 Shutter WDR 3 Shutter...
Under the tab <PTZ>, there are categories including: <Preset>, <Cruise>, <Auto Pan>, <Sequence>, <Home Function>, <Tilt Range>, <Privacy Mask>, <PTZ Setting> and <RS485>. 9.5.1 Preset The camera supports up to 256 Preset Points. Please refer to the instructions below to set a Preset Point. Preset Setting Follow the steps to setup a Preset Point Step 1.
9.5.2 Cruise The Cruise Programming can be found under this path: PTZ> Cruise. The camera supports up to 8 Cruise Paths. Please follow the instructions below for Cruise Path setup. Cruise Setting Refer to the steps below to setup a Cruise Path. Step 1.
9.5.3 Auto Pan The Auto Pan Programming can be found under this path: PTZ> Auto Pan. The camera supports 4 Auto Pan Paths. Please refer to the instructions below to set an Auto Pan Path. Auto Pan Setting Follow the steps to setup an Auto Pan Path. Step 1.
9.5.4 Sequence The Sequence Line Programming can be found under this path: PTZ> Sequence. The camera supports a total of 8 Sequence Lines; each Sequence Line consists of up to 64 Preset Points. Please refer to the instructions below to program a Sequence Line.
9.5.5 Home Function The Home Function can be found under this path: PTZ> Home Function. Users are able to set an operation mode to ensure constant monitoring. If the camera idles for a period of time, the selected function will be activated automatically;...
9.5.6 Tilt Range The Tilt Range setting can be found under this path: PTZ> Tilt Range. The camera’s tilt angle is adjustable from minimum −20° to maximum +100°. Please enter the desired minimum and maximum tilt angle into the corresponding fields respectively. Click on the <Set> button to save the tilt angle settings.
Page 113
Follow the steps below to setup a privacy mask. Step 1. Set Switch to <On> and click on <Set> to turn on the Privacy Mask function. Step 2. Select a color for the mask from the <Color> drop-down list and click on <Set>...
Step 5. To change the shape and the size of the mask, click any edge of the mask and draw it outward/inward. Step 6. If needed, set up Zoom/Focus/Iris. Step 7. Click on <Set> to save and apply the setting. The Privacy Mask will be displayed in the color users set previously.
Page 115
Speed by Zoom This function allows the camera to adjust the pan/tilt speed automatically by the internal algorithm when the zoom ratio is changed. The rotating speed will become slower as the zoom ratio gets larger. Click on <Set> to save the setting. Auto Calibration (Servo Feedback) Integrating Servo Feedback technology, the camera would calibrate and precisely return to the previous position without stalling when the deviation of...
2.5.9 RS485 The RS485 setting can be found under this path: PTZ> RS485. This page is for users to activate the pan/tilt function and select the RS-485 protocol which the Pan Tilt Head uses. Pan/Tilt Control This item allows users to disable or enable the Pan/Tilt Control. Click on <Save>...
Appendix A: Install UPnP Components Please follow the instructions below to install UPnP components on Windows Vista / Windows XP / Windows 7. Step 1: In Windows, go to <Start>, click on <Control Panel>, and then double click on <Add or Remove Programs>. Step 2: Click on <Add/Remove Windows Components>...
Appendix B: IP Addresses from Decimal to Binary Follow the example below to convert the IP addresses to binary numbers. Use the calculator on the computer for conversion. The calculator can be found under this path: Start> All Programs> Accessories> Calculator. For Windows XP and Windows Vista, click <View>...
