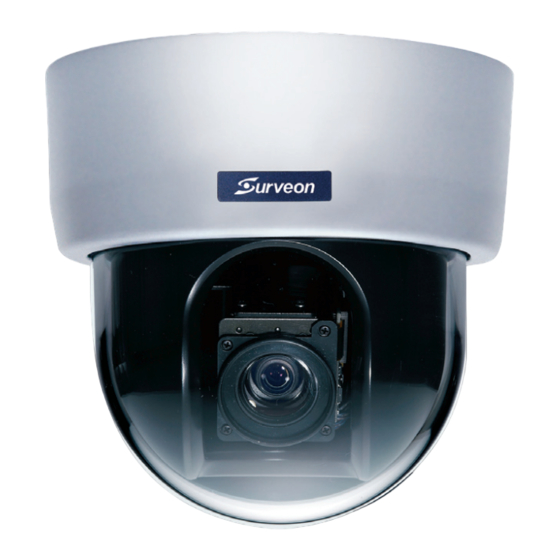

- Page 1 CAM5210 Megapixel PT Dome Indoor Network Camera Hardware Manual Release 1.0 March, 2011...
- Page 2 Product specifications are also subject to change without notice. Trademarks Surveon and Surveon logo are trademarks of Surveon Technology Inc. Other names prefixed with “NVR” are trademarks of Surveon Technology Inc. All other names, brands, products or services are trademarks or registered...
-
Page 3: Table Of Contents
Table of Contents Copyright Statement................II Safety Precautions ................IV Device Site Recommendations..............IV Regulatory Compliance Information ............V Chapter 1. Product Overview............... 1 1.1. Features and Benefits ............... 1 Chapter 2. Hardware Overview ............2 2.1. Overview ................2 Side View ...................2 Bottom View ................3 2.2. -
Page 4: Safety Precautions
Safety Precautions Electric Shock Warning This equipment may cause electric shocks if not handled properly. Access to this equipment should only be granted to trained operators and maintenance personnel who have been instructed of, and fully understand the possible hazardous conditions and the consequences of accessing non-field-serviceable units such as the power supplies. -
Page 5: Regulatory Compliance Information
Regulatory Compliance Information Regulatory Compliance Information FCC/CE Class A IEC 60950 Shown below is the location of the compliance statement label. (applies in the U.S. and Canada) FCC Class A Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules (47 CFR, Part 2, Part 15 and CISPR PUB. - Page 6 For Power Supplies’ compatibility to China Compulsory Certification. Surveon is committed to being properly prepared and taking all the necessary steps that will result in our compliance with the new European directive, RoHS (2002/95/EC), on or before the specific dates set forth in those applicable laws and regulations.
-
Page 7: Chapter 1. Product Overview
With PoE, a camera can still operate in the event of a power failure if it is connected to a centralized backup power with an Uninterruptible Power Supply. Surveon Network Camera Hardware Manual... -
Page 8: Chapter 2. Hardware Overview
Surveon CAM5210 Chapter 2. Hardware Overview 2.1. Overview Side View www.surveon.com... -
Page 9: Bottom View
Bottom View Surveon Network Camera Hardware Manual... -
Page 10: Functions
Surveon CAM5210 2.2. Functions Status LED indicator The LED will light up after the camera has successfully completed the boot process. The Status LED indicator in the rear of the camera can be set to light whenever the unit is accessed, or be shut off. - Page 11 Output) Max voltage the GND pin. If used = 24V DC with an external relay, a (to the diode must be transistor) connected in parallel with the load, for protection against voltage transients. Ground Description Surveon Network Camera Hardware Manual...
- Page 12 Surveon CAM5210 LED Indicators: Shows steady green for normal operation, flashing when the camera is accessed. Green Note: The Status LED can be configured to be unlit. Steady during startup, reset to factory default or Status when restoring settings. (rear) Flashes every 0.2 sec during firmware upgrade.
-
Page 13: Chapter 3. Troubleshooting
Remove the SD/SDHC card from the slot. When LED turns green, firmware upgrade is completed. A SD/SDHC card with at least 13MB free space is required for firmware Note: upgrade. The device will enter firmware upgrade mode again if the SD/SDHC card is not removed Surveon Network Camera Hardware Manual... -
Page 14: Emergency Recovery Procedure
Surveon CAM5210 3.3. Emergency Recovery Procedure If the status LED shows steady amber for over 1 minute, the camera will become unresponsive and the upgrade process may have failed. Please contact with your reseller Surveon technical support support@surveontech.com. 3.4. Resetting to Factory Default Settings To reset the device to the factory default settings: Make sure the device is in operation mode. -
Page 15: Chapter 4. Technical Specifications
Send snapshot or video clip by FTP or email, record to NAS, record to local storage, trigger DO Supported IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DDNS, SMTP, FTP, HTTP, protocols CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP Surveon Network Camera Hardware Manual... - Page 16 Surveon CAM5210 Ethernet 10/100 Base-T / RJ45 Local storage SD/SDHC x 1 (Class 4/Class 6 only) RS-485 USB 2.0 x 1 Surveon SDK 2.0 Microsoft Windows XP/Vista/7 Browser Microsoft IE 6.0 or above Software Surveon VMS 2.4.1 Temperature Operation: -10°C~ 50°C (14°F~122°F) Storage: -30°C ~ 60°C (-22°F~140°F)
