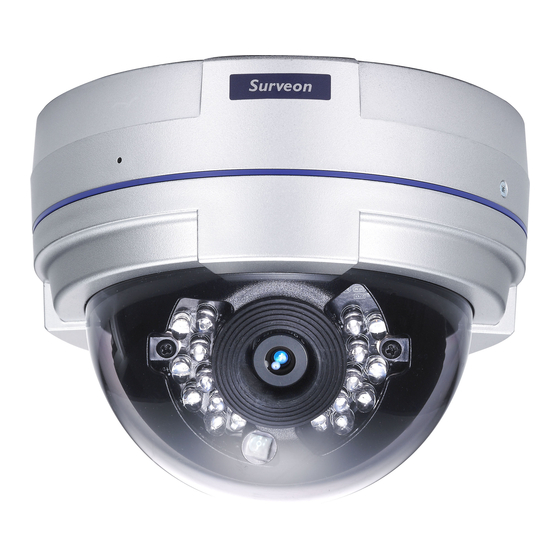

- Page 1 CAM4310 Megapixel Dome Indoor Network Camera Hardware Manual Release 1.0 December, 2010...
- Page 3 Product specifications are also subject to change without notice. Trademarks Surveon and Surveon logo are trademarks of Surveon Technology Inc. Other names prefixed with “NVR” are trademarks of Surveon Technology Inc. All other names, brands, products or services are trademarks or registered...
-
Page 4: Table Of Contents
Table of Contents Copyright Statement................I Table of Contents ................II Safety Precautions ................III Device Site Recommendations..............III Regulatory Compliance Information ............IV Chapter 1. Product Overview..............1 1.1. Features and Benefits ..............1 Chapter 2. Hardware Overview .............. 3 2.1. Overview ................3 2.2. Cables ..................4 2.3. -
Page 5: Safety Precautions
Safety Precautions Electric Shock Warning This equipment may cause electric shocks if not handled properly. Access to this equipment should only be granted to trained operators and maintenance personnel who have been instructed of, and fully understand the possible hazardous conditions and the consequences of accessing non-field-serviceable units such as the power supplies. -
Page 6: Regulatory Compliance Information
Regulatory Compliance Information Regulatory Compliance Information FCC/CE Class A IEC 60950 Shown below is the location of the compliance statement label. (applies in the U.S. and Canada) FCC Class A Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules (47 CFR, Part 2, Part 15 and CISPR PUB. - Page 7 CCC For Power Supplies’ compatibility to China Compulsory Certification. Surveon is committed to being properly prepared and taking all the necessary steps that will result in our compliance with the new European directive, RoHS (2002/95/EC), on or before the specific dates set forth in those applicable laws and regulations.
-
Page 9: Chapter 1. Product Overview
With onboard recording capability, our network cameras can truly be online 24/7. The microSD/SDHC card slot design ensures sufficient recording capacity for an over-weekend period even at full frame rate and high resolution. Surveon Network Camera Hardware Manual... - Page 10 Surveon CAM4310 Tampering Detection* This is an intelligent video analytics application available only in selected network cameras in the market. When a camera is manipulated in any way (e.g. accidental redirection, blocking, defocusing, spray-painted, covered or damaged), it can automatically trigger recording and alert notifications.
-
Page 11: Chapter 2. Hardware Overview
Hardware Overview Chapter 2. 2.1. Overview Surveon Network Camera Hardware Manual... -
Page 12: Cables
Surveon CAM4310 2.2. Cables www.surveon.com... -
Page 13: Functions
PIRs, door/window contacts, glass break detectors, etc. When a signal is received the state changes and the input becomes active (shown under Event Configuration > Port Status). Auxiliary power and GND Surveon Network Camera Hardware Manual... - Page 14 Surveon CAM4310 Ground Description Electrically connected in Voltage: 12V Auxiliar parallel with the connector y DC for the power supply, this Max: 1.2W pin provides an auxiliary Power connector for main power (not to to the unit. This pin can...
- Page 15 Flashes every 0.2 sec during firmware upgrade. Amber (On:0.2 sec, Off: 0.2 sec) Note: Startup or reboot may have failed if the status LED shows steady amber for over 1 minute. Unlit No network connection. Surveon Network Camera Hardware Manual...
-
Page 16: Chapter 3. Troubleshooting
Surveon CAM4310 Troubleshooting Chapter 3. 3.1. Checking Firmware Version Connect to the camera through a web browser. Firmware version information will be under System > System Status > Firmware version. 3.2. Upgrading Firmware Upgrading with a firmware file on a PC: Power ON the device. -
Page 17: Resetting To Factory Default Settings
(including the IP address) to be reset. To reset the unit without changing parameters, disconnect and reconnect the power adapter. To check for updated information on your camera, or for any other questions, please refer to http://www.surveontech.com/support/faq.asp or contact technical support at support@surveontech.com. Surveon Network Camera Hardware Manual... -
Page 18: Chapter 4. Technical Specifications
Surveon CAM4310 Technical Specifications Chapter 4. CAM4310 Image sensor 1/2.7" 2 megapixel progressive scan CMOS Lens 4.2mm, F1.8 Diagonal: 122°~35° Viewing Horizontal: 96°~28° Angle Vertical: 72°~21° 1.6 Lux @ F1.8 illumination Shutter time 1/5 ~ 1/15,000 s Pan:0°~340° Camera Angle Adjustment Tilt 30°~90°... - Page 19 PoE (IEEE 802.3af) with Class 3 Power Max. 7W without AUX Power consumption ø128.8mm x 98.6mm(H) Dimension ø5.07” x 3.88”(H) Net: 620g (1.37lb.) Weight Gross: 1290g (2.85lb.) Safety: LVD Certification EMC: FCC, CE *Supported in future phases. Surveon Network Camera Hardware Manual...
