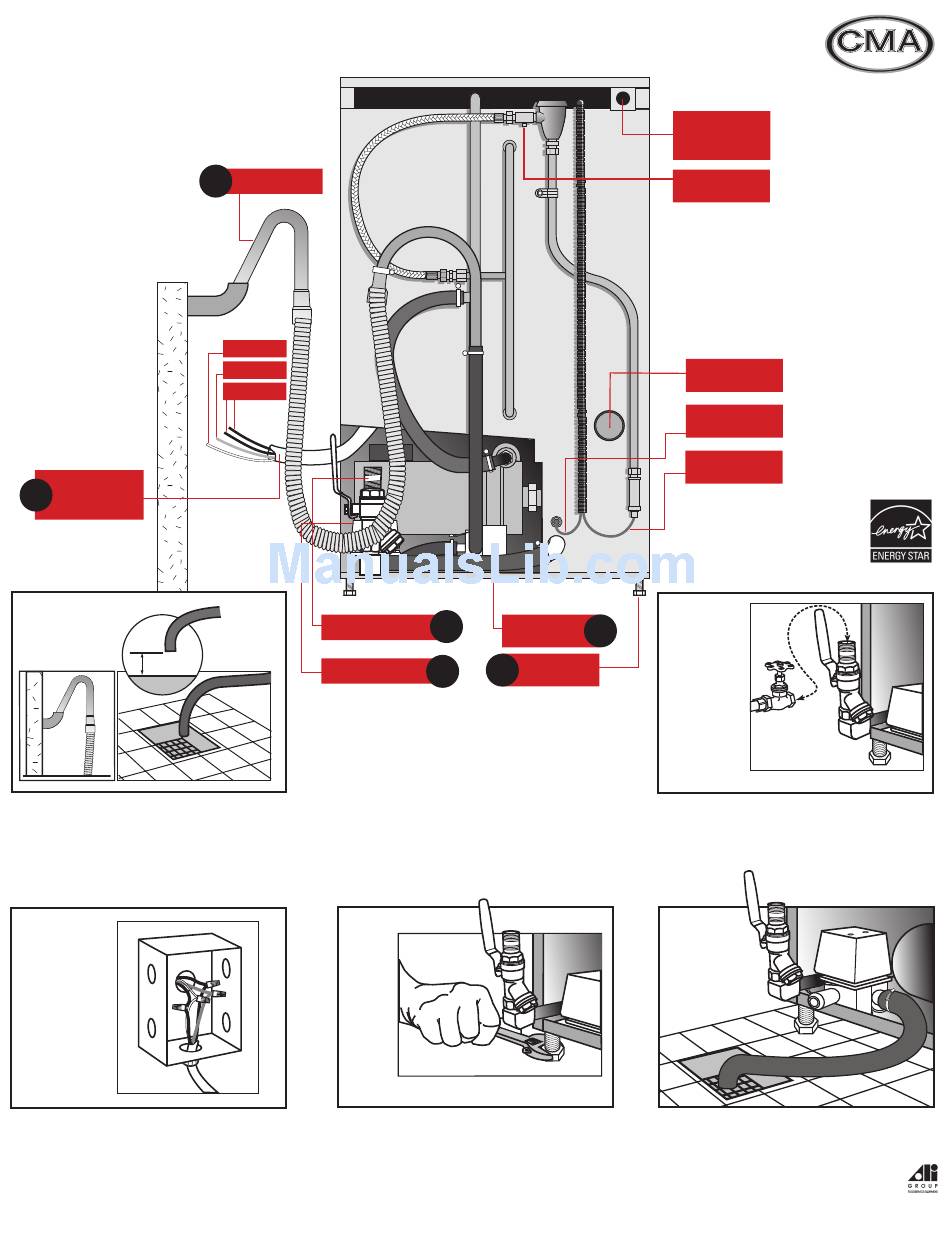

CMA Dishmachines 180UC Quick Setup Instructions

180UC
Quick Setup
Instructions
WARNING: Electrical and
plumbing connections need
to be made by a qualified
service person who will
comply with all available
Federal, State and Local
Health, Electrical,
Plumbing and Safety
codes.
HARD WIRE
2
FOUR WIRE
POWER SUPPLY
STEP
1
1"AIR GAP
WALL
DRAIN
Connect the drain hose to wall or floor drain. The
floor drain must have a 1 inch air gap between
drain hose and floor drain.
STEP
2
Connect hard wire power supply from dishmachine
to power box. (Two hot wires, one neutral and one
ground.)
1
DRAIN HOSE
NEUTRAL
GROUND
HOT
1/2" WATER INLET
DRAIN VALVE
FLOOR DRAIN
STEP
3
Level dishmachine by adjusting leveling legs.
Dishmachine must be level front and back.
4
5
PUMP DRAIN
MOTOR
5 3 LEVELING
LEGS
800-854-6417
110V POWER
CONNECTION
FOR DISPENSER
RINSE
INJECTION
DETERGENT
INJECTION
WASH
SENSOR
RINSE
SENSOR
STEP
4
Connect dishmachine to hot water source, minimum
temperature 180°F will remain in wash cycle until
booster heater temperature reaches 180°F, then it
will advance into rinse cycle.
STEP
5
When ever possible, remove pump drain if a floor
drain is available near by. Remove drain pipe and
place drain hose on the drain valve and allow
machine to gravity drain.
DISHMACHINES
8-2012
