181GW
Quick Setup
Instructions
WARNING: Electrical and plumbing
connections need to be made by a
qualified service person who will
comply with all available Federal, State
and Local Health, Electrical,Plumbing
and Safety codes.
STEP
1
1"AIR GAP
FLOOR DRAIN

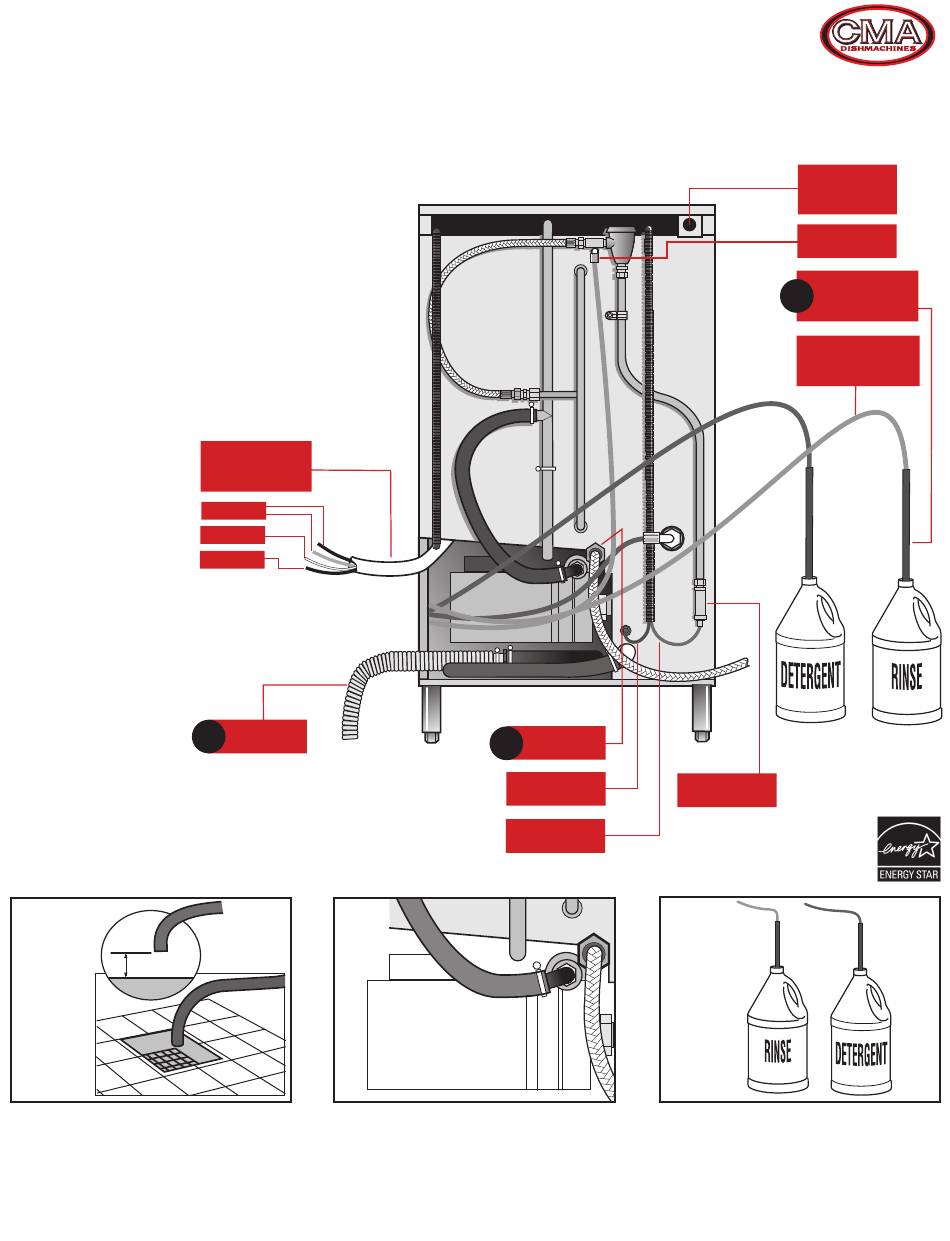

Connect the drain hose to floor drain. The floor
drain must have a 1 inch air gap between drain
hose and floor drain.
PN: 10130.00
HARD WIRE
FOUR WIRE
POWER SUPPLY
HOT
NEUTRAL
GROUND
1
DRAIN HOSE
STEP
2
Connect dishmachine to hot water source
120°F - 140°F. Minimum temperature will remain in
wash cycle until booster heater temperature reaches
180°F, then it will advance into rinse cycle.
WATER
2
LINE
WASH
SENSOR
RINSE
SENSOR
STEP
3
Insert tube stiffener with chemical tubing into
corresponding chemical dispensers.
110V POWER
CONNECTION
FOR DISPENSER
RINSE
INJECTION
TUBE
3
STIFFENER
CHEMICAL
TUBING
RED
BLUE
DETERGENT
INJECTION
BLUE
RED
11-2016
