CV/GATE OUTPUT MODE

When the CV/Gate output expansion board is installed, each track can be configured to
send out CV using either Volt/Octave or Hz/Volt and Gate using either positive trigger or
negative trigger. This allows the CV outputs to be used with a wide range of different
analog devices. Each of the eight tracks can have a different setting for CV MODE.
NOTE
: The CV MODE can only be set when the CV/Gate expansion
board is installed and enabled.
The available modes are:
PSvO
nGvO
PShv
nGhv

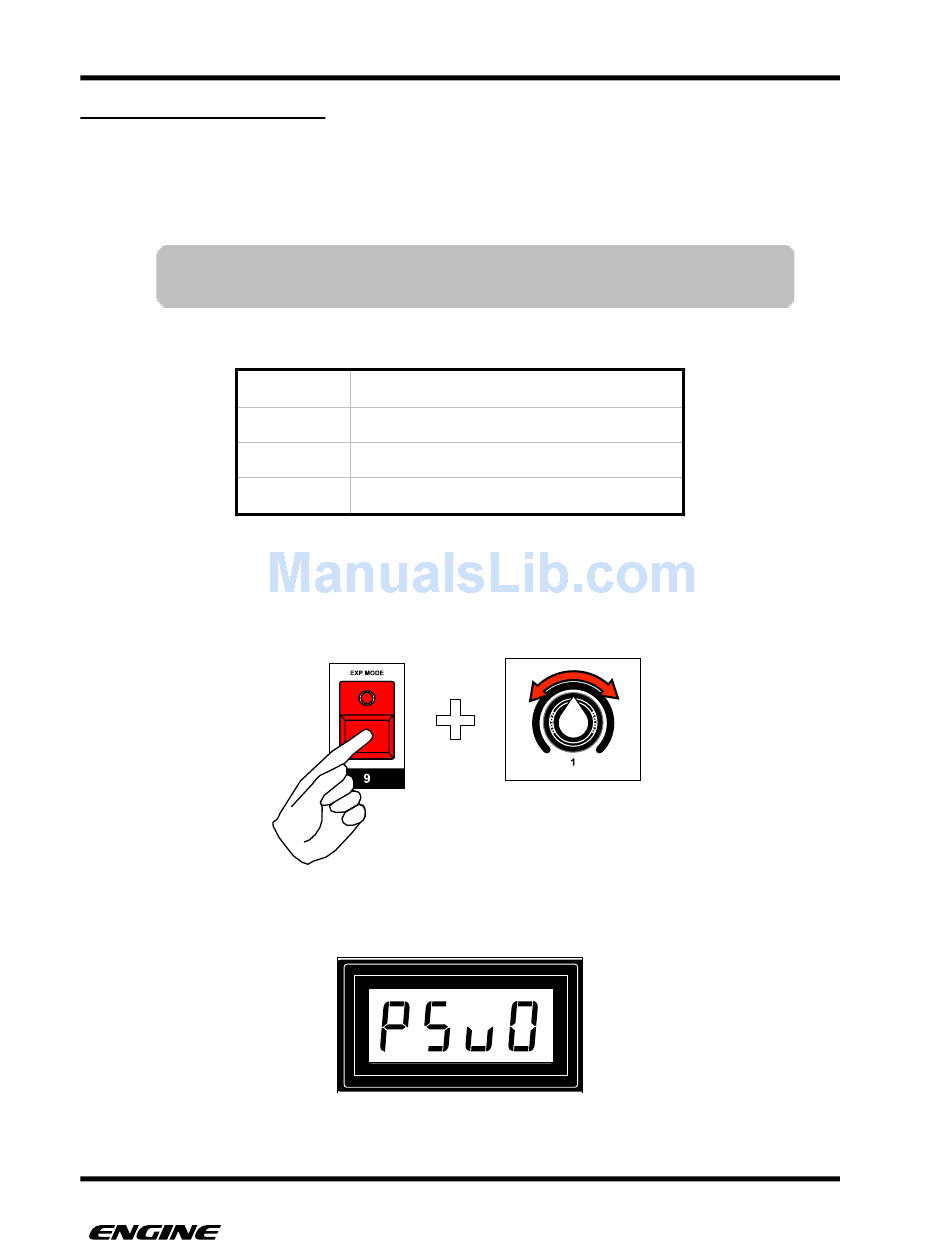

To set the CV MODE for a track, while in UTILITY MODE, press and hold EXP MODE
(step 9) button. Then rotate control knob 1 to select the desired mode.
The current CV/Gate output mode will be shown on the LED display while holding the EXP
MODE button.
Positive gate, 1 volt per octave
Negative gate, 1 volt per octave
Positive gate, hertz per volt
Negative gate, hertz per volt
