CV EXPANSION

MONOPHONIC/POLYPHONIC CONVERSION

In monophonic mode, each of the 8 CV/Gate pairs acts independently, each can be
configured with a different MIDI channel, and slide mode. This allows you to control
eight different analog devices from incoming MIDI.
In polyphonic mode, the 8 CV/Gate pairs are assigned to the same MIDI channel and
use a dynamic voice allocation method to play up to eight notes. This can be useful for
playing chords on analog synthesizers that have multiple oscillators.

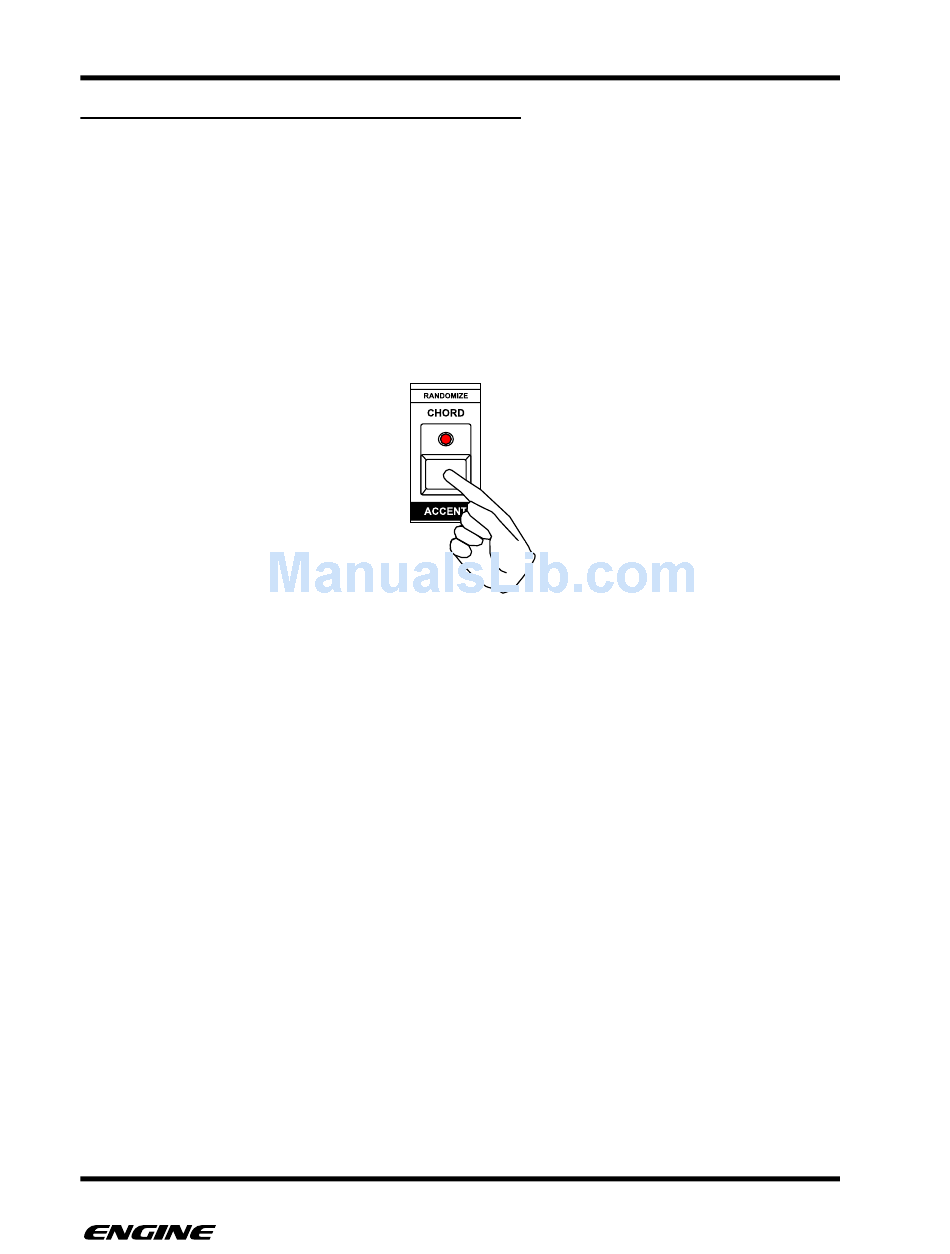

To turn polyphonic mode on or off, click the CHORD (accent) button. Polyphonic mode is
indicated by a lit CHORD LED.
When in polyphonic mode, the MIDI channel assigned to conversion channel 1 is used for
all eight CV/Gate outputs. Slide is not used in polyphonic conversion mode.
149 USER GUIDE
