Cv Mode: 4 Synths - Social Entropy Engine User Manual

GLOBAL CONFIG

CV MODE: 4 SYNTHS

In "4 synths" mode, you can choose four tracks to share the outputs. Each selected track
will have two output pairs.
For synth type patterns, the outputs produce CV and Gate signals on one output pair The
second output pair generates an accent trigger on GATE/TRIG and a variable velocity
voltage on CV/VEL.
For drum type patterns, the outputs are tied to the EXT and BD drum instruments. The
outputs produce triggers from the GATE/TRIG outputs and accent triggers from the CV/
VEL outputs.

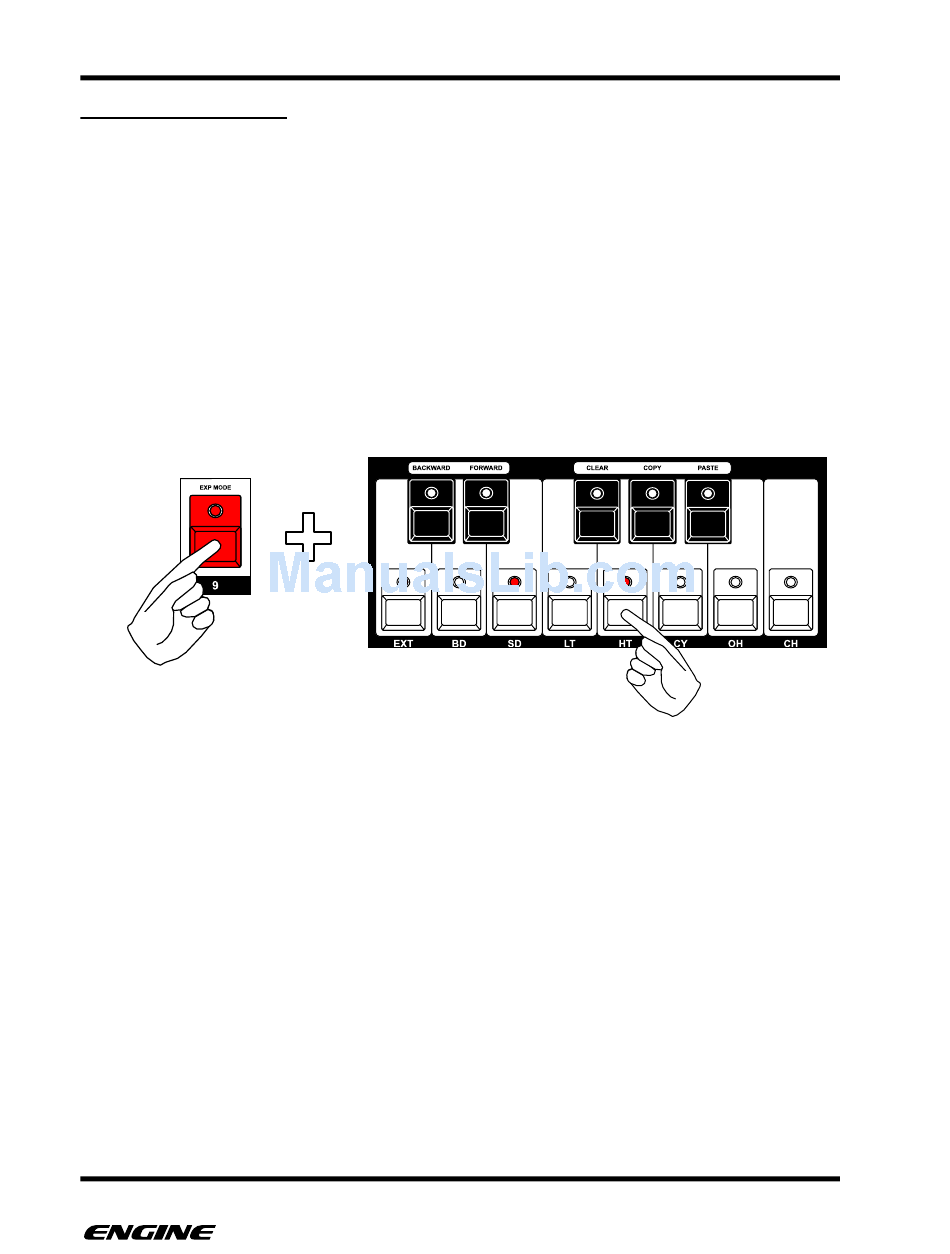

To select the four assigned tracks, when setting CV MODE to "4Syn", click the track select
buttons to turn on/off four tracks.
130 USER GUIDE
