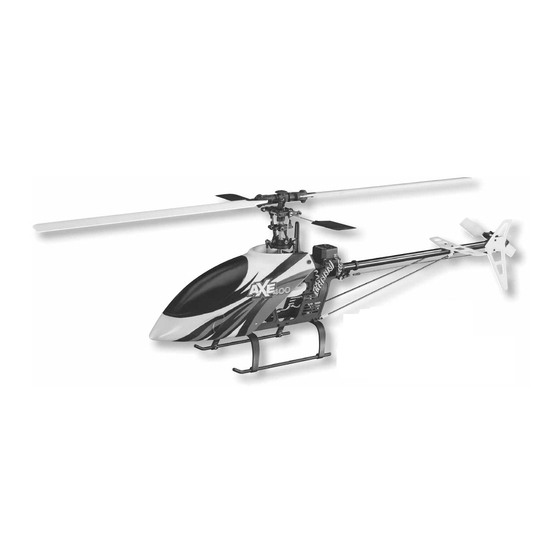

Heli-Max AXE 400 3D Rx-R Instruction Manual

INTRODUCTION
Thank you for purchasing the Heli-Max AXE
Rx-R Helicopter. We are certain you will get many hours of
enjoyment out of this model. If you should have any questions
or concerns, please feel free to contact us at:
helihotline@hobbico.com.
For the latest technical updates or manual corrections to the AXE
400 3D Rx-R, visit the Heli-Max web site at www.helimax-rc.
com. Open the "Helicopters" link, and then select the 400 3D
Rx-R. If there is new technical information or changes to this
model, a "tech notice" box will appear in the upper left corner of
the page.
ITEMS THAT MUST BE
PURCHASED SEPARATELY
RADIO SYSTEM
Minimum 6-Channel Helicopter Radio
®
• FUTK6900 Futaba 6EX 6-Channel 2.4GHz Transmitter/
Receiver
• FUTK7005 Futaba 7C 7-Channel 2.4GHz Heli Tx/Rx
No Servos
• FUTK9251 Futaba 10C 10-Channel 2.4GHz Heli Tx/Rx
Mode 2
FLIGHT BATTERY
Hovering, Basic Aerobatics and 3D
• GPMP0406 11.1V 2000mAh Battery LiPo Flight Battery
• GPMP0617 Great Planes
2200mAh 25C Power Series
™ 400 3D
Hovering, Basic Aerobatics, Mild 3D and Aggressive 3D
• GPMP0520 Great Planes LiPo 11.1V 2200mAh 25C
T-Rex MX450 Heli
• FPWP0327 FlightPower LiPo 11.1V 2170mAh 25C
EVO25 3S Balance
Also required is an appropriate battery charger for your
fl ight battery.
WARNING: To prevent the possibility of the main
rotors turning during set up, you must disconnect the
main drive motor from the ESC or remove the pinion
gear from the motor. Failure to do this may result
in injury to yourself or damage to the model and its
surroundings.
™
® ™
ElectriFly LiPo 11.1V
™
