Installation Instructions
IN1261
For Stoves

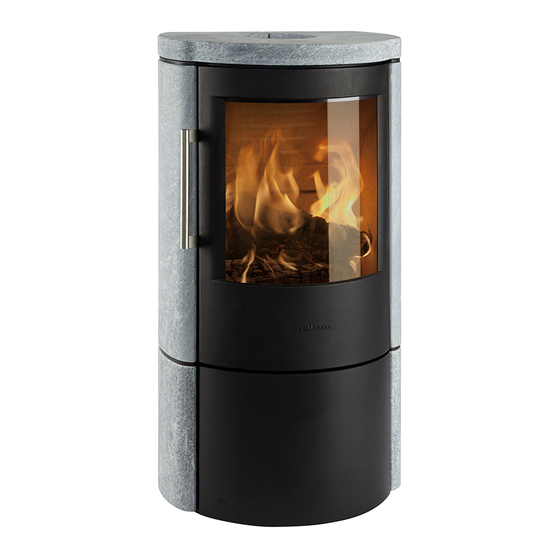

Hwam 3600 Range
The Above Range of stoves Are
Suitable For use in smoke Control
Areas
This manual must be used in conjunction with document
IN1173 The Wood and Mutlifuel Chimney and Installation Guide,
This Manual Must Always be Available to the Stove Operator
Part No.
Model Name
Serial Number
1
E & OE
Instructions Part number IN1261 Ed A
© EUROHEAT DISTRIBUTORS (H.B.S) LTD. July 2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HWAM 3600 Range
Summary of Contents for HWAM 3600 Range
-
Page 1: Installation Instructions
Installation Instructions IN1261 For Stoves Hwam 3600 Range The Above Range of stoves Are Suitable For use in smoke Control Areas This manual must be used in conjunction with document IN1173 The Wood and Mutlifuel Chimney and Installation Guide, This Manual Must Always be Available to the Stove Operator Part No. -
Page 2: Table Of Contents
Contents Instalation Instructions Subject Page Important Notes............Model Identification..........Cureing Process............About Differant Fuels..........The Clean Air Act and Smoke Control Areas..Technical Details............Hearth Details............Fireplace Design............. Insallation Clearances..........Fitting The Internal Parts........Grate Cover Plate............ Flue Draft..............E & OE Instructions Part number IN1261 Ed A ©... -
Page 3: Important Notes
IMPORTANT The installation of this appliance must comply with all current BS 8303 local regulations, including those referring to national and European Standards before it can be operated. The stove is not suitable for a shared flue. However, for England and Wales, only, the coming into force on 1st April 2002 of SI 2002 No 440 exempts the householder from this legal requirement for the installation of solid fuel fired appliance whose rated heat output is 50kW or less in a building having no more than 3 storeys (excluding any basement) if a Competent Engineer is employed who is registered under the Registration Scheme for Companies and Engineers involved... -
Page 4: Model Identification
The Model Range Explained Thank you for purchasing your stove and helping to protect our environment. Hwam and Euroheat insist on progressive development to produce products which are market leading. Our aims are to produce stoves with the latest innovations, user friendly operation and high efficiency for lower cost operation. -
Page 5: About Differant Fuels
Multifuel And Wood Stoves Gas and oil are consistent fuels and stoves can be designed to obtain the maximum heat from them with the user having to do no more than choose a heat setting. Solid fuels are almost infinitely variable and however well a stove has been designed, its performance will ultimately depend on the way the user operates it. - Page 6 Smoke control area`s The Hwam 3600 ranges are only considered suitable for exemption under the Clean Air Act when burning untreated dry wood. The appliance should only be used to burn wood or authorised fuels. For details of authorised fuels that are suitable for the appliance please contact your appliance distributor.
- Page 7 Choice Of Logs Never burn wood that is not dry or wood that has been subject to a manufacturing process, such as chipboard, as these contain resins of uncertain toxicity when burned. For the same reasons, wood that has been painted or treated with a preservative should never be burned.
-
Page 8: The Clean Air Act And Smoke Control Areas
(other than “authorised” fuels) have been exempted by an Order made and signed by the Secretary of State or Minister in the devolved administrations. The Hwam 3600 range of stoves has been recommended as suitable for use in smoke control areas when burning [fuel]. -
Page 9: Technical Details
The test fuel is wood. Model Name Heat Output Flue Flue Gas Nominal Draught Temperature Wood Nominal deg C Heat Output Hwam 3600 Range 6.kW 12pa Model Flue Size Air Requirement Efficiency Efficiency Weight Equivalent Area as Net % Gross % Approved Document J Hwam 3610 6”... -
Page 10: Hearth Details
150mm to each side measuring from the closed door of the combustion chamber. The Hwam range of stoves have been tested and conform to standards where the hearth temperature does not exceed 100°C This means a hearth of 12mm of noncombustible material can be used. -
Page 11: Fireplace Design
Fireplace Design Do not be tempted to fit the stove into an unsuitable fireplace. Beyond the requirements of Building Regulations and access to facilitate servicing the stove, providing a setting which will compliment a stove is not a luxury, it is the practicality of making the most of an investment. A good builder or fireplace specialist will be able to transform even the most utilitarian of fireplaces. -
Page 12: Installation Clearances
Installation Clearances If the stove is to be installed into a fireplace recess the installation must comply to BS8303 1 to 3: 1994 Free Standing Installation From non combustible back wall 100mm From combustible back wall 150mm From non combustible side wall 100mm From combustible side wall 400mm... -
Page 13: Fitting The Internal Parts
Fitting The Internal Parts Before the stove is installed, you must ensure that all the internal parts are fitted correctly. 1, Baffle plate should be placed on the steel rail and the holder at the front middle. 2. The baffle plate is suspended on three hooks beneeath the top plate. One of these hooks has an additional flap that is bent upwards for protection when in transport. -
Page 14: Grate Cover Plate
Grate Cover Plate Your HWAM stove is supplied with a loose cover plate for the riddling grate. This is a 3 mm thick steel plate. It is placed on top of the riddling grate and prevents the embers from falling into the ash pan. The cover plate is raised approx. -
Page 15: Flue Draft
Maintenance Instructions Automatic Combustion Control Lift off the rear panel. On a cold stove, the starting point of the mechanism is controlled. The starting point on a cold stove is about 30° above horizontal. It should move easily and spring loaded when you push it, no matter if the stove is cold or hot. With a rising or falling temperature it should move gradually. - Page 16 Complete the Stoves Registration Form and Pass to User for Registration Euroheat and Hwam have a policy of continual research and development and reserve the right to modify its appliances without prior notice. We make every effort to ensure that the information provided in this document is correct and accurate at the time of printing.
