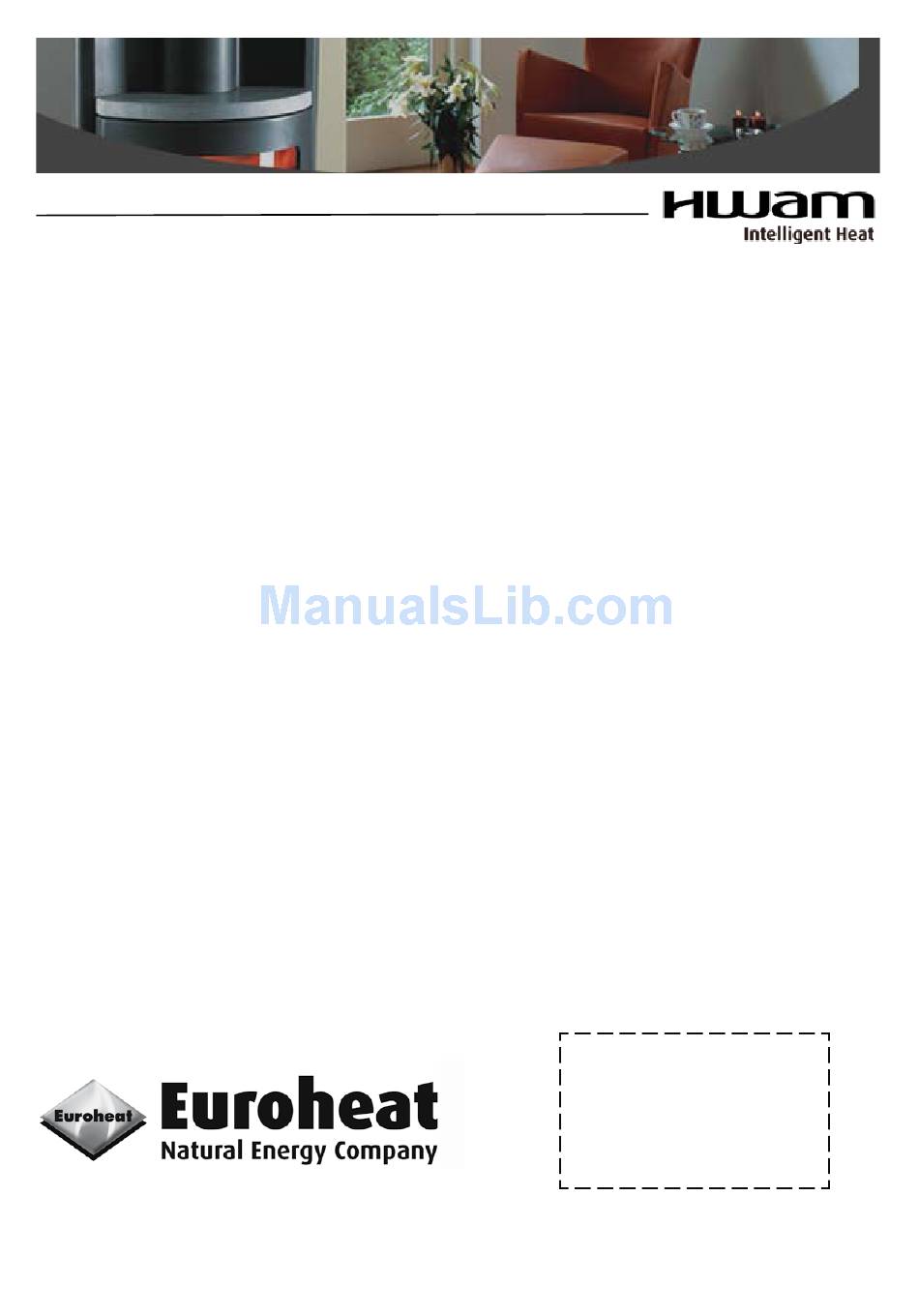

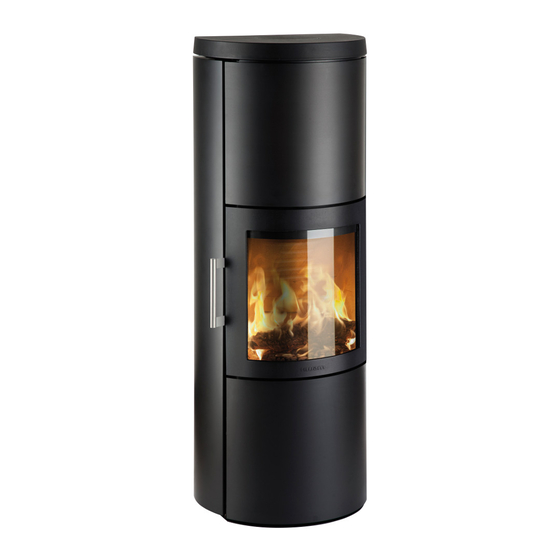

- Page 1 IN1244 Operating,Installation and Maintenance Instructions Hwam 3600 Range Wood Models This manual must be used in conjunction with document IN1173 The Wood and Mutlifuel Chimney and Installation Guide, This Manual Must Always Be Available To The Stove Operator Part No.
-
Page 2: Table Of Contents
Contents Operating Instructions Subject Page Important Notes............Model Identification..........Cureing Process............About Differant Fuels..........Stove Controls............Automatic Control System........Grate Cover Plate............ Coal Basket............. Lighting Your Stove..........10-11 General Maintanance..........Maintanace Of Soapstone........Operational Problems..........14-15 Installation Instructions Technical Details............. Hearths.............. - Page 3 IMPORTANT The installation of this appliance must comply with all current BS 8303 local regulations, including those referring to national and European Standards before it can be operated. The stove is not suitable for a shared flue. However, for England and Wales, only, the coming into force on 1st April 2002 of SI 2002 No 440 exempts the householder from this legal requirement for the installation of solid fuel fired appliance whose rated heat output is 50kW or less in a building having no more than 3 storeys (excluding any basement) if a Competent Engineer is employed who is registered under the Registration Scheme for Companies and Engineers involved...
-
Page 4: Model Identification
The Model Range Explained Thank you for purchasing your stove and helping to protect our environment. Hwam and Euroheat insist on progressive development to produce products which are market leading. Our aims are to produce stoves with the latest innovations, user friendly operation and high efficiency for lower cost operation. - Page 5 Multifuel And Wood Stoves Gas and oil are consistent fuels and stoves can be designed to obtain the maximum heat from them with the user having to do no more than choose a heat setting. Solid fuels are almost infinitely variable and however well a stove has been designed, its performance will ultimately depend on the way the user operates it.
- Page 6 A stove is very much safer than an open fire, but if you have children or infirm people in the house please ensure it is suitably guarded, and consideration should also be given to accidental contact with the stove if you are entertaining with a busy house full of guests.
- Page 7 Choice Of Logs Never burn wood that is not dry or wood that has been subject to a manufacturing process, such as chipboard, as these contain resins of uncertain toxicity when burned. For the same reasons, wood that has been painted or treated with a preservative should never be burned.
-
Page 8: Stove Controls
Stove Controls Burn Rate Control The rate at which the stove burns is controlled by adjusting the air entering the stove. Moving the control from minimum to maximum increases the size of the air inlets, primary or secondary air, in the automatic combustion system. -
Page 9: Grate Cover Plate
Grate Cover Plate Your HWAM stove is supplied with a loose cover plate for the riddling grate. This is a 3 mm thick steel plate. It is placed on top of the riddling grate and prevents the embers from falling into the ash pan. The cover plate is raised approx. -
Page 10: First Firing
First Lighting of the Stove When you light the stove for the first few times it should be with small fires increasing in size, as all the materials must be given time to adapt to the effects of heat. The paint on the body of the stove will be fully hardened after the stove has been cured, however the door and the ash pan should be opened very carefully before this as there will otherwise be a risk that the gaskets will stick to the paint. - Page 11 Wearing the stove glove place a few logs larger than kindling wood over, but not smothering the kindling. When the previous loading of wood is burning brightly add two larger split logs to bridge the fire. Always avoid putting wood directly onto wood burning with flame, try and leave air space under the wood for the flame to form, because the new, cold log will tend to cool the fire.
-
Page 12: Ash Removal
General Maintenance of the Stove Ash Removal The ash pan should NOT be removed and emptied when the stove is operating. Removal of the ash pan when the stove is lit will allow unregulated air to enter the stove which can damage the automatic combustion control system. -
Page 13: Maintanace Of Soapstone
Maintenance of Soapstone What is soapstone? Soapstone is a natural material, a natural stone, which absorbs and stores heat effectively. The result is that the heat from the stove is given off over a longer period of time. There are different types of soapstone. The type is determined by the composition of minerals of the stone e.g. talcum powder, magnesium and chloride. -
Page 14: Operational Problems
Operational Problems Blackened glass The wood is too damp. Only use wood stored for at least 12 months under cover and with a moisture level not exceeding 25%. Smoke in the room when opening door Open the door slowly, a few millimetres at first, then gradually to allow the pressure changes within the stove to equal out. - Page 15 The information provided for the room heater fuelled by wood (solid mineral fuel), has been measured as specified in EN13240:2001 and EN 13240-A2:2004. Hwam and Euroheat have a policy of continual research and development and reserve the right to modify its appliances without prior notice.
- Page 16 E & OE Instructions Part number IN1244 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. May 2012...
-
Page 17: Installation Instructions
Installation Instructions For Stoves Hwam 3600 Range This Manual Must Always be Available to the Stove Operator Part No. Model Name Serial Number E & OE Instructions Part number IN1244 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. May 2012... -
Page 18: Technical Details
Approved Document J Hwam 3610 6” (153mm) 112kg Hwam 3630 6” (153mm) 136kg 136kg Hwam 3640 6” (153mm) 226kg Hwam 3640 With Soapstone 6” (153mm) Cover 168kg Hwam 3650 6” (153mm) 241kg Hwam 3650 With Heat 6” (153mm) Storage Compartment 168kg Hwam 3660 6”... -
Page 19: Hearths
150mm to each side measuring from the closed door of the combustion chamber. The Hwam range of stoves have been tested and conform to standards where the hearth temperature does not exceed 100°C This means a hearth of 12mm of noncombustible material can be used. -
Page 20: Fireplace Design
Fireplace Design Do not be tempted to fit the stove into an unsuitable fireplace. Beyond the requirements of Building Regulations and access to facilitate servicing the stove, providing a setting which will compliment a stove is not a luxury, it is the practicality of making the most of an investment. A good builder or fireplace specialist will be able to transform even the most utilitarian of fireplaces. -
Page 21: Installation Clearances
Installation Clearances If the stove is to be installed into a fireplace recess the installation must comply to BS8303 1 to 3: 1994 Free Standing Installation From non combustible back wall 100mm From combustible back wall 150mm From non combustible side wall 150mm From combustible side wall 400mm... -
Page 22: Fitting Internal Parts
Fitting The Internal Parts Before the stove is installed, you must ensure that all the internal parts are fitted correctly. 1, Baffle plate should be placed on the steel rail and the holder at the front middle. 2. The baffle plate is suspended on three hooks beneeath the top plate. One of these hooks has an additional flap that is bent upwards for protection when in transport. -
Page 23: Fresh Air System
Grate Cover Plate Your HWAM stove is supplied with a loose cover plate for the riddling grate. This is a 3 mm thick steel plate. It is placed on top of the riddling grate and prevents the embers from falling into the ash pan. The cover plate is raised approx. -
Page 24: Maintenance Instructions
Maintenance Instructions Automatic Combustion Control Lift off the rear panel. On a cold stove, the starting point of the mechanism is controlled. The starting point on a cold stove is about 30° above horizontal. It should move easily and spring loaded when you push it, no matter if the stove is cold or hot. With a rising or falling temperature it should move gradually. - Page 25 ECLARATION OF ONFORMITY Manufacturer: HWAM Heat Design AS Nydamsvej 53 DK – 8362 Hørning Denmark Tel.: +45 86 92 18 33 Fax: +45 86 92 22 18 E-mail: heatdesign@hwam.com hereby declares that: Product: Type: Wood-burning stove HWAM 3410 was manufactured in accordance with the provisions of the following directive: Reference no.
-
Page 26: Commissioning Check List
Complete the Stoves Registration Form and Pass to User for Registration Euroheat and Hwam have a policy of continual research and development and reserve the right to modify its appliances without prior notice. We make every effort to ensure that the information provided in this document is correct and accurate at the time of printing.
