Machine Overview

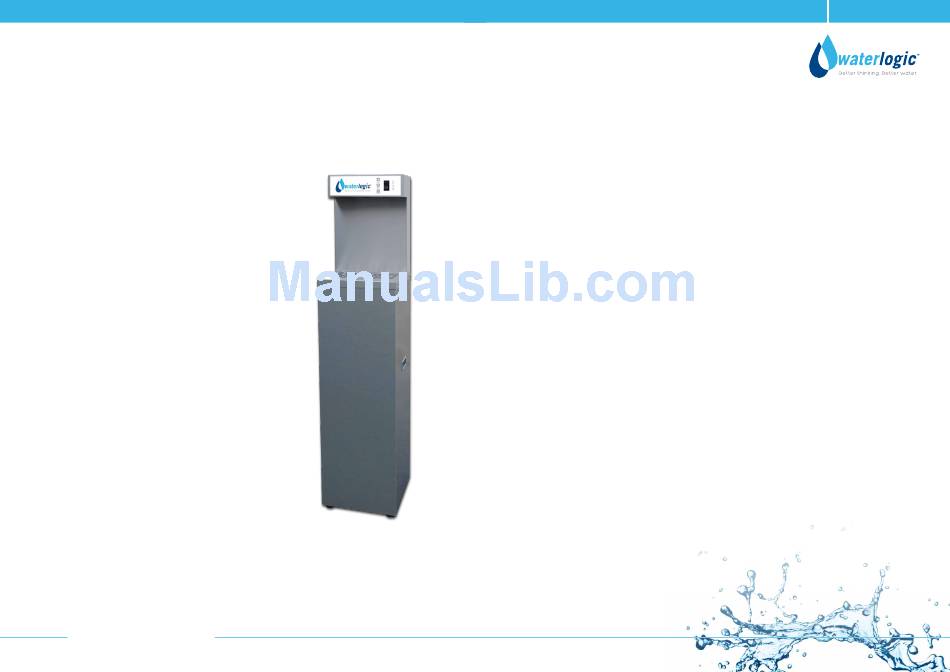

WL Max
The WL Max is available in the following options:
a) Cold Only Single Faucet (High Capacity)
b) Cold Only Double Faucet (High Capacity)
WL Max Technical Manual - Version 1 - May 2013
4
ICE BaNK TECHNOLOGY
The ice bank technology system is manufactured from 304 Stainless Steel which
is non-corrosive and inert. The cold water temperature is preset at the factory at
approximately 5 degrees C, this being the ideal temperature for a cold drink.
The ice bank technology system, unlike other reservoir systems, reduces the amount
of water stored in the machine. The capacity of the coil system is 18cl.
FILTERS
The filtration system on the WL Max is designed to reduce dirt and sediment
particles from the water. Furthermore, the Activated Carbon process will remove a
whole range of contaminants e.g. chlorine and pesticides. It is important for the UV
sterilization system to be supplied with clean water in order to achieve maximum
efficiency. There are many kinds of different filter combinations available from
Waterlogic to suit local water conditions.
FIREWaLL CHaMBER
The Firewall chamber incorporates the in-Faucet UV and is made of aluminium and
is highly reflective. The Chamber houses the UV lamp and quarts spiral as well as
the faucet.
IN FaUCET UV
The Unique design allows the faucet area to be sterilized before, during and after
every dispense. There are two types of sensors available, the CDS UV sensor that
detects if the UV lamp is working and the UV sensor that monitors the UVC intensity
from the UV lamp.
