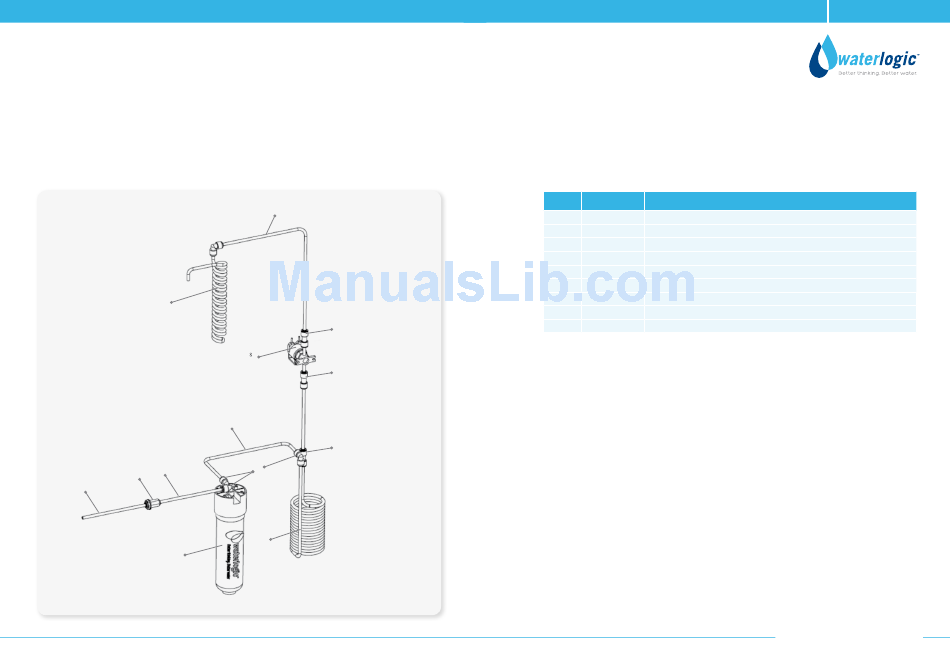

Wetted Parts Illustration

Single Faucet
9
1
3
2
1
4
1
7
8
7
7
5
6
28
N° Part No. Part Description
1 PU-4031 JG 1/4" PE Pipe
2 PU-4028 JG Bulkhead Connector Union 1/4" * 1/4"
3 PU-4031 JG 1/4" PE Pipe
4 FT-0034 10" Inline CBC Filter 1 Micron
5 PU-4008 JG Equal Elbow Connector 1/4"
6 Stainless Steel Coil 5/6"
7 PU-4010 JG Equal Straight Connector 1/4"
8 PU-4017 Solenoid DC 24V 500mm
9 FU-0007 Quartz Spiral
29
