Summary of Contents for Insportline IN 8947

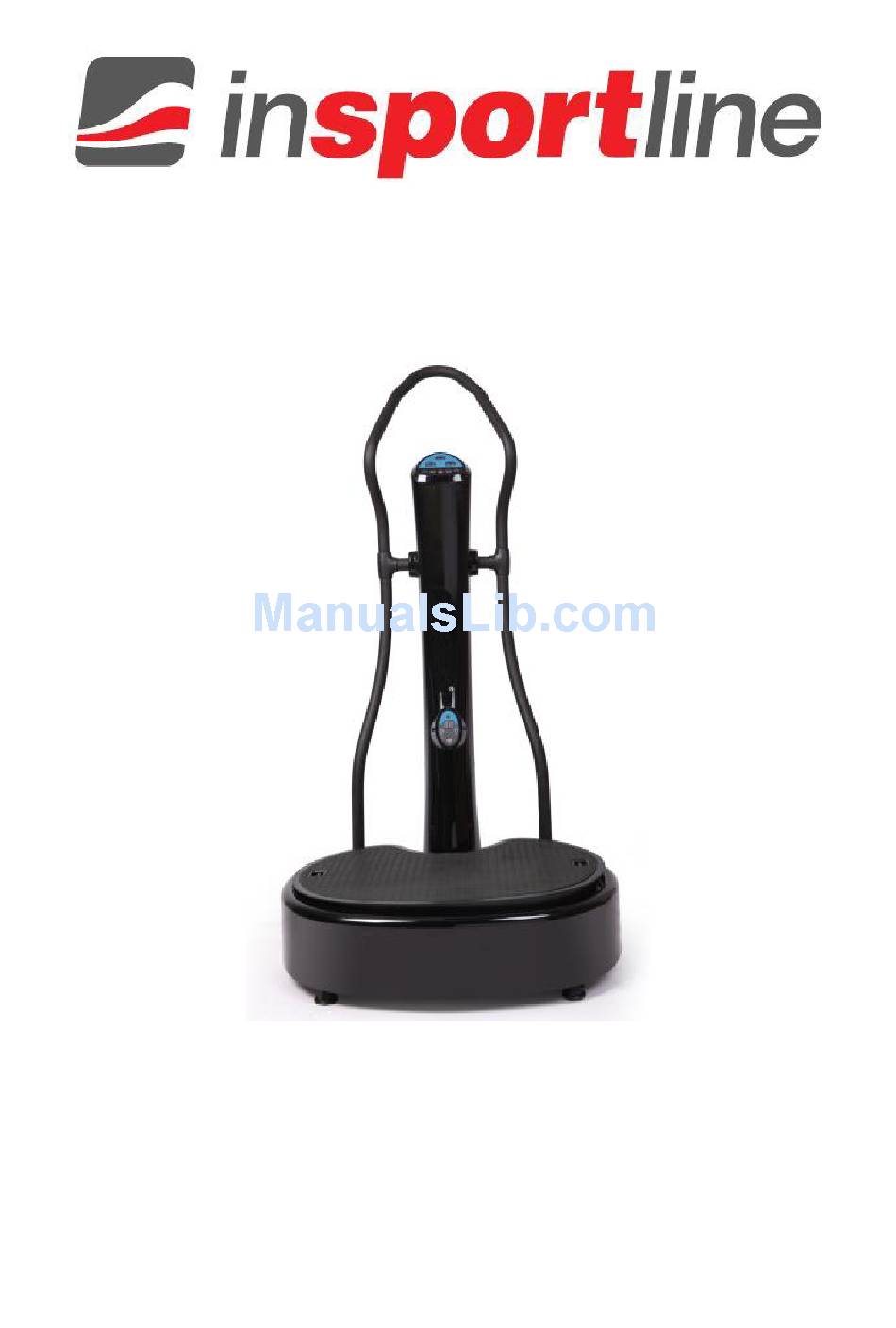

- Page 1 USER MANUAL – EN IN 8947 Vibration Plate inSPORTline Charles...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................3 PARTS ..................................3 EXPLODED VIEW ..............................4 PARTS LIST ................................5 ASSEMBLY ................................8 OPERATION INSTRUCTIONS ..........................9 SAFETY CAUTIONS ............................11 MAINTENANCE ..............................13 HOW TO STORE ............................. 13 SELF-MAINTENANCE ........................... 14 CLEANING ..............................14 PRODUCT SPECIFICATION .......................... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing vibration plate. Please read the operation manual thoroughly before you begin operating the machine. This operation manual should be kept available for future reference after you have read it through. SC class (according to EN957) for home and club use Our company has the absolute right to alter the design pictures and material color without prior notice. -
Page 4: Exploded View
EXPLODED VIEW... -
Page 5: Parts List
PARTS LIST Name Foot skin Inner hexagon cylindrical screw Washer Footplate Ornament of straps Switch Socket Metal clip for fixing ornament of straps Hexagon nipples Strengthening rod components Base casing Rubber sleeve Bearing sleeve Deep groove ball bearing Eccentric block Inner hexagon cylindrical screw Inner hexagon cylindrical screw Spring washer... - Page 6 Oscillation motor Motor insulation pad Hexagon nipple Big washer Insulation washer of motor seat Motor seat Insulation pad of motor seat Washer Spring washer Inner hexagon cylindrical screw Hexagon nipple Spring washer Flat washer Locating sleeve Axle of connecting rod Bracket of connecting rod Clamp spring of axle Connecting rod...
- Page 7 Inner hexagon cylindrical screw Adjustable feet Washer Spring washer Inner hexagon cylindrical screw Washer Spring washer Inner hexagon cylindrical screw Upper handrail protection foam Upper handrail Main control panel sticker Phill disk head self-tapping Screw BMI sensor chip Main control Panel Display PCB Phill disk head self-tapping screw Column...
-
Page 8: Assembly
Plug Column LED PCB ASSEMBLY STEP 1: Take out the support tube (1) and main base (2) from packing carton. Connect the upper and lower signal cable. STEP 2: Put the support tube (1) into the base (2). Lock them with screws (4) and install the feet cushion. -
Page 9: Operation Instructions
This is final assembled picture. OPERATION INSTRUCTIONS UPPER CONSOLE MIDDLE CONSOLE UPPER CONSOLE OPERATION Press this button to switch the time or speed display during the machine. 2. MODE window Display the current mode of machine, manual or automatic. Display the time countdown or oscillation speed. Switch the display mutually. 3. - Page 10 In manual mode, press this button to increase the oscillation speed, the speed range is 1 to 60 level. Oscillation speed + In manual mode, press this button to reduce the oscillation speed, the lowest is 1 level. Oscillation speed - Set the running time of the machine.
-
Page 11: Safety Cautions
In manual mode, reduce the oscillation & spiral vibration speed at the same time. Speed - Start or Stop the machine. AUTOMATIC PROGRAMS Oscillation: 30 34 38 42 46 50 54 58 54 50 46 42 38 34 30 26 22 18 14 10 6 2 6 10 18 22 26 Vibration: 30 26 22 18 14 10 6 2 6 10 14 18 22 26 30 34 38 42 46 50 54 58 54 50 46 42 38 34 Time Interval: 5 seconds... - Page 12 After using the machine, please press the Stop button. Step down from the machine when the machine stops completely. Stepping down during run state might lead to physical injuries. Please unplug the power plug when the product is not in use. This will prevent unnecessary wastage of electricity and may prevent fire.
-
Page 13: Maintenance
Epilepsy Diabetes Heart and vascular disease Slipped disc or had Back/Spine Surgery Knee and hip implants Pacemaker Recently insert IUD, Metal pins Tumor Recent infections Recent operative wounds Pregnant women ... -
Page 14: Self-Maintenance
SELF-MAINTENANCE 1. Before cleaning, ensure that the main switch is turned off and AC plug is removed from the electrical outlet. 2. Do not using the Vibration Plate too long for the first time. 3. Switch off power and remove the plug from the socket every time after use. 4. - Page 15 Date of Sale: Stamp and Signature of Seller:...
