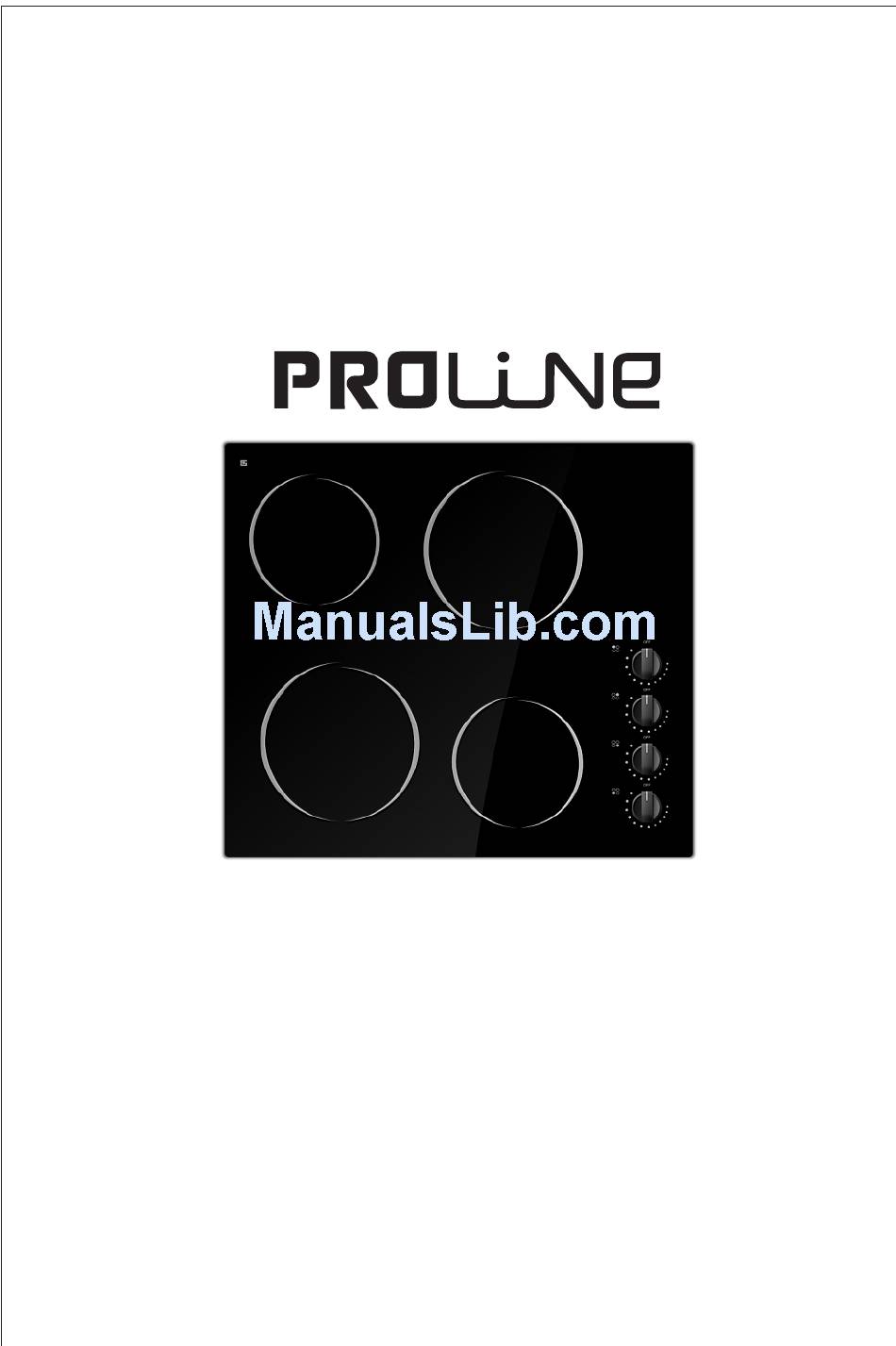

- Page 1 MODEL:PCH465K-U INSTRUCTIONS...
- Page 2 Dear Customer, Thank you for purchasing this PROline Ceramic Hob. The safety precautions and recommendations in these instructions are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.
-
Page 3: Important Safeguards & Recommendations
BEFORE USING FOR THE FIRST TIME • Read the instructions carefully before installing and using the appliance • After unpacking the appliance, make sure it is not damaged. In case of doubt, do not use the appliance and contact your supplier or a qualified engineer. •... -
Page 4: Installation
Safety High temperature protection The temperature sensor mounted on the radiant electric the temperature inside the cooker from time to time. When an excessive temperature is detected, the cooking plate will be directly disconnected and stop power output. Residual heat indicators After using the hob, waste heat remains in the heating area. - Page 5 Make sure the ceramic hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic hob is installed as shown in Figure (2) mini 760 mm mini 50 mm mini 20 mm Air intake Figure (2) Note: The safety distance between the ceramic hob and the cupboard above the hotplate should be at least 760mm.
-
Page 6: Electrical Connection
ELECTRICAL CONNECTION: Installation must be carried out according to the manufacturer's instructions. Incorrect installation may cause harm and damage to people, animals or property, for which the manufacturer accepts no responsibility. Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains. -
Page 7: Power Cord
220-240V A qualified electrician must 220-240V ensure that the correct 220-240V electrical connection made connet to the main power supply connet to the main power supply and that it complies with 220-240V~ 220-240V 2+2N~ current regulations in force. Figure (3) If the cable is damaged or to be replaced, the operation must be carried out by a qualified service agent with dedicated tools to avoid any accidents.If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a... - Page 8 Schematic diagram of the control panel Power High temperature regulating knob Indicator lamp Instructions for Use Put the pan in the center of the heating zone. Operation Instructions: After the power supply is connected,put the pan on the center of the ceramic plate,Turn the knob clockwise or anticlockwise to turn on the hotplate.
-
Page 9: Cleaning The Ceramic Hob
CLEANING THE CERAMIC HOB Before you begin cleaning make sure that the hob is switched off. • Remove spillages and other types of incrustations. • Dust or food particles can be removed with a damp cloth. • If you use a detergent, please make sure that it is not abrasive or scouring. Abrasive or scouring powders can damage the glass surface of the hob. - Page 10 If something doesn't seem to work If there is something about your appliance which you do not understand and you live in the UK you can phone our help line during normal office hours on: 0844 8009595. Calls are charged at standard rates. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
