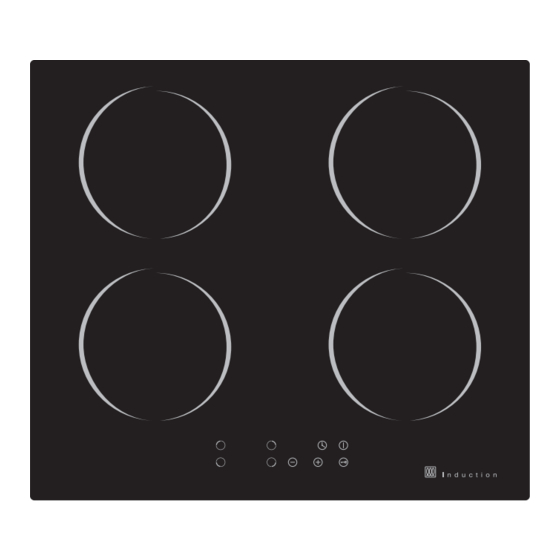

Induction hob
Hide thumbs Also See for IH680P-U:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
(1) If the cable is damaged or needs replacing, this should be done by a
qualified technician using the proper tools, to avoid any accidents.
(2) If the appliance is being connected directly to the mains supply, an
omnipolar circuit breaker must be installed with a minimum gap of 3 mm
between the contacts.
(3)The installer must ensure that the correct electrical connection has been
made and that it complies with safety regulations.
(4)The cable must not be bent or compressed.
(5)The cable must be checked regularly and only replaced by a properly
qualified person.
(6).The appliance shall be installed according to national electrical rules.
Induction hotplate appearance
Ceramic plate
Control panel
iagram of the control panel
Heating zone selection key
3
2
4
1
Power regulating key
Air entry
Air vent
Timer key
ON/OFF
Lock key

Advertisement

loading

Related Manuals for Proline IH680P-U

Summary of Contents for Proline IH680P-U

  • Page 1 (1) If the cable is damaged or needs replacing, this should be done by a qualified technician using the proper tools, to avoid any accidents. (2) If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3 mm between the contacts.

  • Page 2: Instructions For Use

    Instructions for Use First time use When the power is switched on, the buzzer will sound once and all the indicators will come on for one second and then go out. The hob is now in standby mode. Place the pan in the centre of the cooking zone. Operation Instructions When the ON/OFF key is pressed, all the indicators show "-"...
  • Page 3 Timing confirmation: (1) Select the power level of the cooking zone and then press the "Timer" key. The timer can now be set. (2) When the timing indicator has been flashing for 10 seconds, the set time will be automatically confirmed or, confirm by pressing the "Timer"...
  • Page 4 Selection of heating appliances Iron oil frying pan Iron pan Stainless steel pot Iron kettle Enamel stainless Enamel cooking Iron plate steel kettle utensil You may have multiple appliances suitable for heating. This induction hotplate is able to identify multiple heating appliances, and you can test them according to one of the following methods: Place the appliance in the heating zone.

  • Page 5: Cleaning The Ceramic Hob

    CLEANING THE CERAMIC HOB Before you begin cleaning make sure that the hob is switched off. • Remove spillages and other types of incrustations. • Dust or food particles can be removed with a damp cloth. • If you use a detergent, please make sure that it is not abrasive or scouring. Abrasive or scouring powders can damage the glass surface of the hob.

  • Page 6: Failure Display And Inspection

    Failure Display and Inspection If any abnormality occurs, the induction hob will automatically go into protective mode and display one of the following codes: Fault Possible cause Solutions F3-F8 Temperature sensor failure Contact the supplier E1/E2 Abnormal voltage in power Check if power supply is supply normal.

  • Page 7: Important Disposal Instructions

    IMPORTANT DISPOSAL INSTRUCTIONS As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for your product, batteries and packaging materials. This will help conserve natural recourses and ensure that it is recycled in a manner that protects health and the environment.
