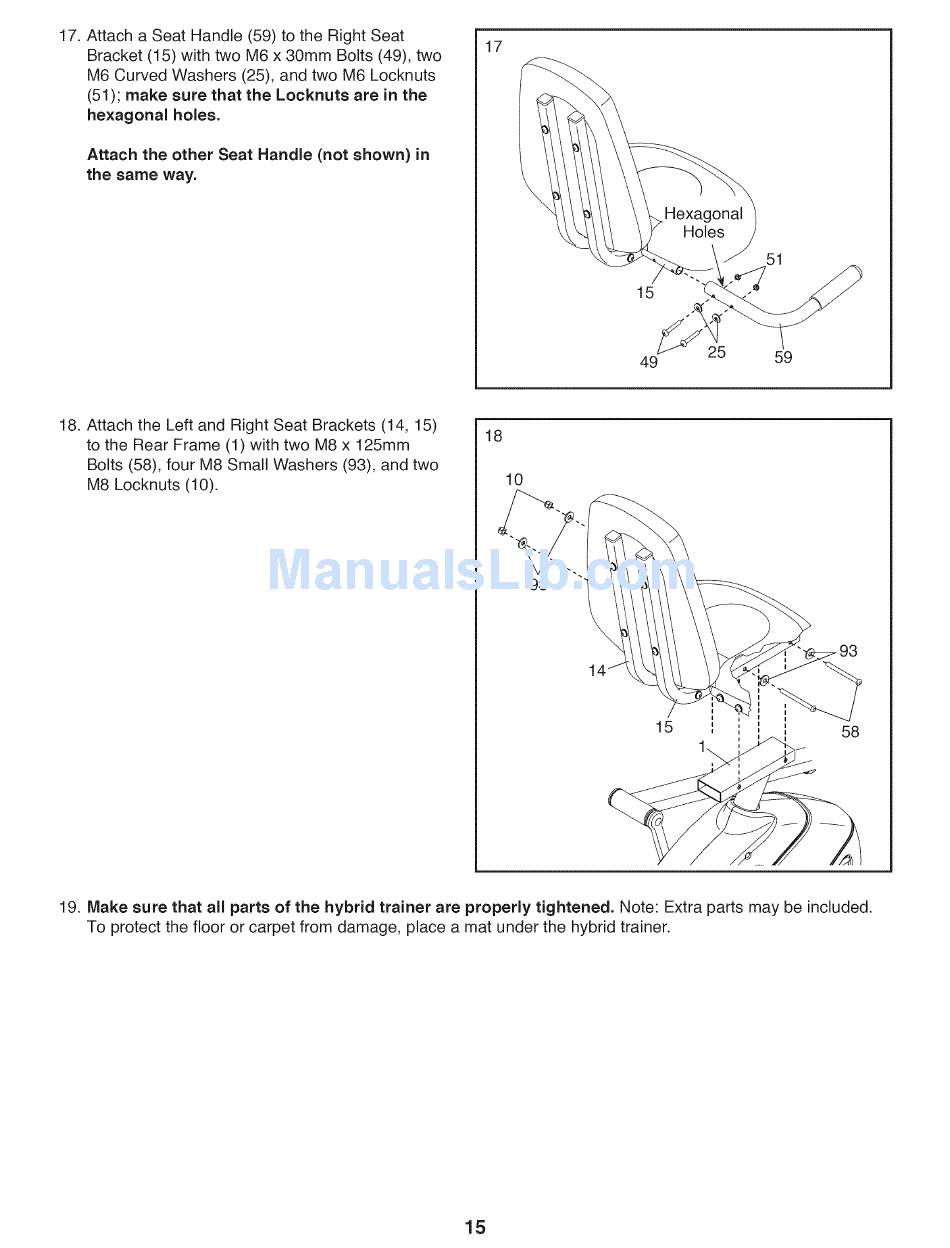

17. Attach a Seat Handle (59) to the Right Seat
Bracket (15) with two M6 x 30mm Bolts (49), two
M6 Curved Washers (25), and two M6 Locknuts
(51); make sure that the Locknuts are in the
hexagonal holes.
Attach the other Seat Handle (not shown) in
the same way.
17
15
49
25
51
59
18. Attach the Left and Right Seat Brackets (14, 15)
to the Rear Frame (1) with two M8 x 125mm
Bolts (58), four M8 Small Washers (93), and two
M8 Locknuts (10).
18
10
93
58
19. Make sure that all parts of the hybrid trainer are properly tightened. Note: Extra parts may be included.
To protect the floor or carpet from damage, place a mat under the hybrid trainer.
