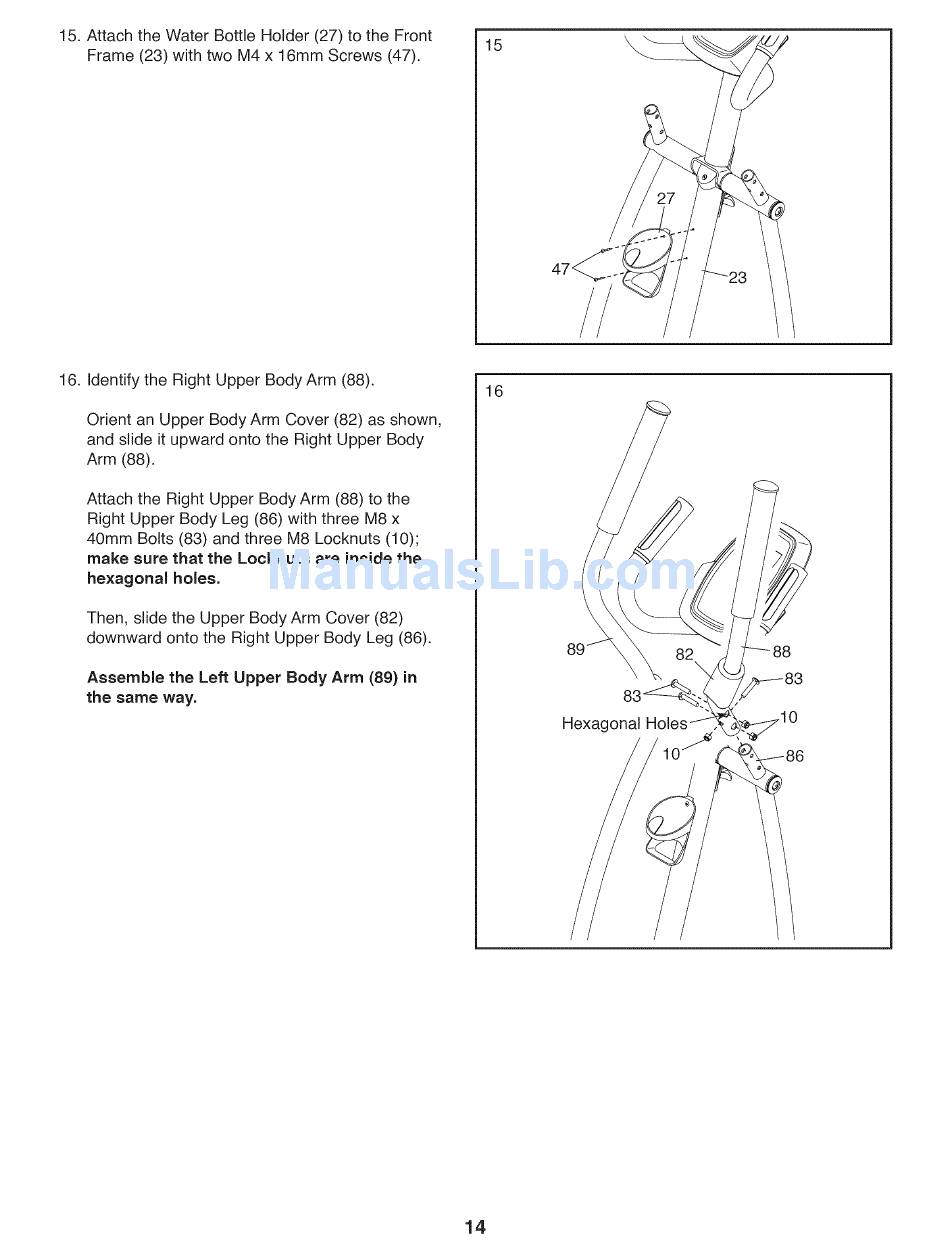

15. Attach the Water Bottle Holder (27) to the Front
Frame (23) with two M4 x 16mm Screws (47).
15
\
16. identify the Right Upper Body Arm (88).
Orient an Upper Body Arm Cover (82) as shown,
and slide it upward onto the Right Upper Body
Arm (88).
Attach the Right Upper Body Arm (88) to the
Right Upper Body Leg (86) with three M8 x
40mm Bolts (83) and three M8 Locknuts (10);
make sure that the Locknuts are inside the
hexagonal holes.
Then, slide the Upper Body Arm Cover (82)
downward onto the Right Upper Body Leg (86).
Assemble the Left Upper Body Arm (89) in
the same way.
16
Hexagonal
14
