- Page 1 LV-67D Mini-ITX Motherboard User’s Manual Edition 1.1 2009/01/23...
- Page 3 LV-67D User’s Manual Copyright Copyright 2009, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 4: Packing List
LV-67D User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LV-67D Mini-ITX Motherborad x 1 Cable Kit: COM Port Cable x 1 SATA Cable x 1 44-pin 44-pin 40-pin ATA33 IDE Cable x 1... - Page 5 LV-67D User’s Manual Index Chapter 1 <Introduction> ............6 1.1 <Product Overview>............6 1.2 <Mechanical Drawing> ............ 9 1.3 <Block Diagram> ............10 Chapter 2 <Hardware Setup> ........... 11 2.1 <Connector Location> ............ 11 2.2 <Jumper Location & Reference>........12 2.3 <Connector Reference>...
- Page 6 LV-67D User’s Manual Chapter 3 <System Setup> ..........35 3.1 <Audio Configuration>...........35 3.2 <Display Properties Setting> ..........36 Chapter 4 <BIOS Setup> ............38 Appendix A <I/O Port Pin Assignment> ....40 A.1 <Serial ATA Port> ............40 A.2 <IrDA Port>..............40 A.3 <Serial Port 1> ...............40 A.4 <IDE Port>...
- Page 7 LV-67D User’s Manual (This page is left for blank)
-
Page 8: Chapter 1

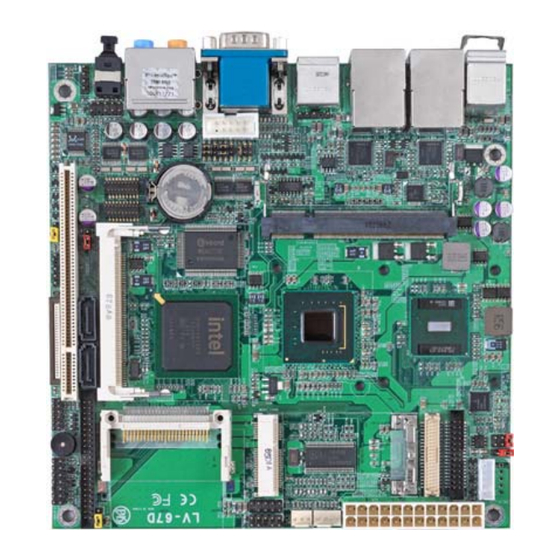

Chapter 1 <Introduction> 1.1 <Product Overview> LV-67D is the Mini-ITX miniboard, with Intel® Atom N270 processor for 533 MHz front side bus, Intel® 945GSE and ICH7M chipset, integrated GMA950 graphics, DDR2 SO-DIMM memory, Realtek HD Audio, Serial ATA and two Intel® 82574L Gigabit LAN. - Page 9 LV-67D User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Intel® Atom N270 processor Package type: FCBGA8 Front side bus: 533MHz Memory 1 x 200-pin DDR2 SO-DIMM SDRAM up to 2GB Unbufferred, none-ECC memory supported only Chipset Intel® 945GSE and ICH7M BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS...
- Page 10 LV-67D User’s Manual Ethernet Interface Controller 2 x Intel 82574L Gigabit Ethernet controller Type Triple speed 10/100/1000Base-T auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector Two External RJ45 connector with LED on rear I/O panel Audio Interface Chipset Intel integrated with Realtek ALC888 HD Audio...
-
Page 11: Mechanical Drawing
LV-67D User’s Manual 1.2 <Mechanical Drawing>... -
Page 12: Block Diagram
LV-67D User’s Manual 1.3 <Block Diagram> Intel Atom N270 Processor VGA Interface Intel GMA 950 1 x 200-pin DDR2 1 x LVDS SO-DIMM 945GSE 400 / 533 MHz up to 1 x Mini-PCI 2 x Serial ATA 1 x PCI Compact Flash &... -
Page 13: Chapter 2
LV-67D User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_USB SYSFAN CN_HDTV CPUFAN JFRNT CN_INV1 CN_LVDS1 MINI PCIE CN_DIO SATA1/2 CN_IR MINIPCI COM3/4/5/6 SO-DIMM CN_COM2 CN_SMBUS CD_IN Audio PS/2 USB & LAN1/2 CRT & COM SPDIF... -
Page 14: Jumper Location & Reference
LV-67D User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select JCSEL1/2 Com2 RS232/422/485 mode setting JCFSEL CF with IDE mode selection JVINV INV Voltage setting JCFSEL JVINV JVLCD JRTC... -
Page 15: Connector Reference
LV-67D User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark DDRII 200 -pin DDR2 SO-DIMM SDRAM slot 24-pin power input connector CN_AUDIO 5 x 2-pin audio connector CD_IN 4-pin CD-ROM audio input connector CN_DIO 6 x 2-pin digital I/O connector... -
Page 16: Memory Setup
LV-67D User’s Manual 2.4 <Memory Setup> The board provides one 200-pin DDR2 SO-DIMM to support DDR2 533 memory modules up to 2GB of capacity. Non-ECC, unbuffered memory is supported only. SO-DIMM... -
Page 17: Cmos Setup
LV-67D User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 18: Enhanced Ide & Cf Interface
LV-67D User’s Manual 2.6 <Enhanced IDE & CF Interface> The board has one Ultra DMA33 IDE interface to support up to 2 ATAPI devices, and one Compact Flash Type II socket. 44 43... -
Page 19: Serial Ata Interface
LV-67D User’s Manual 2.7 <Serial ATA Interface> Based on Intel ICH7-M, the board provides four Serial ATAII interfaces with up to 150MB/s of transfer rate. SATA Port 1/2... -
Page 20: Ethernet Interface
LV-67D User’s Manual 2.8 <Ethernet Interface> The board integrates with two Intel 82574L Gigabit Ethernet controllers, as the PCI Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 21: Onboard Display Interface
LV-67D User’s Manual 2.9 <Onboard Display Interface> Based on Intel 945GSE chipset with built-in GMA (Graphic Media Accelerator) 950 graphics, the board provides one DB15 connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT, LCD, HDTV. -
Page 22: Digital Display
LV-67D User’s Manual 2.9.2 <Digital Display> The board provides one 40-pin LVDS connector for 18-bit dual channel panels, supports up to 1600 x 1200 (UXGA) resolution, with one LCD backlight inverter connector and jumper for panel & inverter voltage setting. -
Page 23: Lvds2 Interface Lv-67Dx Only
LV-67D User’s Manual 2.9.3 <LVDS2 Interface LV-67DX only > The board provides another 40-pin LVDS connector for 18/24bit dual channel panels. Supports up to 1600 x 1200 (UXGA) of resolution, with CN_INV2 LCD backlight inverter connector (LV-67DX only). The panel & inverter voltage setting shared with LVDS1. - Page 24 LV-67D User’s Manual Connector: CN_INV1/2 Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description Description INV_V INV_V LCDVCC (3.3V) LCDVCC (5V) LCDVCC (12V) ENABKL ENABKL Default: 1-2 Connector: JVINV Type: 3-pin INV_V power select Header...
- Page 25 LCD Installation Guide: Preparing the LV-67D, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 26 LV-67D User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form On board 18 bit LVDS Single Channel Dual Channel...
-
Page 27: Dvi Interface Lv-67Dd Only
LV-67D User’s Manual 2.9.4 <DVI Interface LV-67DD only > The board also comes with a DVI interface with Chrontel CH7307C for digital video interface. Supports up to 1600 x 1200 (UXGA) of resolution. (LV-67DD only) Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.00mm) -
Page 28: Hdtv Interface
LV-67D User’s Manual 2.9.5 <HDTV Interface> The board provides an HDTV interface with Intel 945GSE, support PAL and NTSC of TV system, and display (clone or extended desktop) function with CRT, LVDS. Connector: CN_HDTV Connector type: 10-pin header HDTV connector (pitch = 2.54mm) -
Page 29: Integrated Audio Interface
LV-67D User’s Manual 2.10 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more sound and other advantages than former HD audio compliance. - Page 30 LV-67D User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Reserve Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground CD –...
-
Page 31: Gpio Interface & Smbus
LV-67D User’s Manual 2.11 <GPIO Interface & SMBUS> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 32: Serial Port
LV-67D User’s Manual 2.12 <Serial Port> The board supports one RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. Connector: CN_COM2 Type: 10-pin (5 x 2) 2.54mm x 2.54mm-pitch box header for COM2... - Page 33 LV-67D User’s Manual Jumper: JCSEL1 & JCSEL2 Type: Onboard 6-pin & 12-pin jumper Function JCSEL1 JCSEL2 RS-232 RS-485 RS-422 JCSEL1 JCSEL2...
-
Page 34: Power Supply
LV-67D User’s Manual 2.13 <Power Supply> The LV-67D provides a standard ATX power supply with 24-pin ATX connector with 3-pin jumper to simulate AT power, and the board provides one 4-pin fan connector supporting smart fan for CPU cooler and one 3-pin cooler fan connector for system. -
Page 35: Fan Connector & Jat Jumper
LV-67D User’s Manual 2.13.2 <Fan connector & JAT JUMPER> Connector: SYSFAN Type: 3-pin fan wafer connector Pin Description Description Description Ground +12V Fan Control Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V Fan Speed Detection Sense Jumper: JAT... -
Page 36: Switch And Indicator
LV-67D User’s Manual 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 37: Chapter 3
LV-67D User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> Based on Intel® 945GSE chipset with GMA 950 (Graphic Media Accelerator) , the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory to be allocated up to 224MB. -
Page 38: Display Properties Setting
LV-67D User’s Manual 3.2 <Display Properties Setting> Based on Intel 945GSE GMCH with GMA 950(Graphic Media Accelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 39 LV-67D User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Colors, Resolution and Refresh Rate Click Intel® Dual Display Clone setup dual display mode as same screen Note: Dual LVDS display supports Extended mode only.
-
Page 40: Chapter 4
LV-67D User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 41 LV-67D User’s Manual (This page is left for blank)
-
Page 42: Appendix A
LV-67D User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND GND GND A.2 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description... -
Page 43: A.4
LV-67D User’s Manual A.4 <IDE Port> Connector: IDE Type: 44-pin (22 x 2) box header Description Description Reset Ground Ground Ground IOW-/STOP Ground IOR-/HDMARDY Ground IORDY/DDMARDY Ground DACK- Ground ASP1 Ground Ground Ground... -
Page 44: A.5
LV-67D User’s Manual A.5 <VGA Port> Connector: CRT Type: 15-pin D-sub female connector on bracket Description Description Description Ground GREEN Ground DDCDA BLUE Ground HSYNC VSYNC Ground Ground DDCCLK A.6 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on bracket... -
Page 45: Appendix B
LV-67D User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the... -
Page 46: Appendix C
LV-67D User’s Manual Appendix C <System Resources> C1. <I/O Port Address Map>... - Page 47 LV-67D User’s Manual...
- Page 48 LV-67D User’s Manual C2. <Memory Address Map>...
- Page 49 LV-67D User’s Manual C3. < IRQ Resources>...
-
Page 50: Appendix D
LV-67D User’s Manual Appendix D <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 51: Appendix E
LV-67D User’s Manual Appendix E <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 52: Contact Information
Taiwan Commate Computer Inc. Address 19F No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
