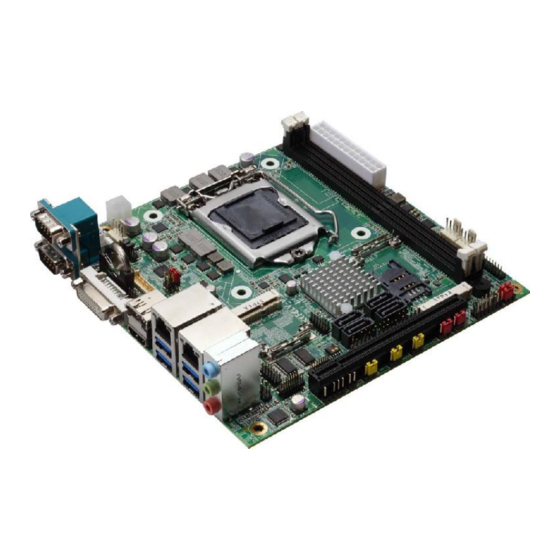

- Page 1 LV-67S Mini-ITX Desktop Motherboard User’s Manual Edition 2.0 2016/06/27...
- Page 2 LV-67S User’s Manual Copyright Copyright 2015, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LV-67S User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LV-67S Mini-ITX Motherboard 1 x VGA Cable 1 x USB2.0 Cable (OALVGA-SNB-7) / (1040557) (OALUSBA-1) / (1040172) 2 x SATA Cable (OALSATA3-L) / (1040529) -
Page 4: Table Of Contents
LV-67S User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Mechanical Drawing>............6 1.4 <Block Diagram>..............7 Chapter 2 <Hardware setup>............8 2.1 <Connector Location and Reference> ........ 8 2.1.1 <Internal connectors list> ..........9 2.1.2 <External connectors list>.........9... -
Page 5: Chapter 1
All in One multimedia solution LV-67S provides high performance onboard graphics, 18/24-bit single/dual channel LVDS interface, DisplayPort, DVI-I, CRT and High Definition Audio, to meet the requirement of the multimedia application. -
Page 6: Product Specification
LV-67S User’s Manual 1.2 <Product Specification> System Intel® Skylake Core™ i7, i5, i3 S-series and Xeon® E3-1200 v5 Product Processor Family Processor, FCLGA1151 package Chipset Intel® C236 PCH-H 2 x DDR4 DIMM 1866/2133 MHz up to 32GB, Support Non-ECC, Memory... -
Page 7: Mechanical Drawing
LV-67S User’s Manual 1.3 <Mechanical Drawing>... -
Page 8: Block Diagram
LV-67S User’s Manual 1.4 <Block Diagram> 1 x HDMI Channel A DDR4 DIMM 1.2V 1 x DisplayPort Channel B 1 x DVI-I DDR4 DIMM 1.2V Gen Processor PTN3355 PCI Express X16 1 x CRT PTN3460 DMI GEN3 1 x LVDS... -
Page 9: Chapter 2
LV-67S User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CN_LVDS CN_CRT CN_AUDIO CN _INV CN_DIO CPUFAN CN_COM5/6 CN_12V MINI_CARD1 CN_COM3/4 PCI_E16X CN_LPC SATA3-3 CN_PS2 SATA3-4 CN_USB2-1 SATA3-2 SATA3-1 CN_USB2-2 SIMM MINI_CARD2 JFRNT DDR4_A DDR4_B CN_USB 3-1 SYSFAN... -
Page 10: Internal Connectors List
LV-67S User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4_A/B 288-pin DDR4 DIMM slot SATA3-1/2/3/4 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV... -
Page 11: Cpu And Memory Setup
LV-67S User’s Manual 2.2 <CPU and Memory Setup> 2.2.1 <CPU installation> LV-67S has a LGA1151 CPU socket onboard; please check following steps to install the processor properly. Attention If LV-67S need RMA please Keep CPU socket cover on the CPU Socket. -
Page 12: Memory Setup
LV-67S User’s Manual 2.2.2 <Memory Setup> LV-67S has two 288-pin DDR4 DIMM support up to 32GB of memory capacity and 1.2 Voltage. The memory frequency supports 1866/2133 MHz. Only Non-ECC memory is supported. Please check the pin number to match the socket side well before installing memory module. -
Page 13: Jumper Location And Reference
LV-67S User’s Manual 2.3 <Jumper Location and Reference> JVLCD JCSEL2 JCSEL1 CN_SMBUS JAUXTIN JMSATA2 JMSATA1 JVSATA3-2 JRTC JVUSB 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA1 MiniCard 1 MSATA Setting JMSATA2... -
Page 14: Clear Cmos And Power On Type Selection
LV-67S User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 15: Ethernet Interface
LV-67S User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. I219-LM I210-AT 2.4.3 <Display interface>... - Page 16 LV-67S User’s Manual CN_LVDS JVLCD CN_CRT CN_INV CN_CRT: CRT 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD...
- Page 17 LV-67S User’s Manual A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3- B_LVDS_CLK- A_LVDS_3+ B_LVDS_CLK+ LVDS_DDCSCL LVDS_DDCSDA Note: Pin4 only need to be connected to GND CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default)
-
Page 18: Serial Port Interface
LV-67S User’s Manual 2.4.4 <Serial Port interface> COM2 COM1 CN_COM3/4 JCSEL2 CN_COM5/6 JCSEL1 -17-... - Page 19 LV-67S User’s Manual COM1: RS232 DB9 connector Signal Signal Set by JP1 COM2: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 Use JCSEL1 and JCSEL2 to select communication mode COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm)
-
Page 20: Usb Interface
LV-67S User’s Manual RTS2 CTS2 JP1, JP2: COM1, COM2 pin-9 setting Jumper settings Function RI (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6 Other may cause damage JCSEL1, JCSEL2: For configure COM2 communication mode Function JCSEL1 JCSEL2 RS232... - Page 21 LV-67S User’s Manual CN_USB2-1 CN_USB2-2 JVUSB CN_USB3-1 CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ CN_USB3-1 USB3.0 20-pin header (Pitch 2.00 mm) Description Description (5V_SB/ 5V) USB3.0_RX0- (5V_SB/ 5V) USB3.0_RX0+ USB3.0_RX1- Ground USB3.0_RX1+...
-
Page 22: Audio Interface
LV-67S User’s Manual JVUSB: 6-pin Power select jumper Description 1-3 & 2-4 5V_SB 3-5 & 4-6 Default: 1-3 & 2-4 Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6 JVUSB can control CN_USB3-1 and USB3.0(LEFT) power USB3.0(RIGHT) have 5V_SB 2.4.6 <Audio interface>... -
Page 23: Expansion Slot
LV-67S User’s Manual 2.4.7 <Expansion slot> MINI_CARD1 JMSATA2 JMSATA1 SIMM PCI_E16X MINI_CARD2 MINI_CARD1 and MINI_CARD2 have some special design to compatible our mini-PCIe card. (ex: MPX-574D2, MPX-210D2 etc) MINI_CARD1 support mSATA by JMSATA1 MINI_CARD2 support mSATA by JMSATA2, and connect SIM card with 3G module. -
Page 24: Front Panel Switch And Indicator
LV-67S User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+ Power_LED- Reset- Speaker+ Power_ON+ Power_ON- Speaker- -23-... -
Page 25: Gpio And Other Interface
LV-67S User’s Manual 2.4.9 <GPIO and Other interface> CN_DIO CPUFAN CN_SMBUS CN_LPC SYSFAN AUXFAN When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. - Page 26 LV-67S User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm)
-
Page 27: Power Supply
LV-67S User’s Manual 2.5 <Power supply> 2.5.1 <Power input> CN_12V CN_12V: ATX12V 4-pin connector Signal Signal ATX: main power 24-pin connector (As input) Signal Signal 3.3V 3.3V 3.3V -PSON Power_OK 5VSB 3.3V -26-... -
Page 28: Appendix A
LV-67S User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT TOOL The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the... - Page 29 LV-67S User’s Manual BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel Type Type VBIOS DEFAULT 1366 x 768 640 x 480 1680 x 1050 800 x 600 1920 x 1200 1024 x 768...
-
Page 30: Appendix C
LV-67S User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. -
Page 31: Appendix D
LV-67S User’s Manual -o 4F 01 ; activate WDTO# function -o 4E F5 -o 4F 00 ;set “00” is second mode, set “04” is minute mode -o 4E F6 -o 4F 05 ;00h: Timeout Disable ;01h: Timeout occurs after 1 minute only ;02h: Timeout occurs after 2 second/minute... -
Page 32: Appendix E
LV-67S User’s Manual Appendix E <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph (Page20). GPIO -o 4E 87 ;enter configuration -o 4E 87... -
Page 33: Appendix F
LV-67S User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. [Advanced] [Intel Advanced Menu] [PCH-IO Configuration] [SATA Configuration] [SATA Mode Selection] If this screen stop time is too short, it can be set in the BIOS. -
Page 34: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -33-...
