Jura ENA Micro 9 One Touch Instructions For Use Manual

Hide thumbs Also See for ENA Micro 9 One Touch:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Use Manual
Instructions for use for ENA Micro 9 One Touch
The Instructions for Use has been awarded the seal of
approval by the independent German Technical
Inspection Agency, TÜV SÜD, due to its easy-to-
understand style, its thoroughness and coverage of
safety aspects.
de
en
fr
it
nl
es
pt
ru

Advertisement

Table of Contents
loading

Related Manuals for Jura ENA Micro 9 One Touch

Summary of Contents for Jura ENA Micro 9 One Touch

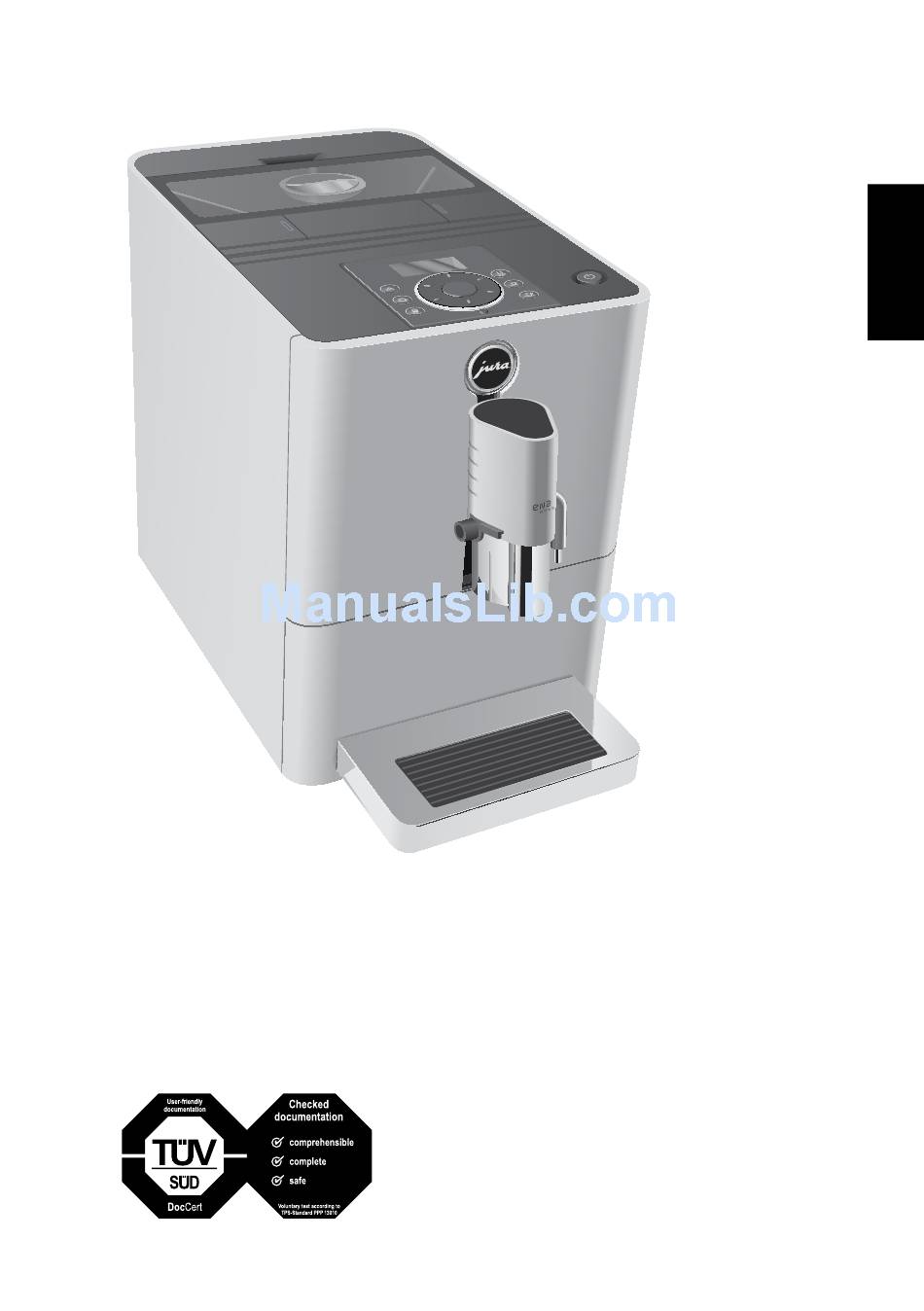

  • Page 1 Instructions for use for ENA Micro 9 One Touch The Instructions for Use has been awarded the seal of approval by the independent German Technical Inspection Agency, TÜV SÜD, due to its easy-to- understand style, its thoroughness and coverage of...

  • Page 2: Table Of Contents

    Table of contents Your ENA Micro 9 One Touch Control elements Important information Proper use ................................36 For your safety ...............................36 1 Preparing and using for the first time JURA on the Internet .............................38 3-colour plain text display ............................38 Setting up the machine ............................38 Filling the bean container ............................39...
  • Page 3 8 Transport and environmentally friendly disposal Transport / Emptying the system ........................56 Disposal .................................. 56 9 Technical data 10 Index 11 JURA contact details / Legal information Symbol description Warnings JWARNING Always take note of any information marked with the words CAUTION or WARNING JCAUTION and a warning sign.

  • Page 4: Control Elements

    Control elements Control elements Water tank Bean container with aroma preservation Mains cable (back of the machine) cover Milk pipe Hot-water spout Coffee grounds container Height-adjustable dual spout Drip tray Cup grille...
  • Page 5 Control elements Cover for powder chute for ground coffee Cover cap for grinder adjustment switch Powder chute for ground coffee Grinder adjustment switch 10 g Rotary Switch Display c Maintenance button m Hot Water button 5 / Cappuccino button 12 < Espresso button 6 ( Latte Macchiato button 13 Q On/Off button Rotary Switch status display...

  • Page 6: Important Information

    JURA water. Use for any other purpose or by an authorised JURA service will be deemed improper. JURA centre. Elektroapparate AG cannot accept Make sure that the ENA and the...
  • Page 7 Children must be able to recog- use (see Chapter 9 ‘Technical nise and understand the poten- data’). tial dangers arising from incor- Please only use original JURA rect use. maintenance products. Use of products that are not explicitly recommended by JURA could...

  • Page 8: Preparing And Using For The First Time

    Visit us on the Internet. ble person when using it, or must On the JURA website (www.jura.com) you will find be instructed in how to use it interesting and up-to-date information on your correctly.

  • Page 9: Filling The Bean Container

    1 Preparing and using for the first time Filling the bean container g T Turn the Rotary Switch until the required language is displayed, for example LANGUAGE ENGLISH CAUTION Coffee beans which have been treated with additives (e.g. sugar), ground coffee or freeze-dried coffee will damage the grinder.

  • Page 10: First-Time Use Without Filter Cartridge Activation

    1 Preparing and using for the first time T Fill the water tank with fresh, cold water and T Remove the water tank. reinsert it. T Place a receptacle (at least 500 ml) under the hot-water and dual spout. micro 9 T Fill the water tank with fresh, cold water and reinsert it.

  • Page 11: Adjusting The Grinder

    The Filling the water tank full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from Daily maintenance of the machine and hygiene your specialised dealer. when handling milk, coffee and water are key to a perfect coffee result in the cup every time.

  • Page 12: Espresso, Coffee

    2 Preparation Espresso, coffee T Immerse the other end of the milk pipe in a receptacle with milk (figure: optional JURA Preparation of espresso < and coffee > follows 0.4 litre stainless steel vacuum milk this model. container). Example: Proceed as follows to prepare one coffee.

  • Page 13: Ground Coffee

    2 Preparation Example: Permanently adjust the amount of The preparation of coffee, espresso, cappuccino water for one coffee to the cup size. and latte macchiato with ground coffee follows Precondition: is displayed. Milk is this model. READY connected to the dual spout. Example: Prepare a cup of coffee using ground T Place a cup under the dual spout.

  • Page 14: Daily Operation

    3 Daily operation 3 Daily operation Switching off the machine When the ENA is switched off, the system is Switching on the machine automatically rinsed if a speciality coffee has been Daily maintenance of the machine and hygiene prepared. If cappuccino or latte macchiato has when handling milk, coffee and water are key been prepared, cappuccino frother rinsing also to a perfect coffee result in the cup every time.

  • Page 15: Setting The Water Hardness

    4 Permanent settings in programming mode Example: Permanently change the coffee strength Setting the water hardness ) for espresso from FLAVOUR STRONG E If you are using the CLARIS Blue filter NORMAL cartridge and have activated it in program- Precondition: is displayed.

  • Page 16: Energy-Saving Mode

    4 Permanent settings in programming mode Energy-saving mode off automatically after the preset time following the last action on the machine. The energy-saving mode (Energy Save Mode, E.S.M. ) helps you to prevent your machine from The automatic switch-off can be set to between ©...

  • Page 17: Unit For Amount Of Water

    4 Permanent settings in programming mode Example: Change the setting such that cappuccino k T Press the Rotary Switch to enter the frother rinsing is performed immediately after programme item. preparation of a speciality coffee with milk. Precondition: is displayed. g T Turn the Rotary Switch until is displayed.

  • Page 18: Maintenance

    RINSE products. k T Press the Rotary Switch to enter the programme item. C-CLEAN E JURA milk system cleaner is available from g T Turn the Rotary Switch until RINSE specialized dealers. displayed. k T Press and hold the Rotary Switch until k T Press the Rotary Switch to initiate the rinse appears.

  • Page 19: Dismantling And Rinsing The Dual Spout

    The operation stops automatically. individual parts in a solution of 250 ml of READY cold water and 1 capful of JURA milk system cleaner and then rinse thoroughly. Dismantling and rinsing the dual spout T Fit the air intake pipe.

  • Page 20: Inserting And Activating The Filter

    5 Maintenance T Reassemble the milk system, noting the k T Press the Rotary Switch to confirm the numbering on the parts. setting. INSERT FILTER T Remove and empty the water tank. T Open the filter holder. T Insert the filter cartridge into the water tank, exerting slight pressure.

  • Page 21: Changing The Filter

    E The cleaning programme lasts approxi- mately 15 minutes. E Do not interrupt the cleaning programme. The quality of cleaning will be impaired if you do so. E JURA cleaning tablets are available from specialized dealers. Precondition: is displayed. CLEAN READY c T Press the Maintenance button.

  • Page 22: Descaling The Machine

    5 Maintenance T Open the powder chute for ground coffee CAUTION and drop in a JURA cleaning tablet. If the descaling operation is interrupted, there may be damage to the machine. T Allow the descaling programme to run to the end.

  • Page 23: Descaling The Water Tank

    5 Maintenance T Place a receptacle under the hot-water Cleaning the bean container spout. Coffee beans may be covered with a slight oil film c T Press the Maintenance button. which remains on the walls of the bean container. , water flows out of the DE-SCALING These traces may negatively affect the coffee hot-water spout repeatedly.

  • Page 24: Display Messages

    6 Display messages 6 Display messages Message Cause/Result Action The water tank is empty or T Fill the water tank (see Chapter 1 ‘Preparing and FILL WATER not correctly inserted. You using for the first time – Filling the water tank’). TANK cannot prepare any products.

  • Page 25: Troubleshooting

    Grinder is making a very There are foreign objects T Contact customer support in your country loud noise. in the grinder. (see Chapter 11 ‘JURA contact details / Legal information’). is displayed. If the machine was T Warm the machine at room temperature.

  • Page 26: Transport And Environmentally Friendly Disposal

    8 Transport and environmentally friendly disposal 8 Transport and environmentally 9 Technical data friendly disposal Voltage 220–240 V ~, 50 Hz Transport / Emptying the system Power 1450 W Keep the packaging for your ENA. It should be used Conformity mark to protect the machine during transport.

  • Page 27: Index

    Hot-water spout 34 Coffee 42 Coffee grounds container 34 Consistency of grind Instant coffee Adjusting the grinder 41 Ground coffee 43 Grinder adjustment switch 35 Internet 38 Contact details 59 Cup grille 34 JURA Customer support 59 Contact details 59 Internet 38...
  • Page 28 10 Index Language 47 Rinses 46 Latte macchiato 42 Rinsing Machine 48 Rotary Switch 35 Machine Status display 35 Cleaning 51 Rotary Switch status display 35 Descaling 52 Rinsing 48 Setting up 38 Safety 36 Switching off 44 Safety information 36 Switching on 44 Settings Mains cable 34...

  • Page 29: Jura Contact Details / Legal Information Nl

    Art. J69783/ENA Micro 9/de-ru/201406 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 @ You will find additional contact details for your country at www.jura.com.
