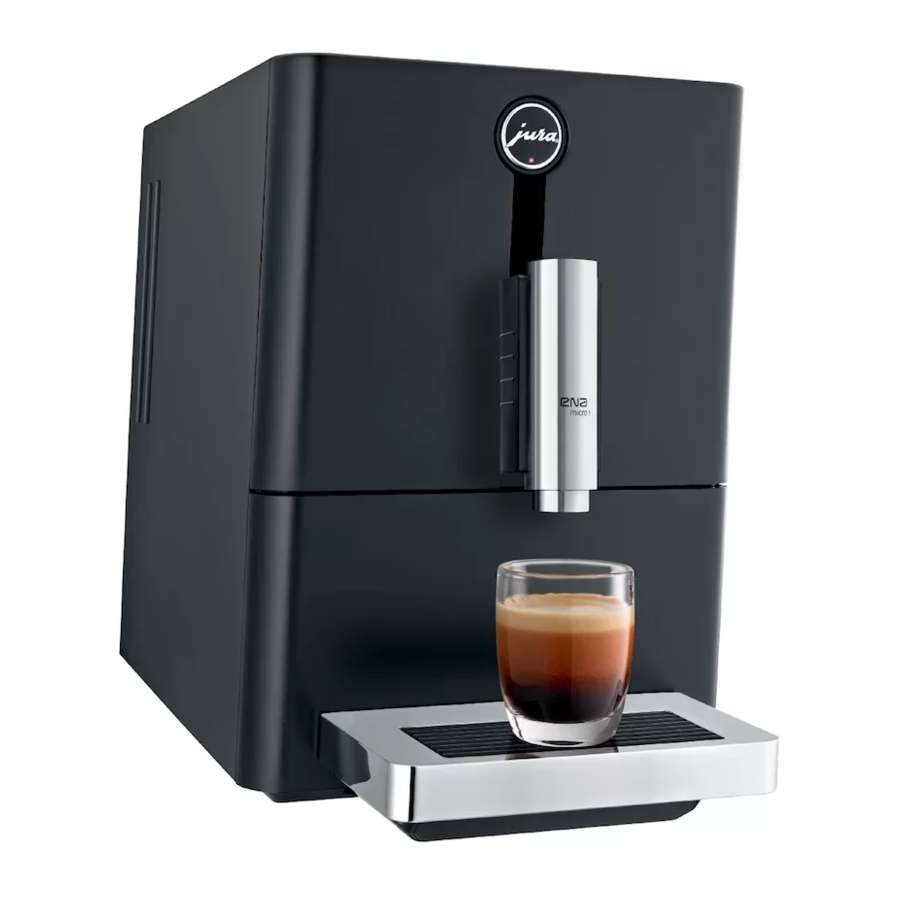

Jura ENA Micro 1 Series Technical Information
  1. Manuals
  2. Brands
  3. Jura Manuals
  4. Coffee Maker
  5. ENA Micro 1
  6. Technical information

Jura ENA Micro 1 Series Technical Information

Hide thumbs Also See for ENA Micro 1 Series:
Table of Contents

Advertisement

Quick Links

Elektroapparate AG
Language
Author: Patrik Studer
Date:
Rev. A:
09.05.2012
19.09.2012
Technical information
EN
ENA Micro 1
Micro Black
Micro Orange
Checked:
Rev. B:
Rev. C:
ENA Micro 1
p
Approved:
Docu.-name:
L:\Geräte\ENA_Micro\ENA_Micro_1\Schulungsunterlagen\E\
Technische_Informationen_ENA_Micro_1_EN.doc
Rev. D:
Rev. E:
Technical Support
Technische_Informationen_ENA_Micro_1_EN.doc
Rev. F:
Page 1/10

Advertisement

Table of Contents
loading

Related Manuals for Jura ENA Micro 1 Series

Summary of Contents for Jura ENA Micro 1 Series

  • Page 1 Technical information Technical Support Elektroapparate AG ENA Micro 1 Language ENA Micro 1 Micro Black Micro Orange Author: Patrik Studer Checked: Approved: Docu.-name: Technische_Informationen_ENA_Micro_1_EN.doc L:\Geräte\ENA_Micro\ENA_Micro_1\Schulungsunterlagen\E\ Technische_Informationen_ENA_Micro_1_EN.doc Date: Rev. A: Rev. B: Rev. C: Rev. D: Rev. E: Rev. F: Page 1/10 09.05.2012 19.09.2012...

  • Page 2: Table Of Contents

    Technical information Technical Support Elektroapparate AG ENA Micro 1 Language Table of contents: Control elements: ........................3 Service connector, 2 generation:....................3 Service connector, 1 generation: ....................4 Key combinations: ........................4 Reset to “first use” (Fill system, Initializing): ................4 Reset to factory settings: ......................4 Display: ............................5 Grinder with Aroma+: ......................5 Bean container: ........................5...

  • Page 3: Control Elements

    Technical information Technical Support Elektroapparate AG ENA Micro 1 Language Control elements: Service connector, 2 generation: Since the production June 2012, the side panels are assembled concise to the front. This means, that there is no slot anymore to open the service-cover. To release the service-cover you can follow up the steps below: Insert a metal ruler (thickness max.

  • Page 4: Service Connector, 1 St Generation

    Technical information Technical Support Elektroapparate AG ENA Micro 1 Language Service connector, 1 generation: Push with a small screw driver (No. 0) into both slots, between side- and front panel, to release the  interlock and pull top cover up to remove it Support by pushing with finger from above ...

  • Page 5: Display

    Technical information Technical Support Elektroapparate AG ENA Micro 1 Language Display: Touchscreen with pictograms and ergonomic finger depressions  Grinder with Aroma+: Precision grinder, 5 grinding degrees  Bean container: Capacity 125 g  Brewing unit Micro: Is approximately 3 cm lower in height compared to the standard brewing unit ...

  • Page 6: Mains Switch (Zero Energy Switch)

    Technical information Technical Support Elektroapparate AG ENA Micro 1 Language Mains switch (Zero Energy Switch): The ENA is equipped with a Zero Energy Switch (ZES)  Coffee spout: Height adjustable from 55 until 138 mm  Heating: New thermoblock TB2010 (1400 W) ...

  • Page 7: Decalcification

    Technical information Technical Support Elektroapparate AG ENA Micro 1 Language Decalcification: After reaching the programmed amount of water, according to the water hardness level, the display  shows ( ) Manual Descaling start by touching ( & ) for approximately 2 seconds and then ...

  • Page 8: Temperature

    Technical information Technical Support Elektroapparate AG ENA Micro 1 Language 14.3 Temperature: Fix HIGH  Draw off temperature is measured at the outlet and is, depending on settings, between  82 °C ... 89 °C (179 °F ... 192 °F) In the range of <...

  • Page 9: Prepare Appliance For Resale

    Technical information Technical Support Elektroapparate AG ENA Micro 1 Language Prepare appliance for resale: Procedure: All products will be reset to factory settings and the fluid system is empty due to protection against frost. The appliance asks the customer for Filter YES/NO and afterwards it will fill the system with water. Initial position: The appliance is fully working and if necessary, an exit diagnosis has been made with the animation system.

  • Page 10: Error Messages

    Technical information Technical Support Elektroapparate AG ENA Micro 1 Language Error messages: If there is a malfunction, an error message as described below is shown on the display:  The appliance switches-OFF automatically 5 sec. after an ERROR  Display Message Designation ERROR 1 COFFEE: Temperature sensor notify “value below tolerance”...
