Syscom Video XD1000VA Instruction Manual page 7

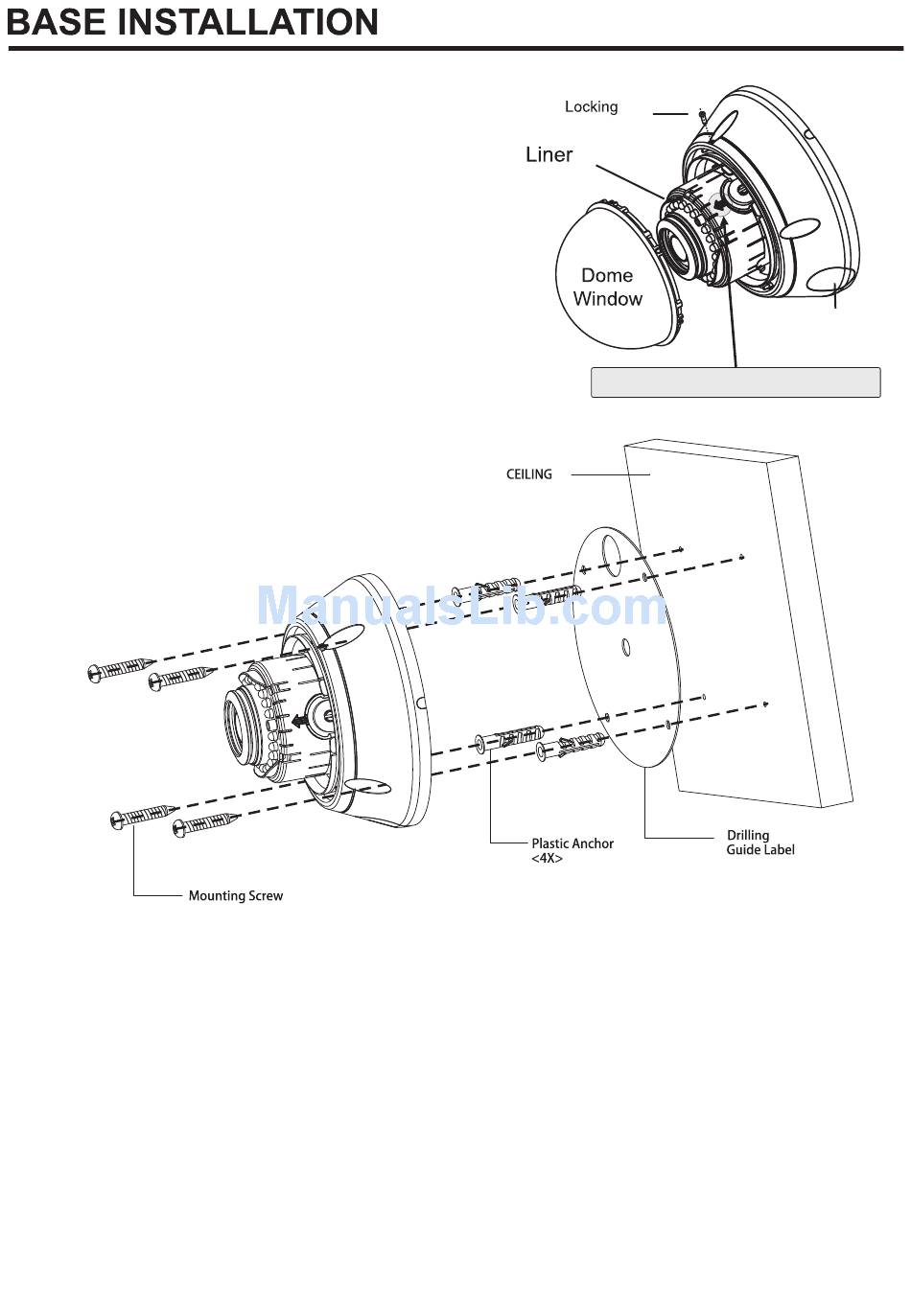

1. Make mounting holes and cable hole in
the place (ceiling or wall) to which this
dome camera is installed using the
Drilling guide label.
2. Drill the mounting location, using the Drillng guide.
3. Attach the housing to the ceiling using
suitable fasteners, PTS1 5x30 screws
are supplied only use if they are suitable.
4. Tighten a mounting screws.
PTS1 5x30 <4X>
Press here to adjust the angle.
7
PT-Plug
