BACKLIGHT
The BACKLIGHT menu is used to the ability to expand the dynamic range and to prevent back
lighting from the image.
1)WDR
Select the Dynamic Range level.
* When WDR is ON, D-WDR, D-ZOOM, SMART D-ZOOM
and DIS function can not turn on.
2)BLC
Prevents such a back light effect to secure a clear image under All illumination
environments.
Adjust the size of Back Light Compensation area.
AREA
DEFAULT
3)HLMASK
Mask the high light zone with specific color & level.
SELECT
DISPLAY
LEVEL
MODE
DEFAULT

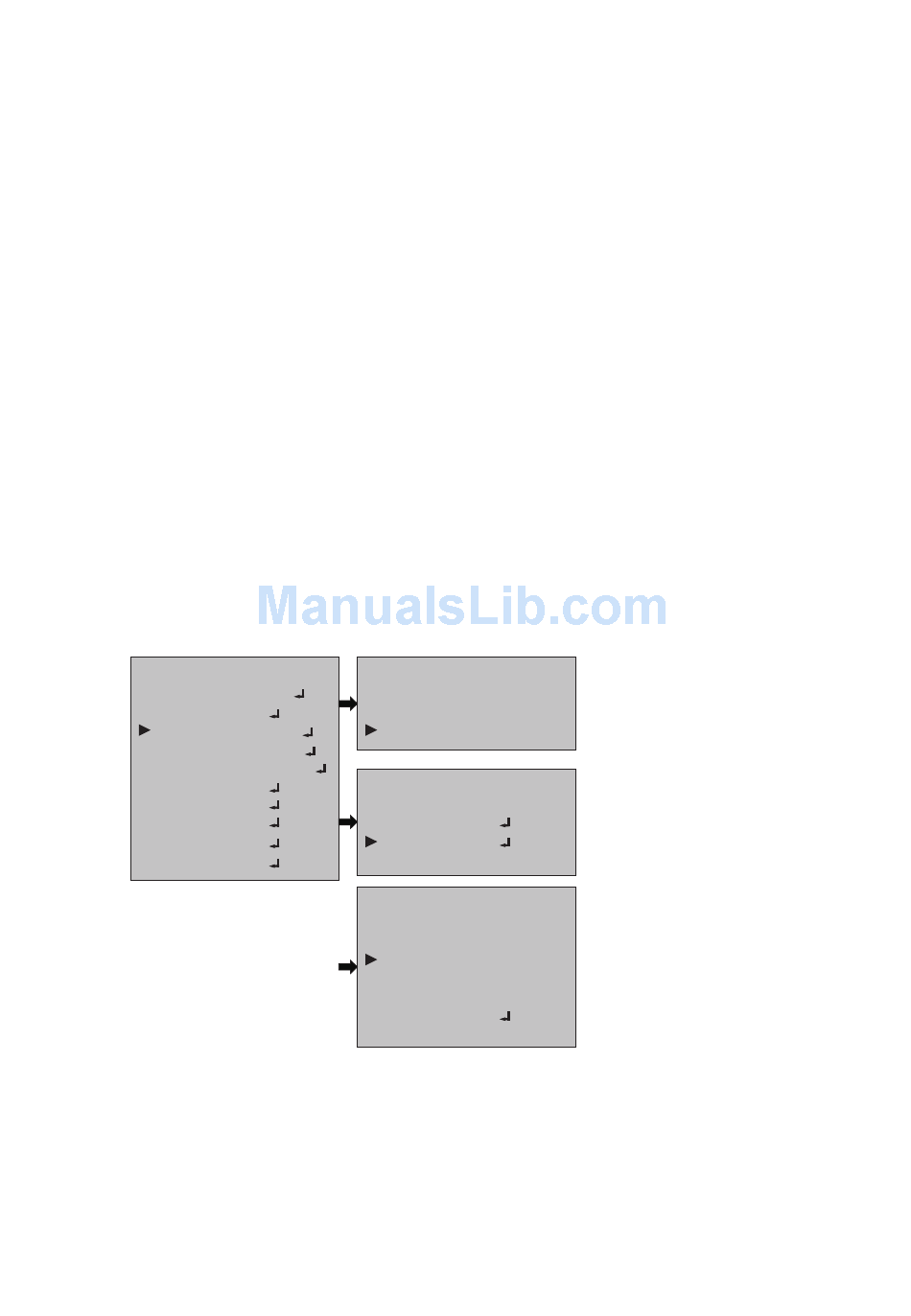

< BACKLIGHT >
LENS
EXPOSURE
BACK LIGHT
WHITE BAL
DAY&NIGHT
FUNCTION
SYSTEM
RESET
EXIT
Adjust the window position & size
Initialize the setting values
Select the HLMASK area ▶ AREA1 - AREA4
Adjust the HLMASK area window position & size
Adjust the window position & size
Initialize the setting values
Adjust the window position & size
MAIN MANU
DC
OFF
ATW
AUTO
WDR
GAIN LOW
WDR OFFSET |▪▪▪▪▪| 0
RETURN RET
BLC
GAIN MIDDLE
AREA
DEFAULT
RETURN RET
HLBLC
SELECT AREA
DISPLAY ON
LEVEL |▪▪l▪▪| 30
MODE ALL DAY
BLACK MASK ON
DEFAULT
RETURN RET
