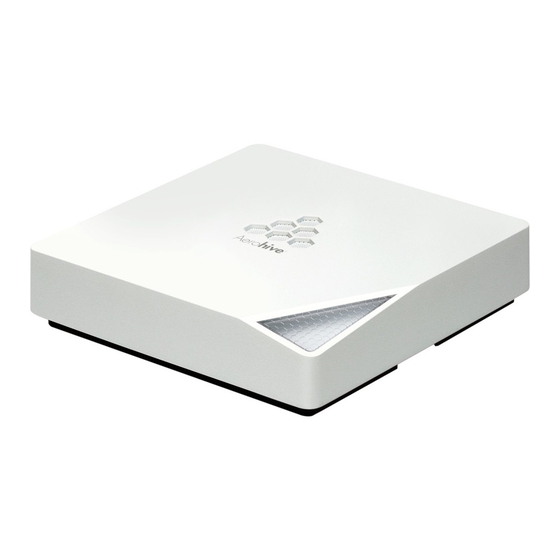

Aerohive AP330 and AP350
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP330 and is the answer not in the manual?

Questions and answers

Ben Keller
April 11, 2025

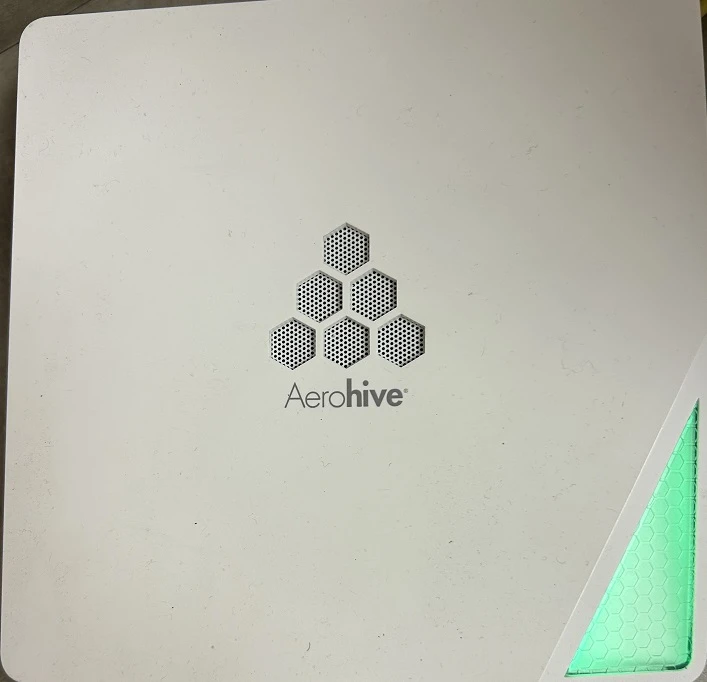

All Aerohive HiveAP 300 APs have green lights. No network changes have been made. They have always had white lights. Please help as I have no idea how to get to the HiveManager!

User image 67f937775d1ef
1 comments:
Mr. Anderson
April 11, 2025

The lights on Aerohive AP330 access points are green instead of white because the AP is in the process of booting up. White LED lights indicate that the AP is working and connected.

This answer is automatically generated

Summary of Contents for Aerohive AP330

  • Page 1 Aerohive AP330 and AP350 User Guide...
  • Page 3 Copyright © 2012 Aerohive Networks, Inc. All rights reserved. Aerohive Networks, the Aerohive Networks logo, HiveOS, HiveAP, and HiveManager are trademarks of Aerohive Networks, Inc. All other trademarks and registered trademarks are the property of their respective companies. Information in this document is subject to change without notice. No part of this document may be...
  • Page 4: About This Guide

    About This Guide This guide describes Aerohive AP330 and AP350 devices, including component descriptions, installation and mounting instructions, wiring diagrams, and hardware specifications. Aerohive...
  • Page 5: Table Of Contents

    Contents Aerohive AP330 and AP350 ..................... 7 AP330 and AP350 Product Overview ..................8 Ethernet and Console Ports..................... 10 Aggregate and Redundant Interfaces ..............11 Console Port ....................... 13 USB Modem Port....................... 14 Status Indicator......................... 14 Antennas ........................... 14 Configuring Antennas ....................15 Mounting the AP330 or AP350 ....................
  • Page 6 Contents Aerohive...
  • Page 7: Aerohive Ap330 And Ap350

    A-MPDU and A-MSDU packet aggregation, short guard interval, and MCS23 data rates, they can provide a PHY data rate up to 450 Mbps per radio. The AP330 has internal antennas, and the AP350 has detachable external antennas. They both have dual 10/100/1000 Ethernet ports for link aggregation or link redundancy.
  • Page 8: Ap330 And Ap350 Product Overview

    AP330 AP350 P RODUCT VERVIEW The AP330 and AP350 models provide excellent throughput and coverage. The AP330 has internal antennas, and the AP350 has detachable external antennas. You can see the hardware components on the AP in Figure 1. Each component is described in Table 1 "AP330 and AP350 component...
  • Page 9: Ethernet And Console Ports" On

    The 12-volt DC power connector (2.0 amps) is one of two methods through which you can power the AP330 and AP350. To connect it to a 100 – 240-volt AC power source, use the AC/DC power adaptor that is available as an extra option. Because the AP does not have an on/off switch, connecting it to a power source automatically powers on the device.
  • Page 10: Ethernet And Console Ports

    Chapter 1 Aerohive AP330 and AP350 Ethernet and Console Ports There are three ports on the AP330 and AP350: two RJ-45 10/100/1000Base-T/TX Ethernet ports and an RJ-45 console port. The pin assignments in the Ethernet ports follow the TIA/EIA-568-B standard (see Figure 2).
  • Page 11: Aggregate And Redundant Interfaces

    802.3at-compatible. Such equipment can be embedded in a switch or router, or it can come from purpose-built devices that inject power into the Ethernet line en route to the AP. Aerohive provides several PoE injectors as accessories that you can order: AH-ACC-INJ-30W-EU, AH-ACC-INJ-30W-UK, AH-ACC-INJ-30W-US, AH-ACC-INJ-30W-AU, and AH-ACC-INJ-30W-IL.
  • Page 12 Chapter 1 Aerohive AP330 and AP350 Switch(config-if)#exit Switch(config)#int fastEthernet 0/2 Switch(config-if)#switchport mode access Switch(config-if)#channel-group 1 mode on Switch(config-if)#spanning-tree portfast Switch(config-if)#exit Switch(config)#exit Switch#wr mem Finally, you must cable the Cisco switch and the AP together: Cisco 0/1 to AP eth0, and Cisco 0/2 to AP eth1.
  • Page 13: Console Port

    CTS (unused) DTR (Data Terminal Ready) 2 DSR (unused) TXD (Transmitted Data) Ground Ground Ground Ground RXD (Received Data) DSR (Data Set Ready) DTR (unused) CTS (Clear to Send) RTS (unused) RI (Ring Indicator, unused) AP330 and AP350 User Guide...
  • Page 14: Usb Modem Port

    Ethernet connection to the WAN is not possible, you can use the USB modem as the primary (and only) interface to the WAN. When using a wireless USB modem on an AP330 or AP350, you must connect it to an AC power source instead of using PoE to power the device.
  • Page 15: Configuring Antennas

    "Configuring Antennas". The AP330 and AP350 use a 2.4 GHz WLAN power amplifier from SST Communications (p/n SST12LP15A) and a 5 GHz WLAN power amplifier from Microsemi (p/n LX5530). Connect the 2.4 GHz and 5 GHz antennas to the connectors with the corresponding 2.4 GHz and 5 GHz labels.
  • Page 16 Chapter 1 Aerohive AP330 and AP350 Figure 6 Directional antenna patterns (Bird’s eye view) Patch Lower gain antennas Higher gain Higher gain Omnidirectional Antennas You typically orient omnidirectional antennas vertically, positioning them on all devices in the same direction. Omnidirectional antennas create coverage areas that can be toroidal (doughnut-shaped) or...
  • Page 17: Mounting The Ap330 Or Ap350

    Ceiling Mount To mount the AP330 or AP350 to a track in a dropped ceiling, use one of the two rail mounts that ship with the product, depending on whether the ceiling track is flush with the ceiling tiles or recessed: •...
  • Page 18: Surface Mount

    You can use the flat mounting plate to attach the AP330 or AP350 to any surface that supports its weight (AP330: 1.5 lb or 0.68 kg; AP350: 2.375 lb or 1.08 kg), and to which you can screw or nail the plate. First, mount...
  • Page 19: Locking The Ap330 And Ap350

    Figure 11, for the AP330. (If you want to expose the USB port, use the security screw without the cover.) Figure 11 Locking the AP330 to the mounting plate...
  • Page 20: Connecting The Ap To The Network

    HiveManager and what you can do to help establish a connection between them. They are available for free at www.aerohive.com/techdocs. To configure the AP330 and AP350 to provide wireless access to the network, refer to the technical documentation for HiveManager, the Aerohive device management system.
  • Page 21: Device, Power, And Environmental Specifications

    NVIRONMENTAL PECIFICATIONS Understanding the range of specifications for the AP330 and AP350 is necessary for optimal deployment and device operation. The following specifications describe the physical features and hardware components, the power adapter and PoE (Power over Ethernet) electrical requirements, and the temperature and humidity ranges in which the devices can operate.
  • Page 22 Chapter 1 Aerohive AP330 and AP350 Aerohive...
  • Page 23: Index

    12 Ethernet ports 10, 11 gain 14 impedence 14 serial port, See individual platform entries LED brightness control 14 locking 9, 19 mounting, ceiling 17 mounting, surface 18 USB modem connector 9 AP330 and AP350 User Guide...
  • Page 24 Index Aerohive...
