AP630 Hardware User Guide
AP630 Hardware User Guide
Read about and view specifications and compliance information for the AP630 in this topic. Install the AP630 using this topic.

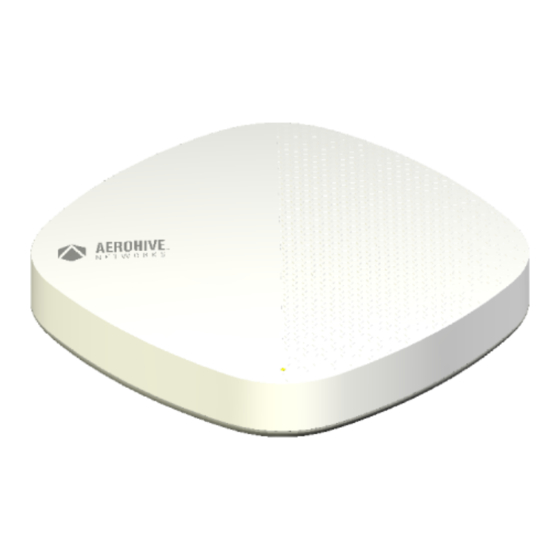

The AP630 is a high-performance, dual-band concurrent access point with one 11ax 4x4 2.4 G and one 11ax 4x4 5 G radio. The AP630 is designed for
indoor high-density environments that require HD video streaming and large file transfers. Equipped with two 10/100/100 Mb Ethernet ports, a Con-
sole port, and powered by PoE; this device supports IEEE 802.11ax OFDMA (Orthogonal Frequency-Division Multiple Access).
For regulatory and compliance information, see "Regulatory Compliance Statements".
Important! Change the Country Code
If your access point is configured for the World Regulatory Domain, it is important to set the country code to the country in which the AP will be
deployed to meet regulatory requirements and for optimal wireless operation. To do this, follow these steps:
The country code selection is for World models only and is not available to FCC, CAN, and other country-specific models. Per FCC reg-
ulations, all Wi-Fi products marketed in the United States must be set to U.S. channels only.
1. Power on the AP and allow it to find and connect to HiveManager. Once the AP is connected it appears in the table of devices on the >
Devices page.
2. Select the check box next to the AP, and then choose Assign Country Code from the Actions drop-down list. In the dialog box that
appears, select the appropriate country from the drop-down list, and then click Save.
3. Upload your changes to the device.
Safety Guidelines
Safety Guidelines
The information in this section applies to AP630 devices.
The following safety icons are used in these guidelines to identify the type of precaution:
