Aerohive AP250

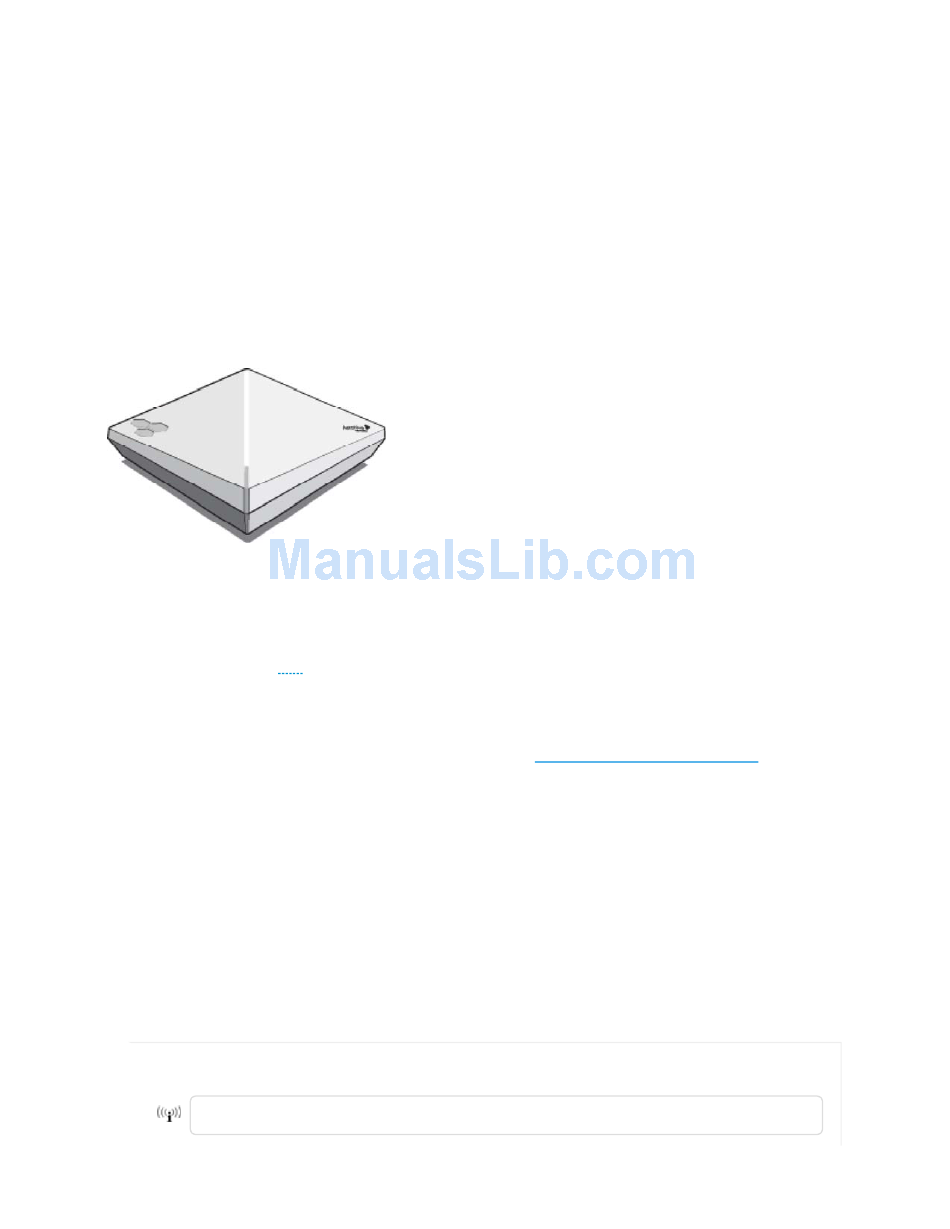

Aerohive AP250 Hardware User Guide

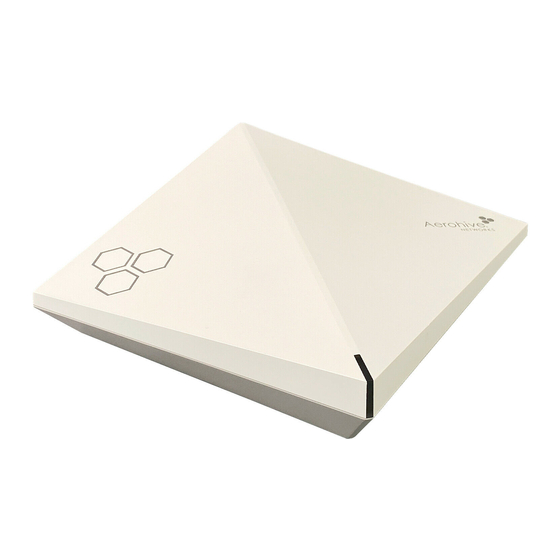

The Aerohive AP250 features two Wi-Fi radios; a fixed 5 GHz 802.11ac Wave 2 radio and a
software-selectable 802.11n 2.4 GHz/ 802.11ac 5 GHz radio. Software-selectable radio allows IT
managers to enable 802.11ac performance on both radios for the best coverage and capacity,
up to 2.6 Gbps. Built-in BLE  provides proximity, indoor location tracking, and other location-based
mobile engagement services. The AP250 has the power to support enterprise-grade features,
including built-in application visibility and control, RADIUS authentication, DHCP, captive web
portals, location services and spectrum analysis.
For more information about Aerohive APs in general, see
Important! Changing the Country Code: If your access point is configured for the World
Regulatory Domain, it is important to set the country code to the country in which the AP will be
deployed for optimal wireless operation. To do this, follow these steps:
1. Power on the AP and allow it to find and connect to HiveManager NG. Once the
AP is connected, it appears in the table of unconfigured devices on the Monitor > Devices
page and is categorized as New under the Management Status table header.
2. Select the check box next to the AP, and then choose Update > Advanced > Update
Country.
3. On the Update Country Code page, choose the appropriate country code from the drop-
down list, and then click Upload.
Regulatory Compliance Statements
The regulatory compliance statements in this section apply to AP250 devices.
For Japan,
the AP250 is restricted for indoor use in the 5150-5350 MHz band only.
"Introduction to Aerohive APs"
