AP130 User Guide

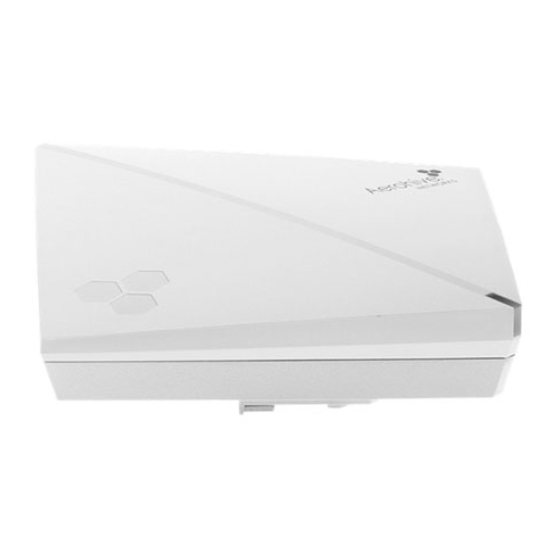

The AP130 wireless access point provides dual concurrent 2.4 GHz 802.11b/g/n and 5 GHz 802.11a/n/ac
radios for 2x2:2 MIMO (multiple input multiple output) antennas. These devices have built-in mounting
hardware that allows you to install them on a ceiling track or a wall. This guide covers the following topics
about the AP130.
•
•
•
•
•
•
"AP130 LEDs" on page 5
•
•
•
To register, get the latest product documentation, see compliance information, and download software
updates, visit www.aerohive.com/support. For detailed hardware information about this device, visit
www.aerohive.com/quick.

AP130 Product Overview

This guide explains how to install the AP130 on a wall or flat surface, or to the tracks of a recessed ceiling, and
connect it to Aerohive HiveManager over the network.
Kit Contents, Required Accessories, and Tools
The AP130 kit includes the following items:
•
AP130 chassis
•
QuickStart Guide
•
Diagonal mount bracket
•
Hardware kit: Three wall mount screws with anchors, two security screws, and two cross-head screws
To install your AP130, you will need a crosshead screwdriver, a flat blade screwdriver, and a drill (for wall
mounts).
AP130 User Guide
®
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP130 and is the answer not in the manual?

Questions and answers

Related Manuals for Aerohive AP130

Summary of Contents for Aerohive AP130

  • Page 1: Table Of Contents

    AP130 Product Overview This guide explains how to install the AP130 on a wall or flat surface, or to the tracks of a recessed ceiling, and connect it to Aerohive HiveManager over the network. Kit Contents, Required Accessories, and Tools The AP130 kit includes the following items: •...

  • Page 2: Hardware Components

    Reset button Safety Instructions and Site Hazard Warnings Read and follow these safety instructions and hazard warnings before installing an AP130. Keep these instructions for future reference. The following icons are used to identify the type of caution or warning in this document: This icon indicates a general caution.

  • Page 3: Installing The Ap130

    Installing the AP130 You can mount the AP130 outdoors on a flat surface, on a wall, or on the tracks of a dropped ceiling grid using the mounting bracket that ships with the device. Use the locking bracket and a security screw to lock the device in place once it is mounted.

  • Page 4: Wall Mount

    Use the diagonal mounting bracket to attach the AP to any vertical surface that supports its weight, and to which you can install wall mount screws. To mount the AP130 on a vertical surface, do the following: 1. Use the holes in the mounting bracket as a template to mark the wall for the location of the mounting screws.

  • Page 5: Accessing The Reset Button

    1 and 5 seconds to reboot the device, or for 5 seconds or more to return the device to the factory default settings. AP130 LEDs The AP130 has a Status LED bar on the top and front corner of the unit. The LED colors and what they indicate are described below. •...

  • Page 6: Device, Power, And Environmental Specifications

    Aerohive offers a variety of AP130 accessories. Contact your sales representative for more information. Device, Power, and Environmental Specifications Understanding the range of specifications for the AP130 is necessary for optimal deployment and device operations. The following specifications describe the physical features and hardware components, the PoE requirements, and the temperature and humidity ranges in which the devices can operate.]...

  • Page 7: Federal Communication Commission Interference Statement

    Aerohive Networks • Česky [Czech]: [Aerohive] tímto prohlašuje, že tento [AP130] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. • Dansk [Danish]: Undertegnede [Aerohive] erklærer herved, at følgende udstyr [AP130] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
  • Page 8 IMPORTANT NOTE - Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. AP130 User Guide...

  • Page 9: Industry Canada Statement

    (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. AP130 User Guide...
  • Page 10 「電磁波曝露量 MPE 標準值 1mW/cm ，送測產品實測值為：___ mW/cm 」 。 「電磁波曝露量 MPE 標準值 1mW/cm cm」 。 ，本產品使用時建議應距離人體：___ 「5.25-5.35 GHz 頻帶內操作之無線資訊傳輸設備，限於室內使用」 。 並於該中文使用說明書及器材上標示 「本器材須經專業工程人員安裝及設定，始得設置使用，且不得直接販售給一般消費者」 。 © 2015 Aerohive Networks, Inc. Aerohive is a U.S. registered trademark of Aerohive Networks, Inc. AP130 User Guide...
