AP150W Hardware User Guide
Aerohive AP150W Hardware User Guide
Read about and view specifications and compliance information for the AP150W in this topic. Install the
AP150W using this topic.

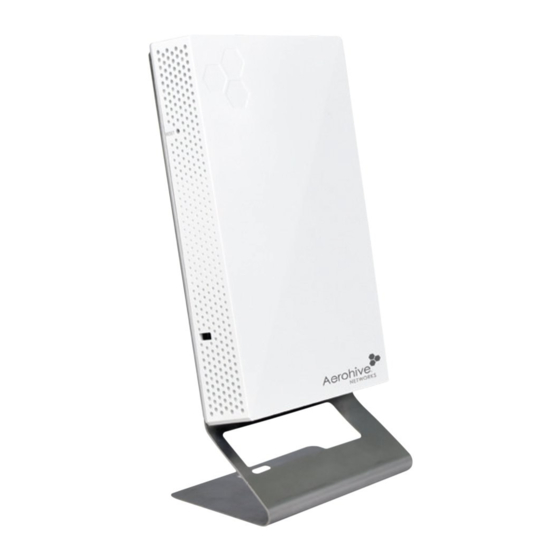

The Aerohive AP150W is a compact, lightweight AP that can be mounted directly into a wall plate, or
on a stand on a desktop. The AP150W features two Wi-Fi radios; a fixed 5 GHz 802.11ac Wave 2 radio
and a software-selectable 802.11n 2.4 GHz or 802.11ac 5 GHz radio. Software-selectable radio allows IT
managers to enable 802.11ac performance on both radios for the best coverage and capacity, up to
2.6 Gbps. 3x3:3 SU-MIMO provides 1300 Mbps data rates and 2x2 MU-MIMO provides 867 Mbps data
rates. Built-in BLE provides proximity, indoor location tracking, and other location-based mobile
engagement services.
The AP150W provides three wired Gigabit Ethernet ports. One of these ports provides PoE (Power over
Ethernet) for applications such as VoIP phones or IP cameras. For wall outlets with more than one cable
or connector, a passive pass-through port on the back of the device allows you to connect the AP150W
without disabling the other cable or connector.
The AP150W has the power to support enterprise-grade features, including built-in application visibility
and control, RADIUS authentication, DHCP, captive web portals, location services and spectrum
analysis.
For more information about Aerohive APs in general, see
For information about connecting your AP to the network, best-practices, and troubleshooting, see
"Basic Troubleshooting for New
For hardware compliance statements, see "Regulatory Compliance Statements".
Important! Changing the Country Code
If your access point is configured for the World Regulatory Domain, it is important to set the country
code to the country in which the AP will be deployed to meet regulatory requirements and for optimal
wireless operation. To do this, follow these steps:
The country code selection is for World models only and is not available to FCC, CAN, and
other country-specific models. Per FCC regulations, all Wi-Fi products marketed in the
United States must be set to U.S. channels only.
For Devices Running HiveManager Classic
Devices".
"Introduction to Aerohive APs"
Page 1 of 17
8/21/2017
Advertisement
Table of Contents
Related Manuals for Aerohive AP150W
Summary of Contents for Aerohive AP150W
- Page 1 The Aerohive AP150W is a compact, lightweight AP that can be mounted directly into a wall plate, or on a stand on a desktop. The AP150W features two Wi-Fi radios; a fixed 5 GHz 802.11ac Wave 2 radio and a software-selectable 802.11n 2.4 GHz or 802.11ac 5 GHz radio. Software-selectable radio allows IT managers to enable 802.11ac performance on both radios for the best coverage and capacity, up to...
-
Page 2: Safety Guidelines
The following table lists the safety precautions you should follow when installing your AP150W devices. Aerohive devices must be installed by a professional installer who is certified to install these types of devices and to ensure that they are properly grounded and meet applicable local and national electrical codes. -
Page 3: Shipping Carton Contents
Install the AP150W The following sections describe how to install your AP150W devices, connect them to the network, and start managing them in HiveManager NG. Shipping Carton Contents The AP150W access point shipping carton contains the following items: •... - Page 4 AP150W Hardware User Guide Page 4 of 17 1. Remove the wall outlet covering. 2. Attach the wall bracket to the wall with the large opening in the bracket aligned to the hole in the wall. Use at least two mounting screws to mount the bracket. The illustration below shows a bracket for a US/SINGLE wall socket.
- Page 5 AP150W Hardware User Guide Page 5 of 17 3. If necessary, use the short Ethernet cable that ships with the device to connect the Eth0 port on the back of your device to the jack in the wall. 8/21/2017...
- Page 6 AP150W Hardware User Guide Page 6 of 17 4. Attach the device to the bracket by inserting the two tabs on the bracket into the holes in the back of the device, and the flange on top of the bracket onto the opening at the top of the device back panel.
- Page 7 AP150W Hardware User Guide Page 7 of 17 5. Install a screw in the top of the device to secure the unit to the top flange on the bracket. 8/21/2017...
- Page 8 Video: Installing the AP150W Wallplate Access Point Connect the AP150W Follow these steps to connect your AP150W to power and to the network. 1. Connect a standard RJ45 Ethernet cable from ETH0 on the AP to a switch that provides PoE power, or use a PoE injector (see"Ethernet Ports"...
-
Page 9: Hardware Components
Devices page in the Monitor section of the HiveManager NG GUI, the initial setup is complete and you can begin managing the AP with HiveManager NG. Hardware Components You can see the hardware components of the AP150W in the illustration below and read about them in the sections that follow. Component Descriptions... -
Page 10: Power Options
With 802.3af, there is no PoE budget support on the downlink port. With 802.3af the PoE budget on the downlink port is 12 W. The AP150W can also be powered using a 48VDC, 0.75 A power supply (sold as an accessory). Using this method, the PoE budget on the downlink port is 15.4 W. -
Page 11: Hardware Specifications
• Storage temperature: -40° to 158° F (-40° to 70° C) • Relative Humidity: 5 to 95% RH (noncondensing) Regulatory Compliance Statements The regulatory compliance statements in this section apply to AP150W devices. For Japan, AP150W is restricted for indoor use in the 5150-5350 MHz band only. -
Page 12: Compliance Statements
AP150W Hardware User Guide Page 12 of 17 Compliance Statements The following compliance information applies to AP150W devices. R&TTE and Low Voltage Directives This device is compliant with the following directives: • R&TTE Directive 1995/5/EC • Low Voltage Directive 72/23/EEC AP250 Compliance Statement - Europe... - Page 13 AP150W Hardware User Guide Page 13 of 17 (b) the words 'Restrictions or Requirements in', in a language easily understood by end- users as determined by the Member State concerned, followed by the abbreviations of the Member States, as prescribed in Annex II, where such restrictions or requirements exist.
- Page 14 • Česky [Czech]: [Aerohive] tímto prohlašuje, že tento [AP150W] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
- Page 15 AP150W Hardware User Guide Page 15 of 17 • Slovensko [Slovenian]: [Aerohive] izjavlja, da je ta [AP150W] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. • Slovensky [Slovak]: [Aerohive] týmto vyhlasuje, že [AP150W] spĺňa základné požiadavky a všetky príslušné...
-
Page 16: Industry Canada Statement
AP150W Hardware User Guide Page 16 of 17 Industry Canada Statement: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: • This device may not cause interference, and • This device must accept any interference, including interference that may cause undesired operation of the device. - Page 17 AP150W Hardware User Guide Page 17 of 17 第十二條→經型式認證合格之低功率射頻電機，非經許可，公司，商號或使用者均不得擅自變更頻率、加大 功率或變更原設計之特性及功能。 第十四條→低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用， 並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用 電波輻射性電機設備之干擾。 在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。 無線資訊傳設備的製造廠商應確保頻率穩定性，如依製造廠商使用手冊上所述正常操作，發射的信號應維持 於操作頻帶中。 Taiwan MPE Warning 電磁波曝露量MPE標準值1 mW/cm2，送測產品實值為0.75289 mW/cm2，本產品使用時建議應距離人體 20cm。 Aerohive Documentation Portal | Aerohive Blogs | HiveCare Community Forum Copyright © 2017 Aerohive Networks, Inc. file:///C:/Users/dknodel/AppData/Local/Temp/MC_.htm 8/21/2017...
