Buffalo LinkStation LS-VL User Manual page 87

Using your LinkStation
• Using in RAID 1 mode
1
Change system to normal mode (page 89).
2
3
4
5
6
The [Confirm Operation] screen will appear. Enter the number shown in the [Confirmation
Number] field within 60 seconds, and click [Apply].
While the array is being built, the file transfer speed will be slower than usual. It will take about
6 hours for a 1 TB RAID array. The Info/Error LED or the Power LED will blink amber while the
array is being built. Do not turn off the LinkStation until the RAID array is built.
7
Follow the instructions displayed on the screen.
When the build finishes, the LED will stop blinking. You have set up a RAID 1 array. Turn to page 30
to create a shared folder.
LinkStation User Manual

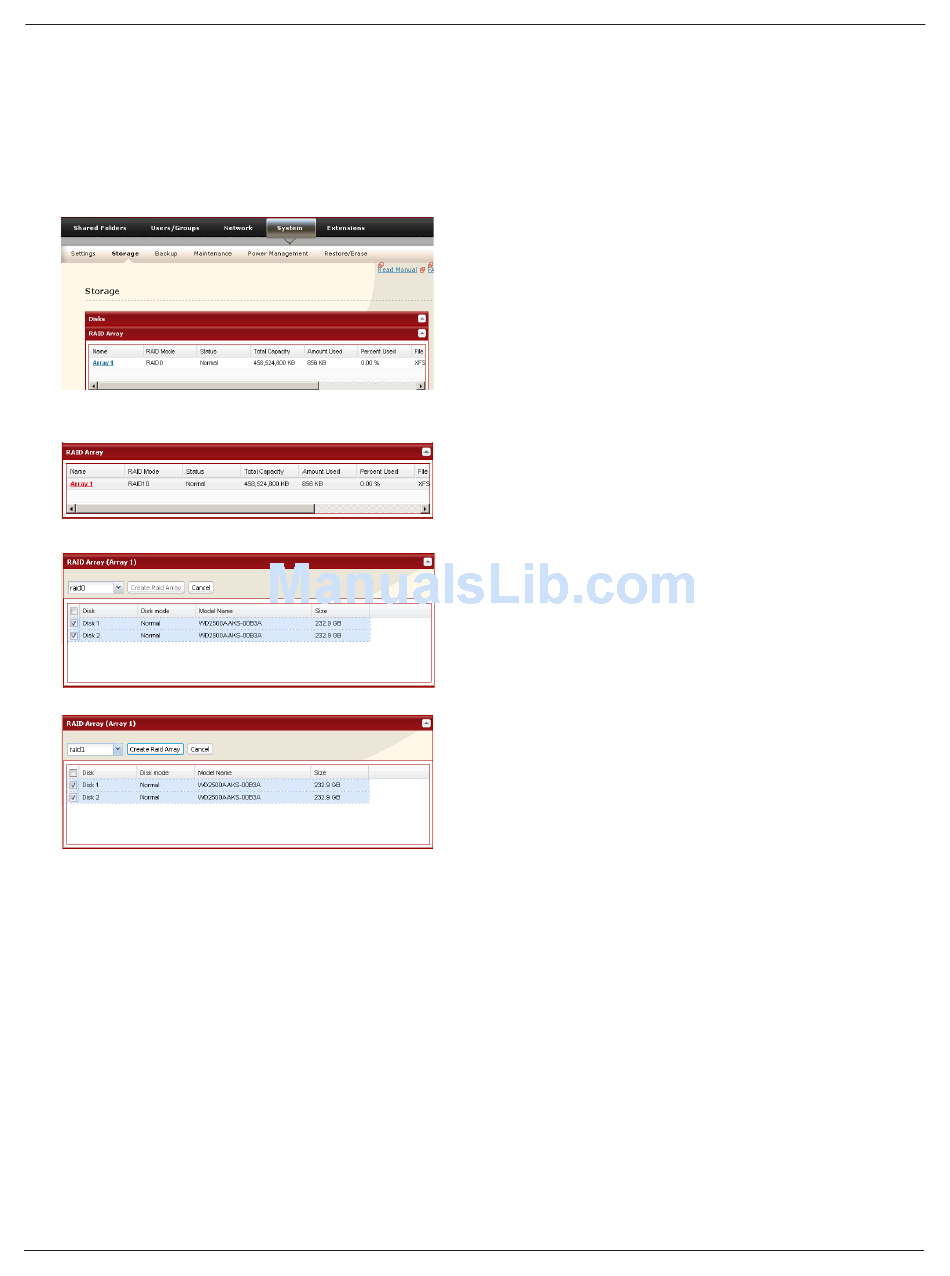

Click [System] - [Storage] - [RAID Array] in the Web
Admin interface.
Click the array you want to set.
Select hard drives to use in RAID 1.
1 Select [raid 1].
2 Click [Create Raid Array].
86
