TECNOEKA Srl ______________________________________________________________ use and instruction manual
13.

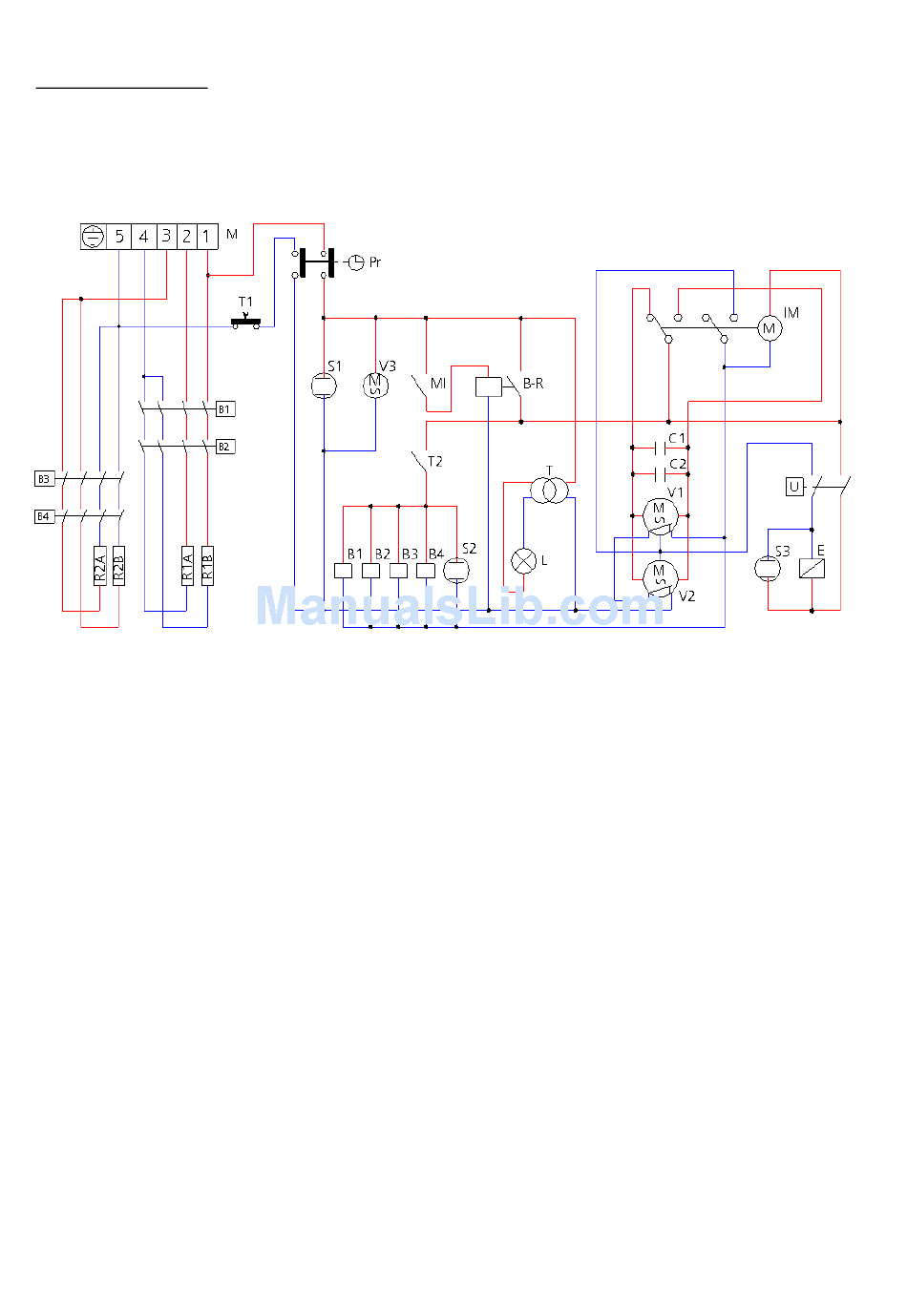

13. Wiring layout

13. 13. Wiring layout Wiring layout Wiring layout
M Power terminal board
Pr "End of cooking" programmer
T1 Safety thermostat
T2 Oven thermostat
U Automatic humidifier
S1 Programmer indicator light
S2 Thermostat indicator light
S3 Automatic humidifier indicator light
IM Operating direction reversing element
page 14 __________________________________________________________________________________________
MODELS EKF 711 UD – – – – EKF 664 UD MODELS EKF 711 UD MODELS EKF 711 UD MODELS EKF 711 UD EKF 664 UD( ( ( ( - - - - HT) EKF 664 UD EKF 664 UD HT) HT) – – – – EKF 616 UD HT) EKF 616 UD( ( ( ( - - - - HT) EKF 616 UD EKF 616 UD
Key Key Key Key
MI Door microswitch
E Solenoid-valve for automatic humidifier
B1-B2-B3-B4 Contactor coil
B-R Contactor Relais
T Transformer for oven lamp
L Oven lighting lamp
V1-V2 Radial motoventilators
V3 Tangential motorised ventilator
R1-R2 Circular heating elements
C1-C2 Capacitors
HT) HT) HT)
