Operation - Compak R-80 Instruction Manual

6.4. Installation of the coffee grinder
Before connecting the coffee grinder, check the following:
• The data on the features label coincides with those of the power supply.
• That the plug coincides with that of the wall plug. (*)
• That the electrical current is appropriate for the machine.
• That the connection point to the power supply network is protected
with appropriate fuses.
• That the equipment is properly connected to a grounded socket in
accordance with the applicable safety guidelines.
!
(*) The three-phase models come with a plug connector with a phase reversal
device in order to invert the rotation direction of the grinder, if necessary.

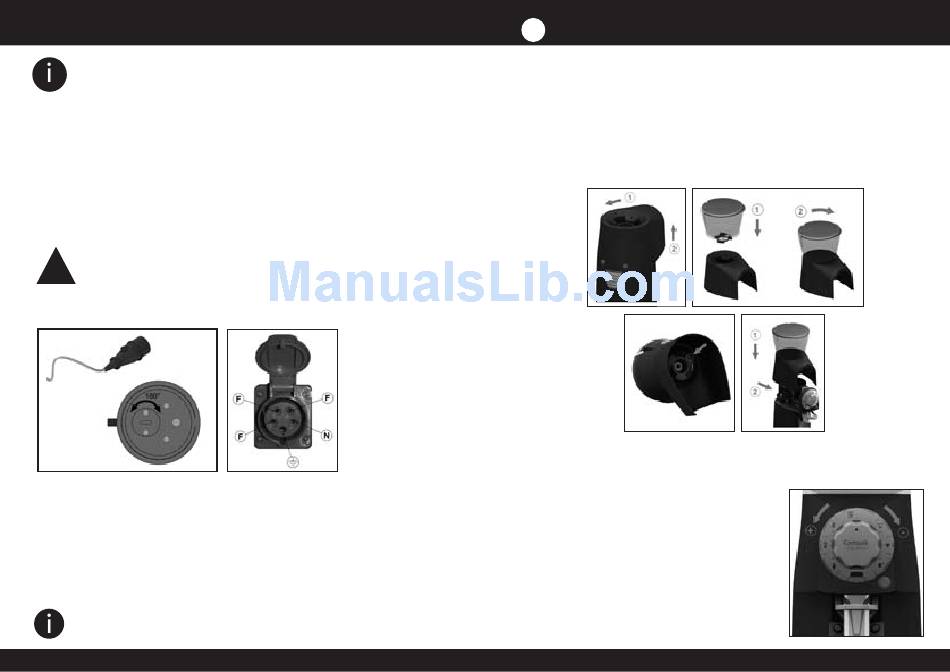

Fig. 1
In order for a correct grind, the burrs have to turn in a counter-clockwise
direction. When plugging in a three-phase grinder for the first time, check
that the burrs turn in the right direction by opening the cover and looking
into the hopper.
If the direction of the burrs is not correct, unplug the grinder and, with
the help of a flat-head screwdriver, turn the phase reversal device 180º as
soon shown in Figure 1. When you plug the grinder in again, it should turn
counter-clockwise.
The coffee grinder should be used in areas with a room temperature below 30/35ºC (86/95ºF) and should
not be installed in places (SUCH AS INDUSTRIAL KITCHENS) where cleaning with water jets is used.
Please check that the
three-phase factory insta-
llation is correct.
Make sure our socket is
EN 60529 and has 3F+N+T
and the distribution of
the connection should be
as in Figure 2.
Obtain 380V 50Hz or
220V 60 Hz between
phases (F) and 230V 50Hz
or 110V 60Hz between
Fig. 2
Phase and Neutral (F-N).
7

Operation

Prepare the hopper :
Remove the upper body (3) by unscrewing the two screws on the back-
side of the grinder. Fig. 3.
Place the hopper (2) on the upper body and make sure that the hinge of the
hopper lid (1) lines up with the backside of the grinder. Push down and turn
clockwise until the hopper clicks into place on the upper body (3). Fig. 4
Fig. 3
Fig. 5
Turn the upper body around and fix the hopper to the grinder body with
the safety screw that comes along with the grinder. Fig. 5.
Place the upper body with the attached
hopper on the lower part of the grinder
(11), line it up and move it forward. Replace
the 2 back screws. Fig. 6.
NOTE: The manufacturer cannot
accept responsibility for any damage
casued by improper use of the
machine.
Fig. 4
Fig. 6
