Advanced Menu; Cpu Configuration - Asus Terminator 2 Barebone System T2-PE1 Product Manual

5.4

Advanced menu

The Advanced menu items allow you to change the settings for the CPU
and other system devices.
Take caution when changing the settings of the Advanced menu items.
Incorrect field values can cause the system to malfunction.

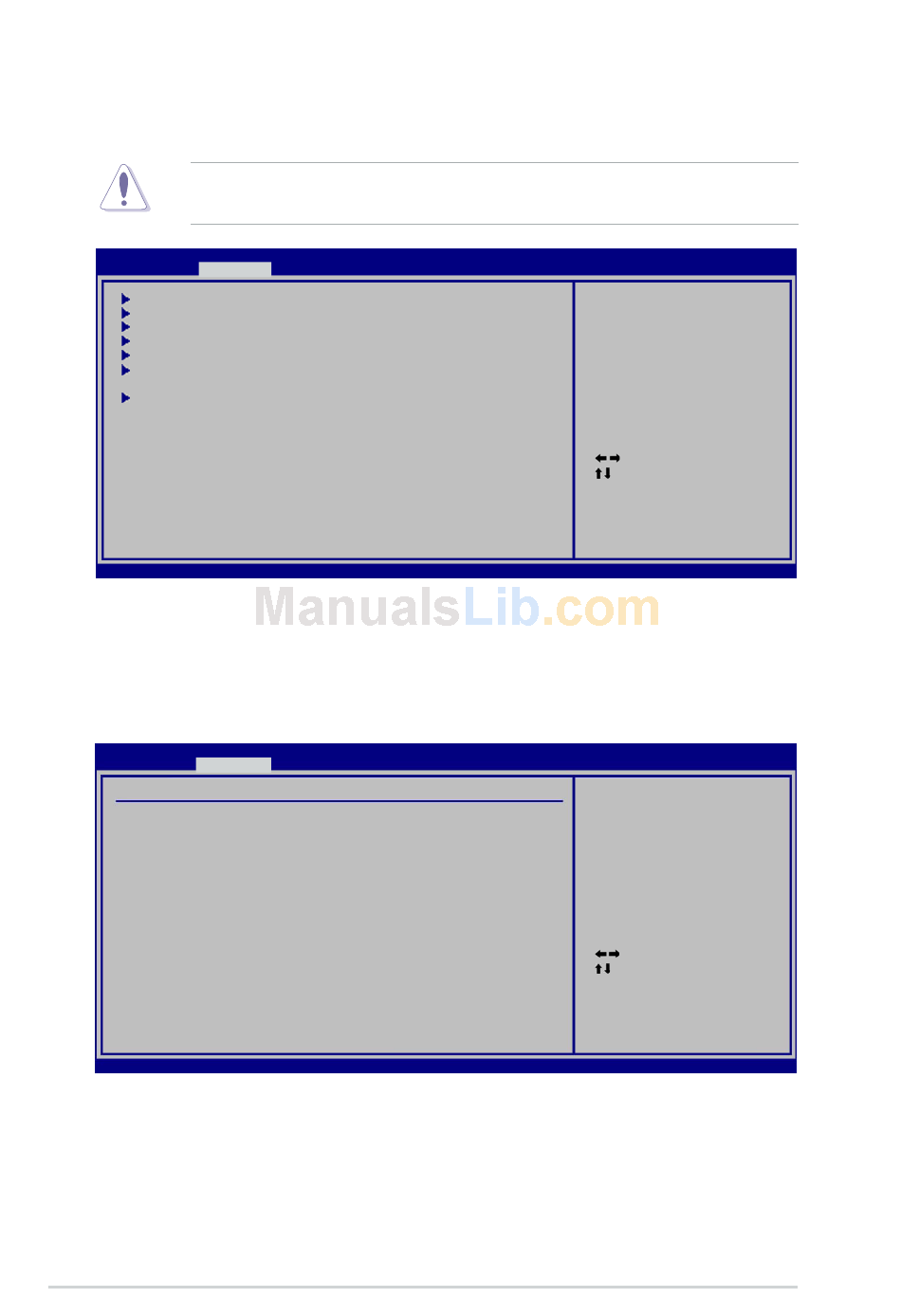

Main Advanced

CPU Configuration

Chipset
Onboard Devices Configuration
PCI PnP
Jumperfree Configuration
Instant Music Configuration
USB Configuration
v02.58 (C)Copyright 1985-2004, American Megatrends, Inc.
5.4.1 5.4.1 CPU Configuration CPU Configuration
5.4.1 5.4.1 5.4.1 CPU Configuration CPU Configuration CPU Configuration
The items in this menu show the CPU-related information that the BIOS
automatically detects.
Advanced
Configure advanced CPU Settings
Manufacturer : Intel
Brand String : Genuine Intel(R) CPU 3.20 GHz
Frequency : 3200 MHz
FSB Speed :
Cache L1 : 16 KB
Cache L2 : 1024 KB
Cache L3 : 0 KB
Ratio Status: Unlocked (Max:16, Min:14)
Ratio Actual Value : 16
Ratio CMOS Setting:
Max CPUID Value Limit:
Hardware Prefetcher:
Adjacent Cache Line Prefetch:
CPU Internal Thermal Control
HyperThreading Function
v02.58 (C)Copyright 1985-2004, American Megatrends, Inc.
Ratio CMOS Setting [ 8] Ratio CMOS Setting [ 8]
Ratio CMOS Setting [ 8] Ratio CMOS Setting [ 8] Ratio CMOS Setting [ 8]
Sets the ratio between the CPU Core Clock and the Front Side Bus
frequency. The default value of this item is auto-detected by BIOS. Use the
<+> or <-> key to adjust the values.
5 - 1 8 5 - 1 8 5 - 1 8 5 - 1 8 5 - 1 8
BIOS SETUP UTILITY
Power
BIOS SETUP UTILITY
800 MHz
[ 28]
[Disabled]
[Enabled]
[Enabled]
[Auto]
[Enabled]
Boot Exit
C h a p t e r 5 : B I O S s e t u p C h a p t e r 5 : B I O S s e t u p C h a p t e r 5 : B I O S s e t u p C h a p t e r 5 : B I O S s e t u p C h a p t e r 5 : B I O S s e t u p
Configure CPU.
Select Screen
Select Item
Enter Go to Subscreen
Tab Select Field
F1 General Help
F10 Save and Exit
Sets the ratio between
CPU Core Clock and the
FSB Frequency.
NOTE: If an invalid
ratio is set in CMOS
then actual and
setpoint values may
differ.
Select Screen
Select Item
Enter Update
F1 General Help
F10 Save and Exit
ESC Exit
