Installing a DIMM

The system motherboard comes with two Double Data Rate (DDR) Dual
Inline Memory Module (DIMM) sockets.

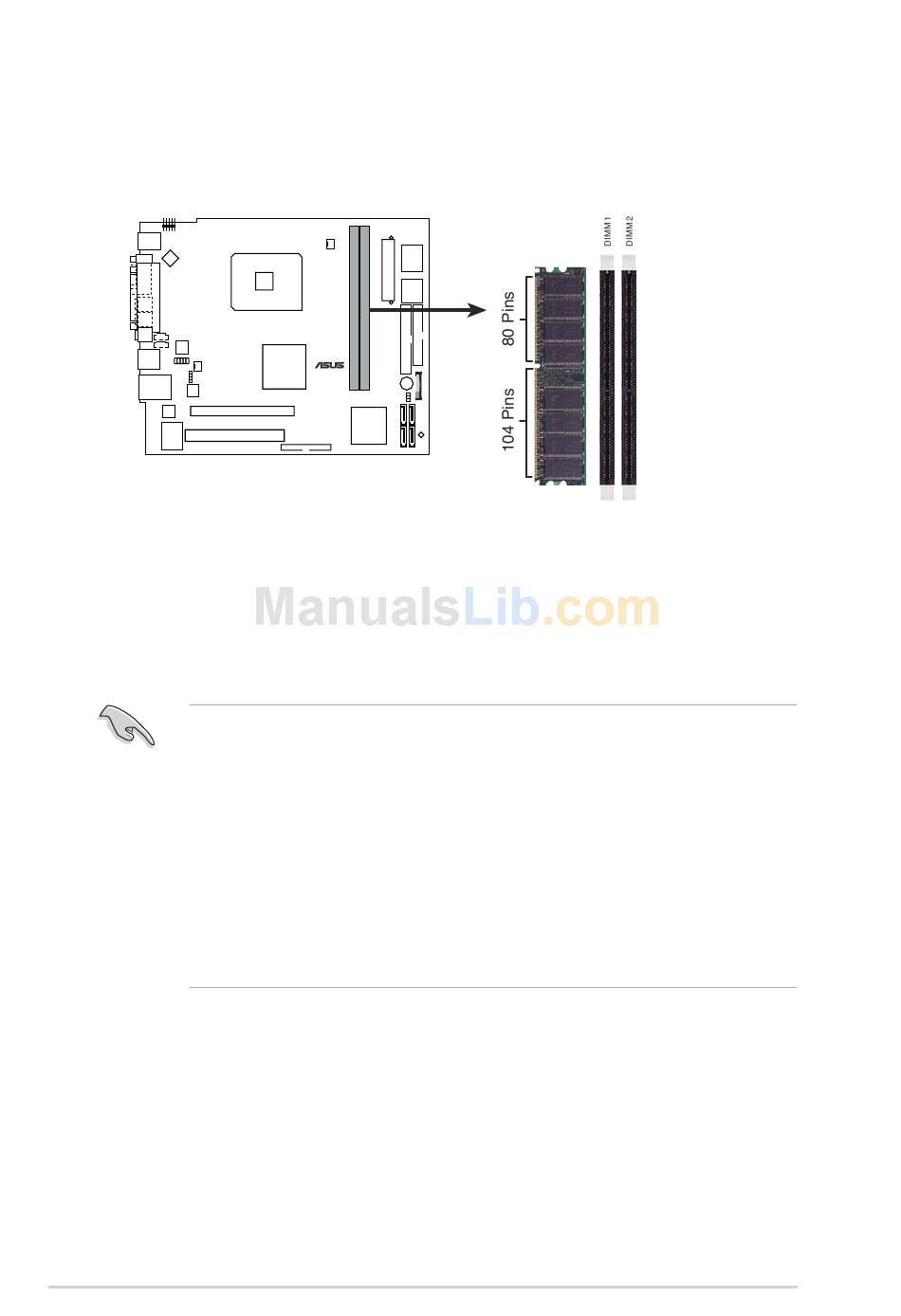

The following figure illustrates the location of the sockets:
184-pin DDR DIMM sockets
2.6.1 2.6.1 2.6.1

Memory configurations

Memory configurations Memory configurations
2.6.1 2.6.1 Memory configurations Memory configurations
You may install up to 2 GB system memory using 256 MB, 512 MB, and
1 GB DDR DIMMs.
•
•
•
•
2 - 1 0 2 - 1 0 2 - 1 0 2 - 1 0 2 - 1 0
¤
Installing DDR DIMMS other than the recommended configurations
may cause memory sizing error or system boot failure. Use any of
the recommended configurations in the table on the next page.
i d e n t i c a l i d e n t i c a l
Install only i d e n t i c a l i d e n t i c a l (the same type and size) DDR DIMM in DIMM1 i d e n t i c a l
and DIMM2.
Always install DIMMs with the same CAS latency. For optimum
compatibility, we recommend that you obtain memory modules from
the same vendor.
The total memory detected by the system depends on the onboard
VGA shared memory setting.
