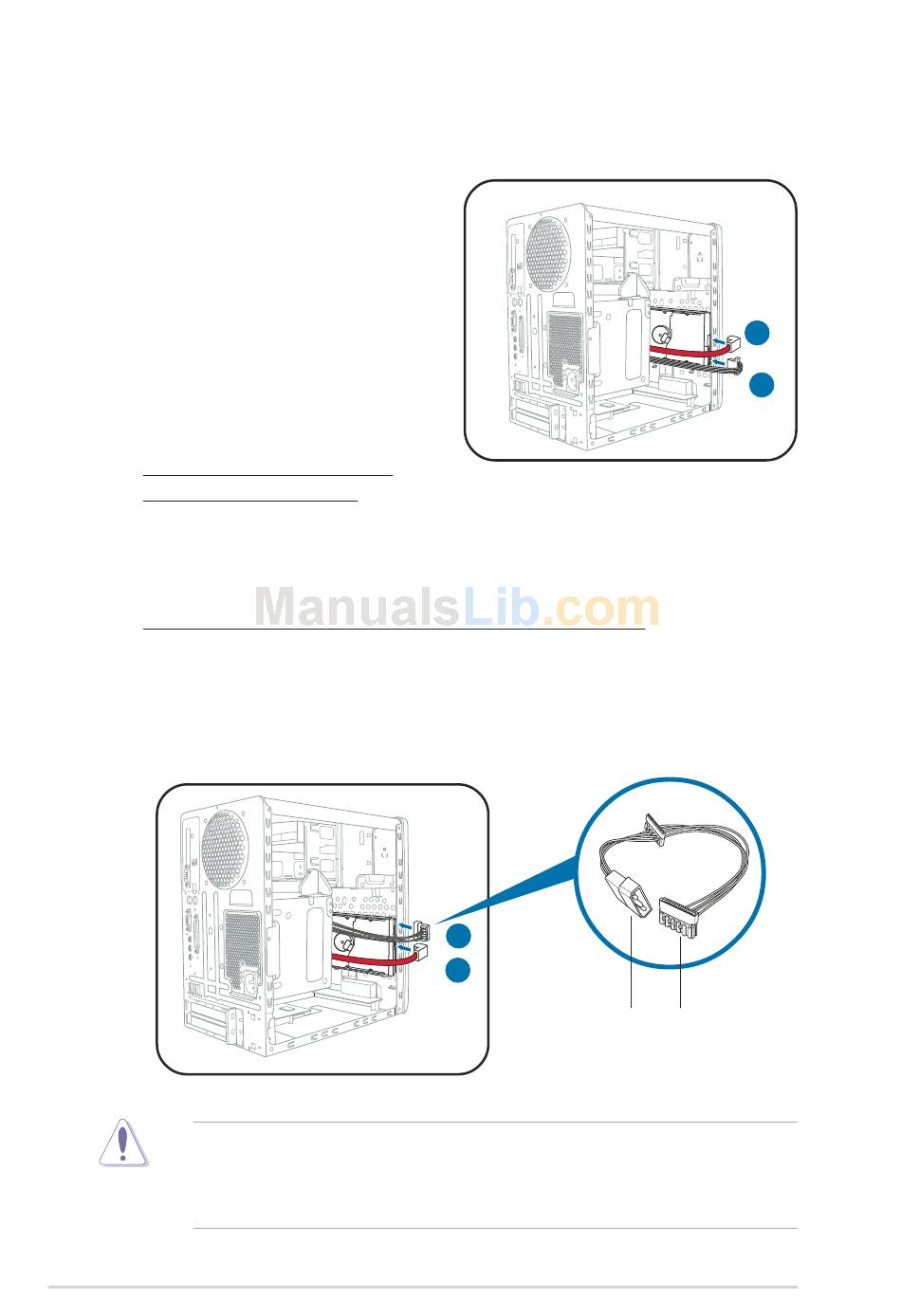

To install a Serial ATA hard disk drive:
1. Follow steps 1-7 of the previous section.
2. Connect one end of the supplied
7-pin SATA cable (right angle
side) to the SATA connector at
the back of the drive, then
connect the other end to a
SATA connector on the
motherboard. See page 4-8 for
the location of the Serial ATA
connectors.
3. For Serial ATA HDDs with a
4 - pin power connector:
a. Connect a 4-pin (female) power plug from the power supply unit
to the 4-pin (male) power connector at the back of the drive. See
page 2-25 for details on the power supply unit plugs.
For Serial ATA HDDs without a 4 - pin power connector:
b. Connect the 15-pin SATA power adapter plug to the power
connector at the back of the drive, then connect the other end
(4-pin male) to a 4-pin (female) power plug from the power
supply unit. See page 2-24 for details on the power supply unit
plugs.
If your Serial ATA HDD has both 4-pin and 15-pin connectors at the
back, use either the 15-pin SATA power adapter plug O R
4-pin power connector. D O N O T
components and to keep the system from becoming unstable.
