2.12 Replacing the cover

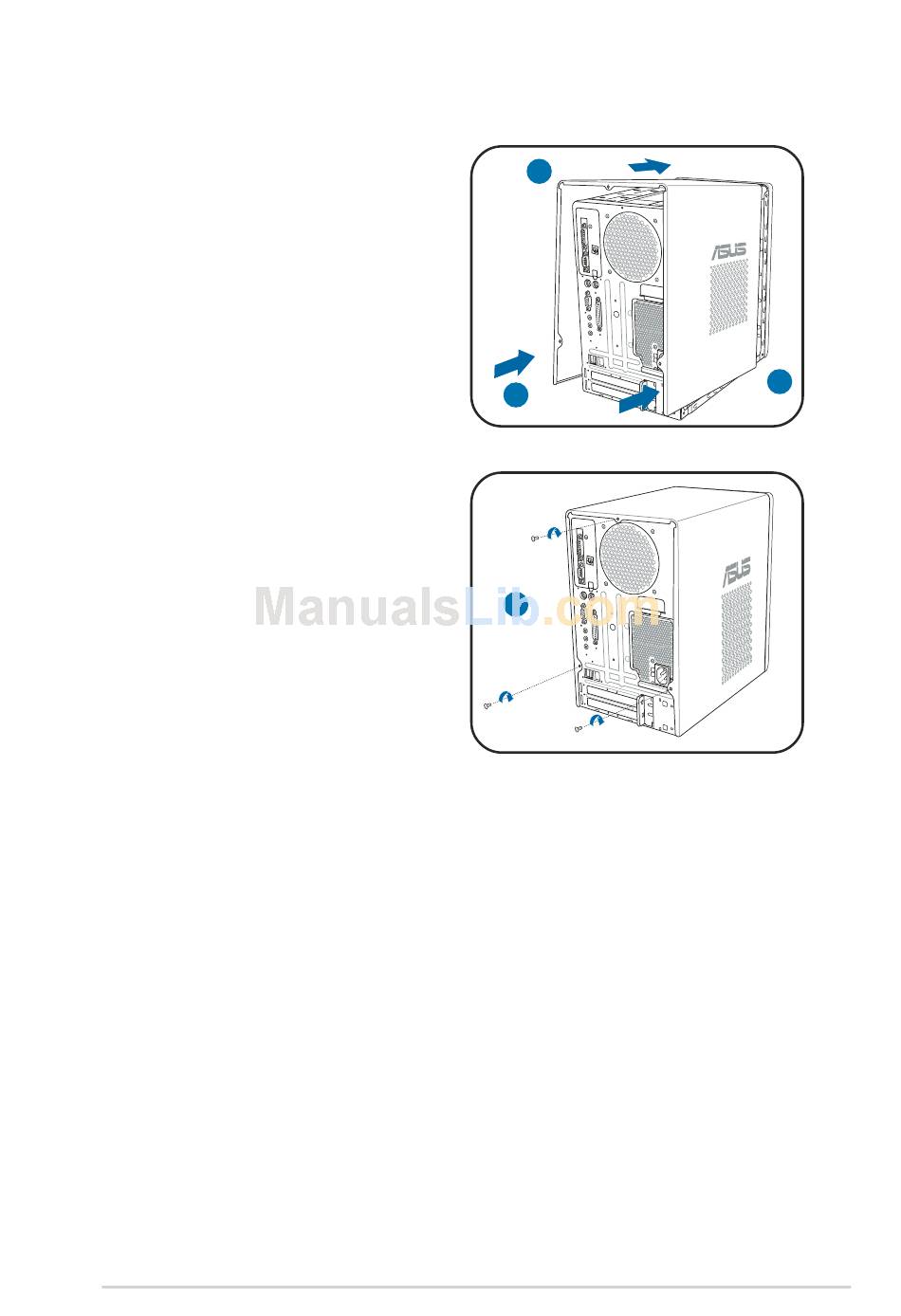

To replace the cover:
1. Turn the chassis upright.
2. Position the front edge of the
cover at least two inches from
the front panel cover. Fit the
cover tabs with the chassis rail
and the front panel tabs.
3. Lower the rear edge of the
cover as shown.
4. Push the cover slightly toward
the front panel until it fits in
place.
5. Secure the cover with the three
screws you removed earlier.
