(5) Detaching and refitting the registration left roller

Follow the procedure below to replace the registration left roller.
Procedure
1. Remove the paper conveying unit (see page
1-5-7).
2. Remove the transfer roller (see page 1-5-
27).
3. Release the stoppers at the front and rear
side, and then remove the registration left
roller from the paper conveying unit.
4. Replace the registration left roller and refit
all the removed parts.

(6) Detaching and refitting the registration cleaner

Follow the procedure below to replace the registration cleaner.
Procedure
1. Remove the drum unit (see page 1-5-23).
2. Remove the screw and then the registration
guide.
3. Remove the screw and then the registration
cleaner.
4. Replace the registration cleaner and refit all
the removed parts.

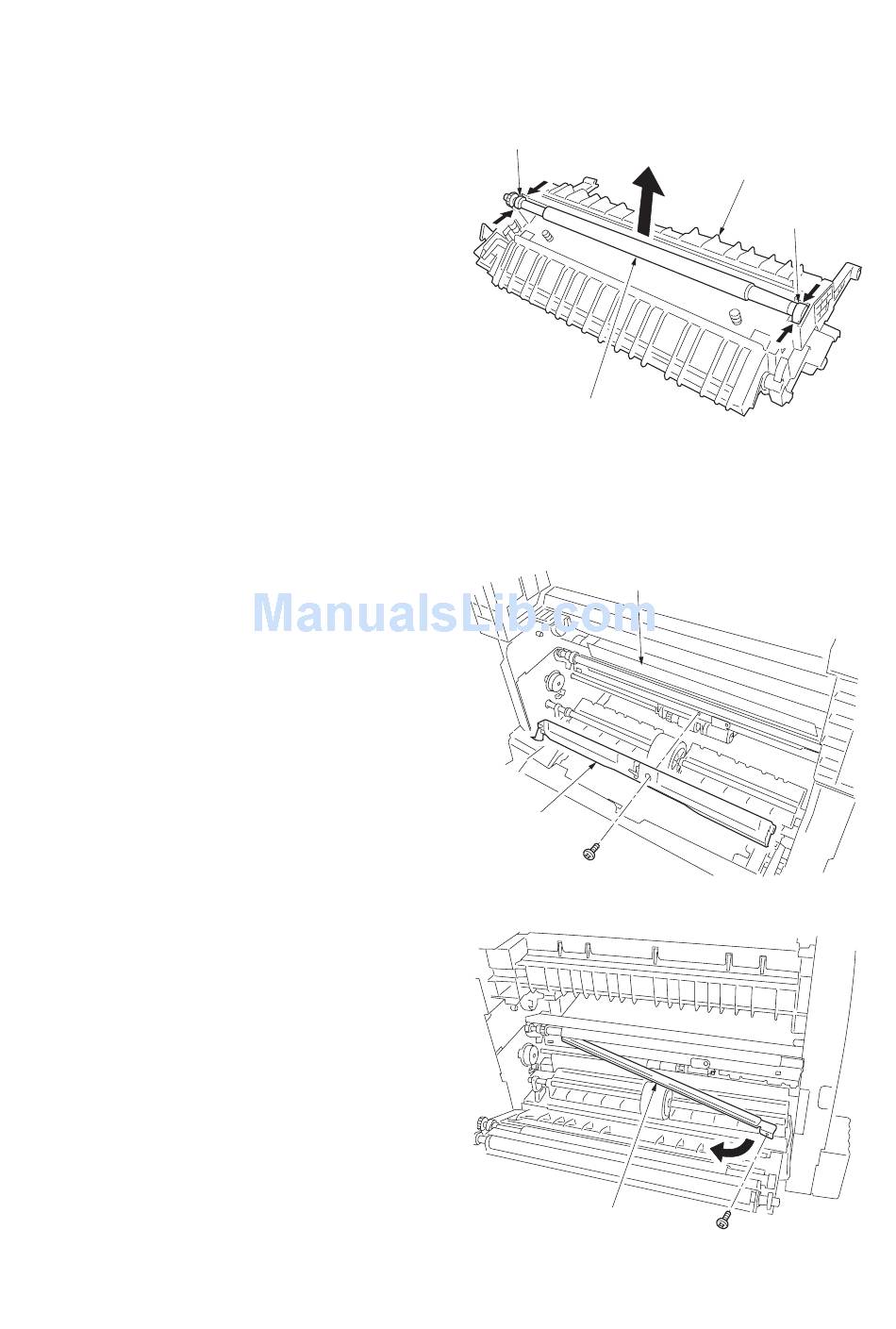

Stopper
Registration left roller
Figure 1-5-21
Trans guide film
Registration guide
Figure 1-5-22
Registration cleaner
Figure 1-5-23
2HA/2HB
Paper conveying unit
Stopper
1-5-11
